1 Introduction User Manual HS-50 1.9 Dimensions and weight of t he placement system Software Version 5.01 01/99 Issue 28 7KHSODFHPHQWV\ V WH P¶V F HQWHURIJUDY LW\ X coord inate 0 mm Y coord inate 0 mm Z …
User Manual HS-50 1 Introduction
Software Version 5.01 01/99 Issue 1.9 Dimensions and weight of the placement system
27
'LPHQVLRQVDQGZHLJKWRIWKHSODFHPH QWV\ VWHP
'LPHQVLRQVRIWKHSODFHPHQWV \ VWH P
7HFKQLFDOGDWDGLPHQVLRQVZHLJKW
420
1790 (1912,5 SMEMA)
1592
(1714,5 SMEMA)
1540
2380
3150
800
2200
2762
Length 2380 mm including conveyor belts
Width 3150 mm including brackets
Height with warning lamp 1790 mm standard height
1912.5 mm SMEMA height
Ground clearance 107 mm standard height
229.5 mm SMEMA height
Weight of basic module 2800 kg
Weight fully equipped 3500 kg
Admissible load per unit area on foundation 1000 kg/m²
Load per unit area on mounting feet 3.79 kg/cm²
1 Introduction User Manual HS-50
1.9 Dimensions and weight of the placement system Software Version 5.01 01/99 Issue
28

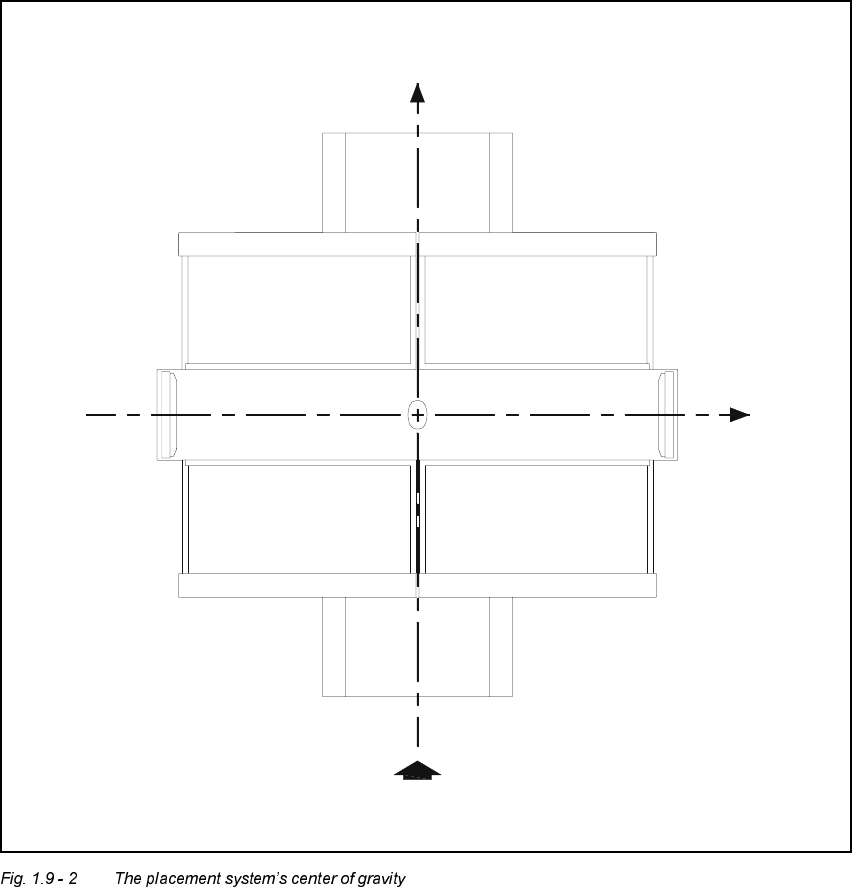

7KHSODFHPHQWV\ V WH P¶VF HQWHURIJUDYLW\
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 350 mm high
T PCB transport direction
These center of gravity coordinates relate to placement systems with a PCB transport height
of 830 mm.
X
Y
T
(0, 0, 350)
User Manual HS-50 1 Introduction
Software Version 5.01 01/99 Issue 1.10 Setting up the placement system
29
6HWWLQJXSWKHSODFHPHQWV\VWH P
7UD QVSRUWGLPHQVLRQV
The placement system mounting kit (A) on the input side can be dismantled for transportation
purposes, which will reduce the width of the machine from 2380 mm to 1960 mm.
A Mounting kit which can be dismantled for transportation purposes.
B Points for attaching the fork-lift truck (fork length 2500 mm)
The PCB conveyor height is 830 mm ± 15 mm (or 952.5 mm ± 15 mm in accordance with the
SMEMA standard). The height specifications for the machine will change accordingly.
420
1790 (1912,5 SMEMA)
1592
(1714,5 SMEMA)
1960
2380
800
A
B
B
830±15
(952,5 ± 15 SMEMA)
