10 Component handling User M anual HS-50 10.2 Technical data for the feeder modules Software-Version 5.01 01/99 Issue 364 PP6PRGXOH Item no. 00141093- xx Width 45 mm T rac ks per module 1 Maximum number…
User Manual HS-50 10 Component handling
Software-Version 5.0101/99 Issue 10.2 Technical data for the feeder modules
363

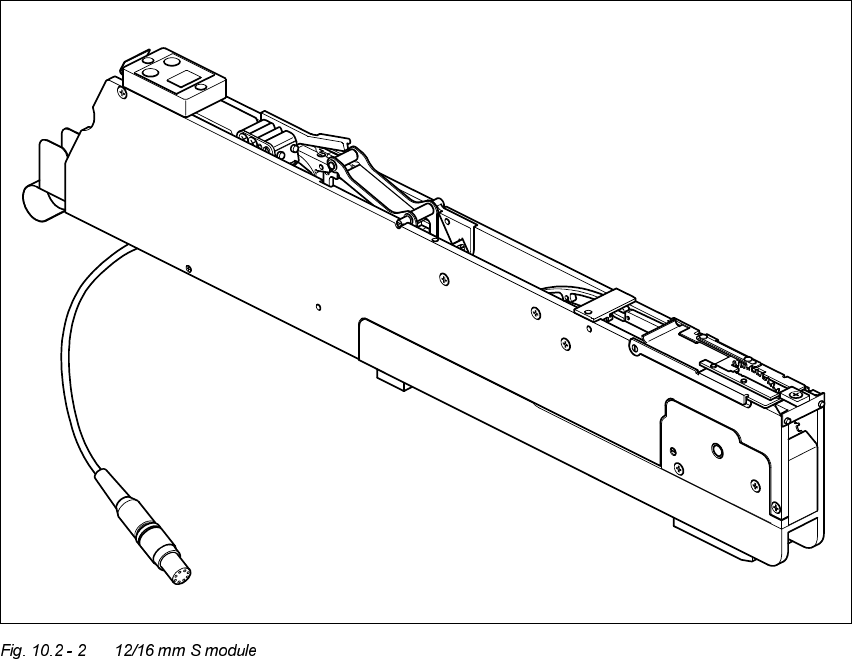

PP6PRGXOH
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
10 Component handling User Manual HS-50
10.2 Technical data for the feeder modules Software-Version 5.01 01/99 Issue
364

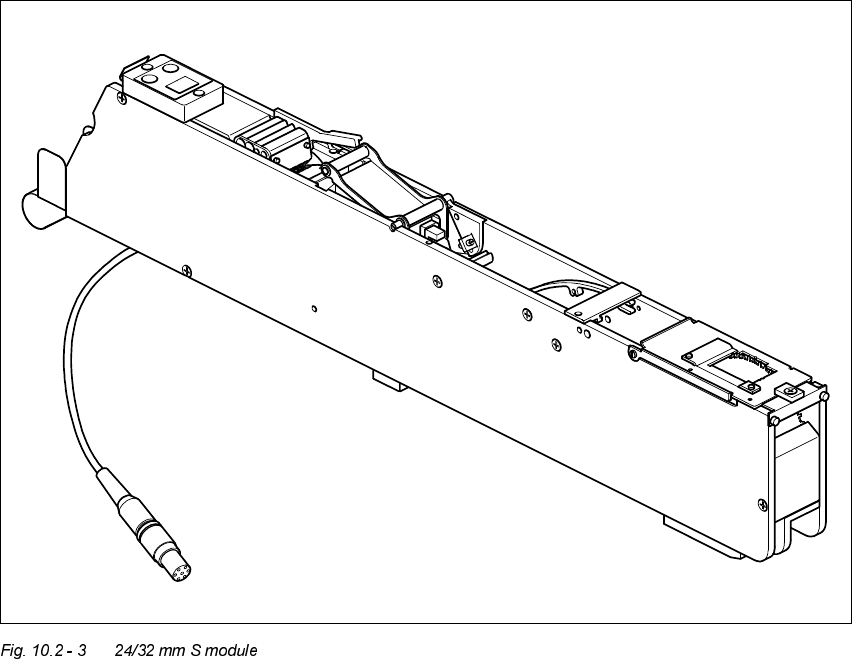

PP6PRGXOH
Item no. 00141093-xx
Width 45 mm
Tracks per module 1
Maximum number of modules 4 x 8
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC
User Manual HS-50 10 Component handling
Software-Version 5.0101/99 Issue 10.2 Technical data for the feeder modules
365

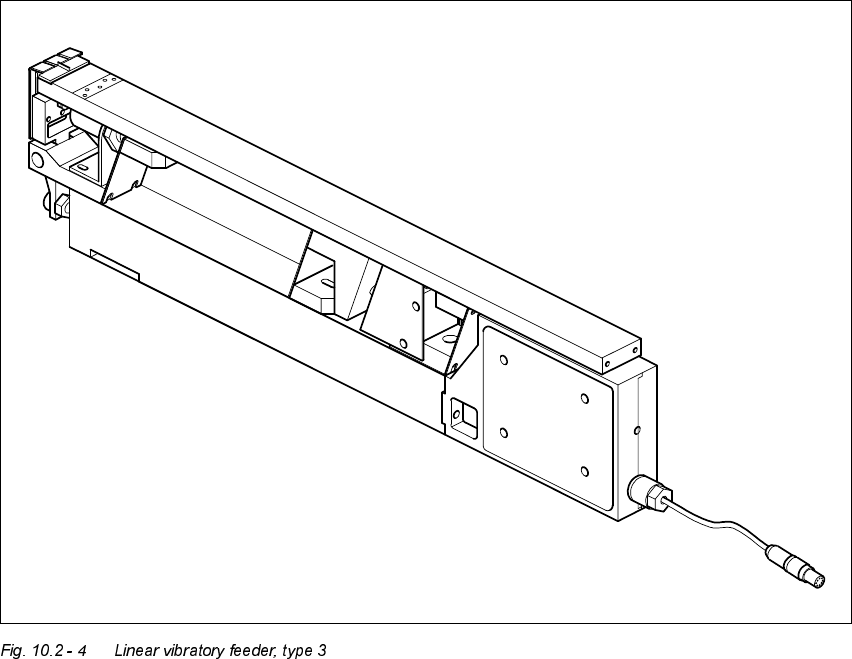

/LQHDUYLEUDWRU\IHHGHUW\SH
Item no. 00142031-xx
Width 30 mm
Tracks per module 1, 2, 3 or 6
Maximum number of modules 4 x 12
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC
