User Manual HS-50 11 Station extensions / options Software Vers ion 5.0101/99 Issue 11.2 Component barcode 385 &RPSRQHQWEDUFRGH *HQHUDO With the HS-50 placement system, a barcode re ader can be used t…
11 Station extensions / options User Manual HS-50
11.1 HS-50 nozzle changer Software Version 5.01 01/99 Issue
384

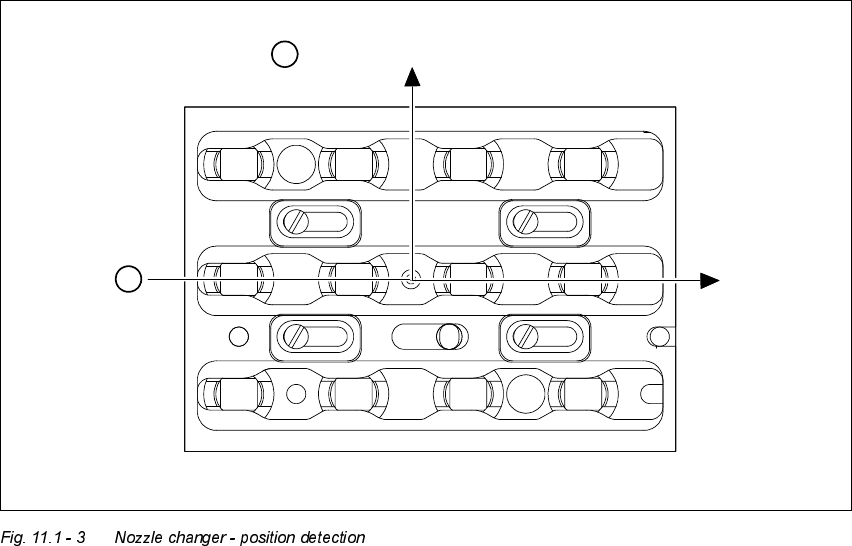

3RVLWLRQGHWHFWLRQ
There is a position detection fiducial on every magazine.
.H\WR)LJ
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
Å See section 5 "Vision functions" for the use of fiducials.
12 3
4
5
6
7
8
91011
12
Y
X
1
2
User Manual HS-50 11 Station extensions / options
Software Version 5.0101/99 Issue 11.2 Component barcode
385
&RPSRQHQWEDUFRGH
*HQHUDO
With the HS-50 placement system, a barcode reader can be used to check that the track allocation
is correct and to read component data from component reels. A barcode reader is attached to both
of the operating panels on the placement system.
.H\WR)LJ
(1) Barcode reader
(2) Operating panel, right
(3) Operating panel, left
T PCB transport direction
1
3
2
1
T
11 Station extensions / options User Manual HS-50
11.2 Component barcode Software Version 5.01 01/99 Issue
386
7UDFNDOORFDWLRQ
Four-digit barcode strips are attached to the lateral safety screens for the purposes of track allo-
cation. The first digit is used to identify the component table (1, 2, 3 or 4), while the remaining three
digits specify the track number. There are also return barcodes at both ends of the barcode strip.
The barcode strips are numbered consecutively in intervals of two (1, 3, 5, 7...) and each repre-
sents 2 tracks (barcode 1 = track 1 and 2).
&RPSRQHQWV
Data can be read from the component reels to compare the stock of components against the quan-
tity specified in the set-up file (refill check), for example.
An audible signal is given when each dataset has been read successfully.
PLEASE NOTE
The component barcode reader option must be configured on the line computer.
Barcodes that start with the number 1, 2, 3 or 4 and are four digits long are interpreted as track
barcodes. All other barcodes that do not start with number 1, 2, 3 or 4 are regarded as component
barcodes.
