11 Station extensions / options User Manual HS -50 11.2 Component barcode Software Version 5.01 01/99 I ssue 386 7UDFNDOORF DWLRQ Four-dig it barco de stri ps are attached to the lateral safet y screens fo r t he pur…
User Manual HS-50 11 Station extensions / options
Software Version 5.0101/99 Issue 11.2 Component barcode
385
&RPSRQHQWEDUFRGH
*HQHUDO
With the HS-50 placement system, a barcode reader can be used to check that the track allocation
is correct and to read component data from component reels. A barcode reader is attached to both
of the operating panels on the placement system.

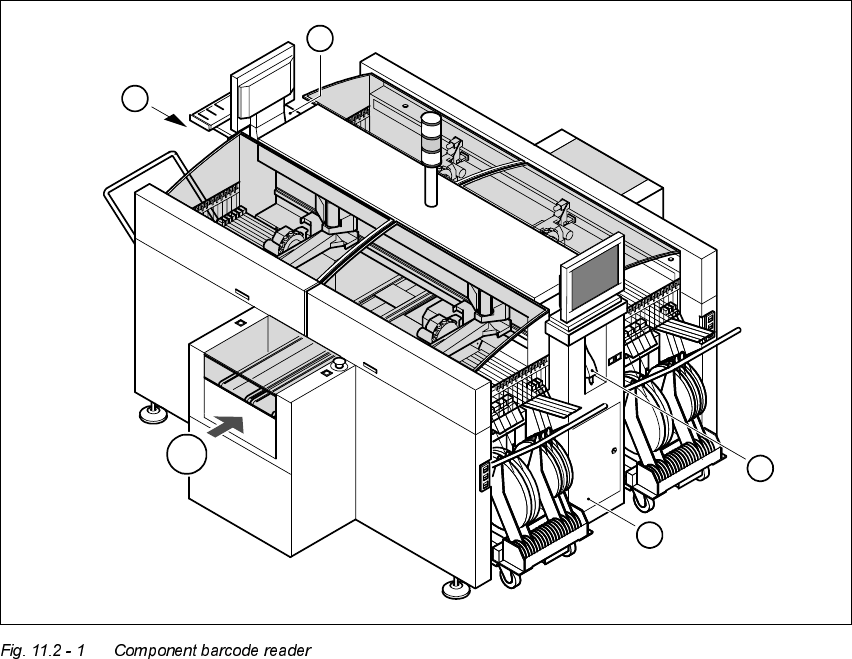

.H\WR)LJ
(1) Barcode reader
(2) Operating panel, right
(3) Operating panel, left
T PCB transport direction
1
3
2
1
T
11 Station extensions / options User Manual HS-50
11.2 Component barcode Software Version 5.01 01/99 Issue
386
7UDFNDOORFDWLRQ
Four-digit barcode strips are attached to the lateral safety screens for the purposes of track allo-
cation. The first digit is used to identify the component table (1, 2, 3 or 4), while the remaining three
digits specify the track number. There are also return barcodes at both ends of the barcode strip.
The barcode strips are numbered consecutively in intervals of two (1, 3, 5, 7...) and each repre-
sents 2 tracks (barcode 1 = track 1 and 2).
&RPSRQHQWV
Data can be read from the component reels to compare the stock of components against the quan-
tity specified in the set-up file (refill check), for example.
An audible signal is given when each dataset has been read successfully.
PLEASE NOTE
The component barcode reader option must be configured on the line computer.
Barcodes that start with the number 1, 2, 3 or 4 and are four digits long are interpreted as track
barcodes. All other barcodes that do not start with number 1, 2, 3 or 4 are regarded as component
barcodes.
User Manual HS-50 11 Station extensions / options
Software Version 5.0101/99 Issue 11.2 Component barcode
387
1RWHVRQRSHUDWLRQ
– The barcode reader must connected.
– The barcode for each component must entered on the line computer.
Å To do this, select the "Set-up check with barcode" function from the 0DFKLQHRSWLRQV menu.
PLEASE NOTE:
If one of the digits of the barcode has been assigned to a filter (i.e. a star *), this digit will not be
evaluated. This enables data contained in the barcode, such as the date or company name, to be
skipped.
– If the component barcode has been activated on the line computer and "Set-up check with bar-
code" has been selected from the machine options on the station, the "Fill location" and "Fill
track with barcode" functions cannot be used manually.
– If there are tracks with components without a barcode, then a manual "Fill" is possible, even if
the refill check has been activated.
