12 Station Extensions - Software User’s Manual SIPLACE HS-50
12.2 GEM Interface Software Version SR.501.xx Edition 01/99
416
/RDGLQJSODF HPHQWSURJUDPV

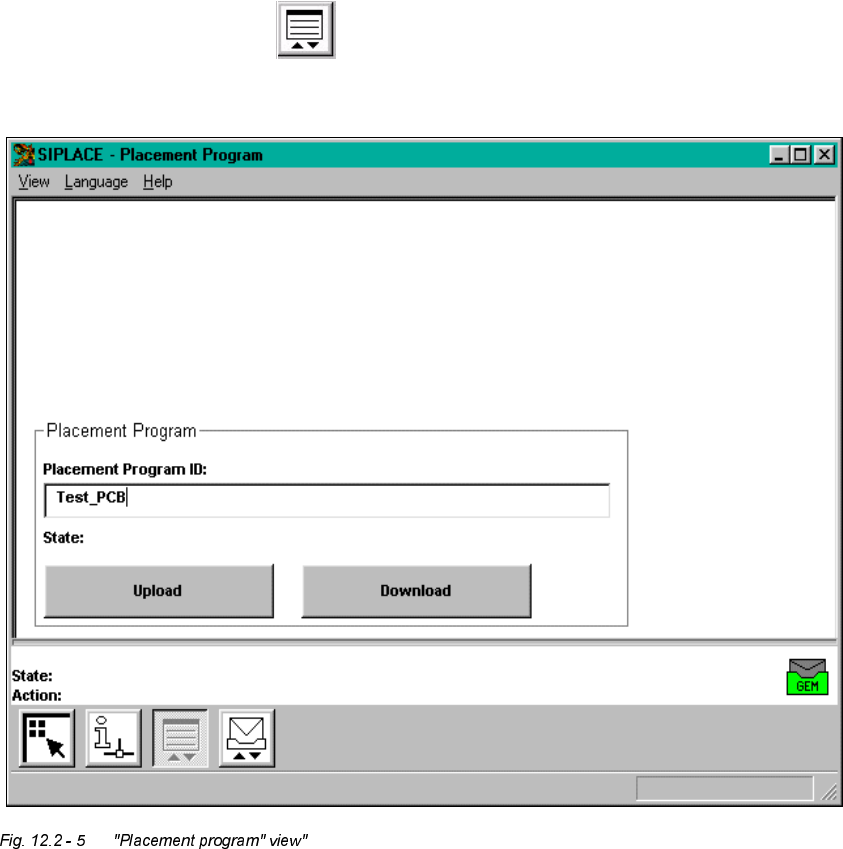

Å In the "State" view, click the button.
The user interface switches to the following view.
You can use the buttons in the display area to perform the following actions:
– 8SORDG
The placement program whose name is entered in the text box is uploaded from the station
computer to the host computer.
– 'RZQORDG
The placement program whose name is entered in the text box is downloaded from the host
computer to the station computer.
User’s Manual SIPLACE HS-50 12 Station Extensions - Software
Software Version SR.501.xx Edition 01/99 12.2 GEM Interface
417
NOTE
Depending on the selected action, the corresponding placement program must be available
at the station computer or the host computer.
To download a placement program, the control mode must be set to "GEM Host" (see section
12.2.2.1).
Å Enter the name of the required placement program in the box "Placement Program ID:".
Å Click the corresponding button to "upload" or "download" the corresponding placement
program.
The action is performed and the current status of the action is displayed above the buttons.
12 Station Extensions - Software User’s Manual SIPLACE HS-50
12.2 GEM Interface Software Version SR.501.xx Edition 01/99
418
0HVVDJHV

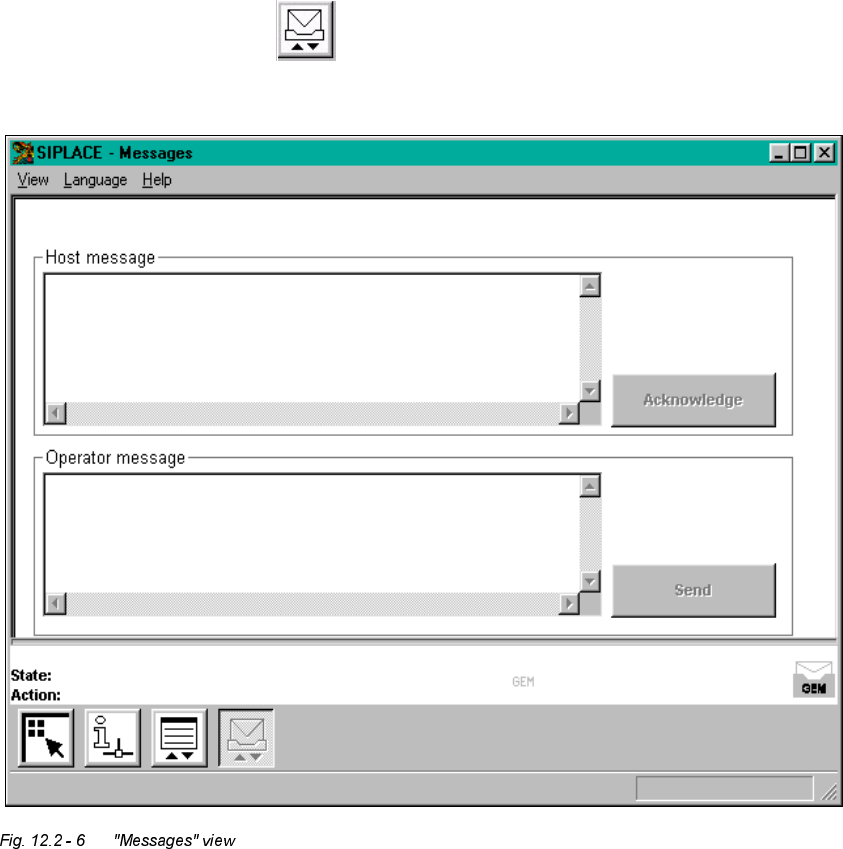

Å In the "State" view, click the button.
The user interface switches to the following view.
The display area is subdivided into separate fields which contain the tools necessary to per-
form the actions described below.
