2 Operational Safety User Manual HS-50 2.2 Safety equipment Software-Version 5.01 Edition 01/99 60 *XDUGRQWKHLQSXW RXWSXWEHOW DANGER The guard mu st always be set to the hei ght of the PCB to be pro- cessed. E…
User Manual HS-50 2 Operational Safety
Software-Version 5.01Edition 01/99 2.2 Safety equipment
59
)XQF WLRQ
If one of the protective covers is folded up or one of the covers on the PCB conveyor is raised, the
power supply to the gantry axes will be interrupted immediately. The gantry axes will stop and the
message "Close the cover" will appear on screen.
Å Close the protective covers and press one of the Start buttons to continue placement.

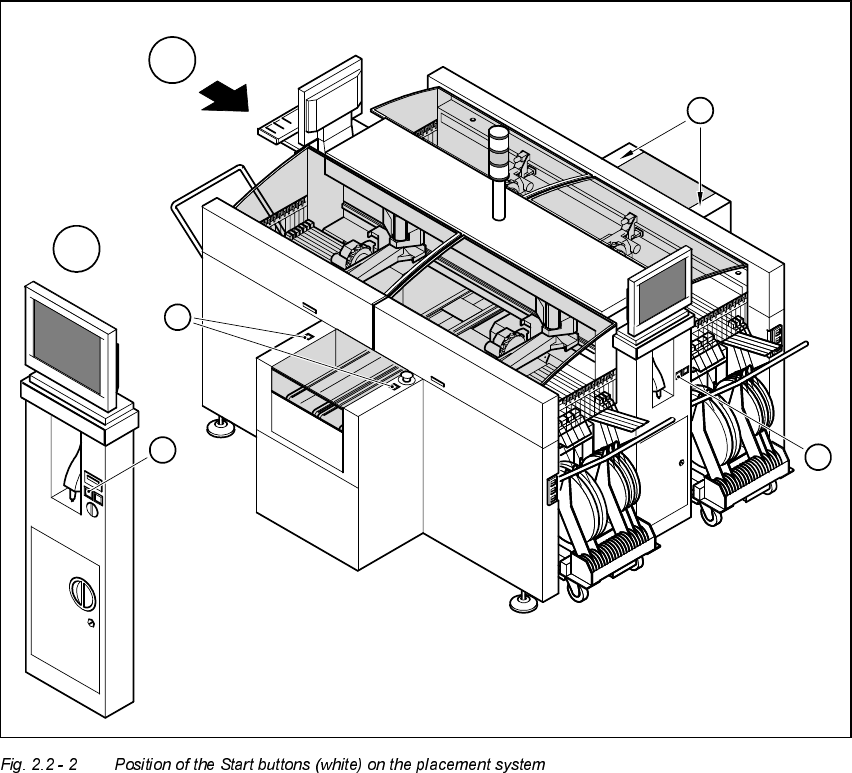

1. Start buttons (white) on the placement system
A
A
1
1
1
1
2 Operational Safety User Manual HS-50
2.2 Safety equipment Software-Version 5.01 Edition 01/99
60
*XDUGRQWKHLQSXW RXWSXWEHOW

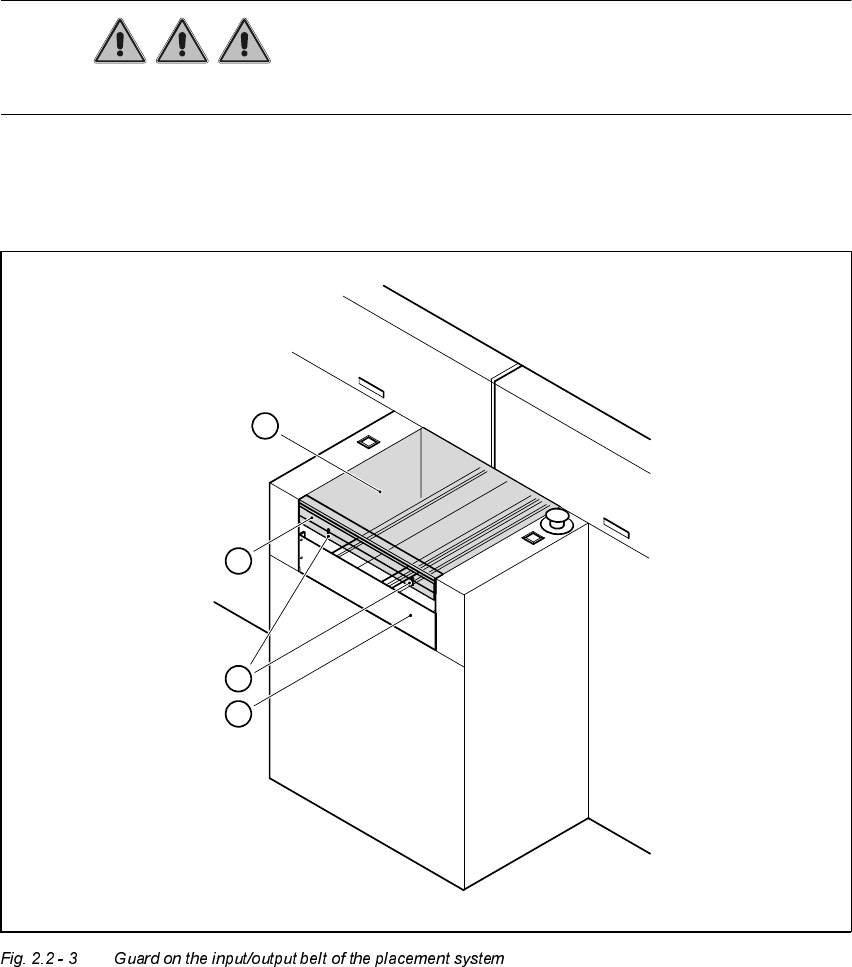

DANGER The guard must always be set to the height of the PCB to be pro-
cessed. Ensure that the gap between the guard and the safety bar is as small as possible.
Guards are fitted on the input and output belts of the PCB conveyor.
Å Set the height of the guard using the slots so that the PCB can pass through.
1. Safety bar (fixed)
2. Guard (adjustable)
3. Slots for adjusting the height
4. Cover
4
3
1
2
User Manual HS-50 2 Operational Safety
Software-Version 5.01Edition 01/99 2.2 Safety equipment
61
0DLQVZLWFKHPHUJHQF\VWRSPXVKURRPKHDGSXVKEXWWRQVSURWHFWLY H
FRYHUVZLWF KH V

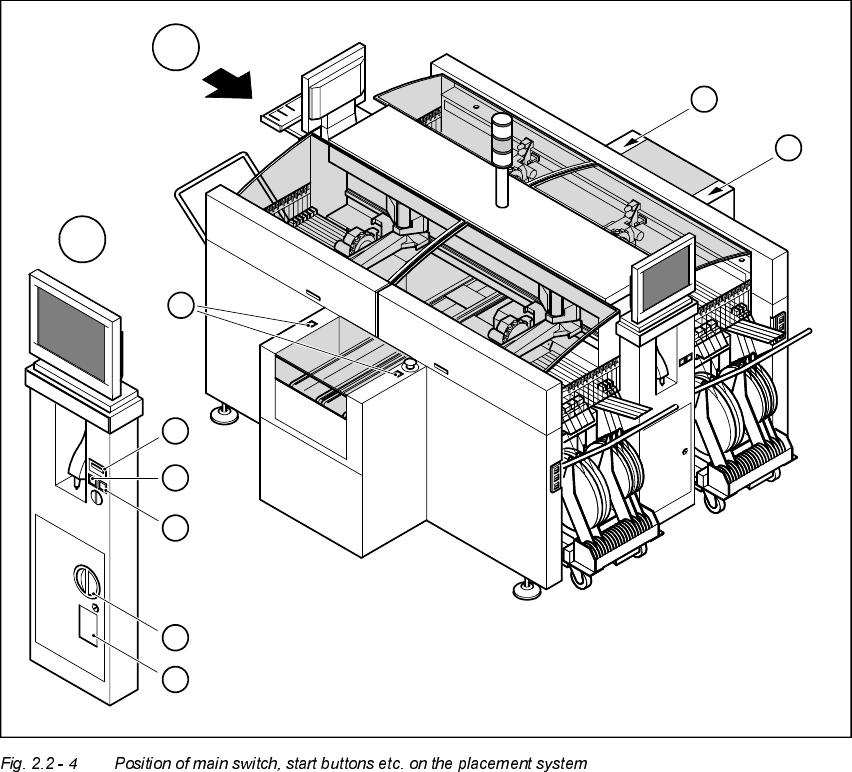

3RVLWLRQRIPDLQVZLWFKVWDUWEXWWRQVHWFRQWKHSODFHPHQWV\VWHP
1. Main switch
2. Stop buttons (black)
3. Start buttons (white)
4. Component counter
5. Service socket in the power supply unit behind the safety doors
3
3
A
A
1
3
4
2
5
3
