2 Operational Safety User Manual HS-50
2.2 Safety equipment Software-Version 5.01 Edition 01/99
62

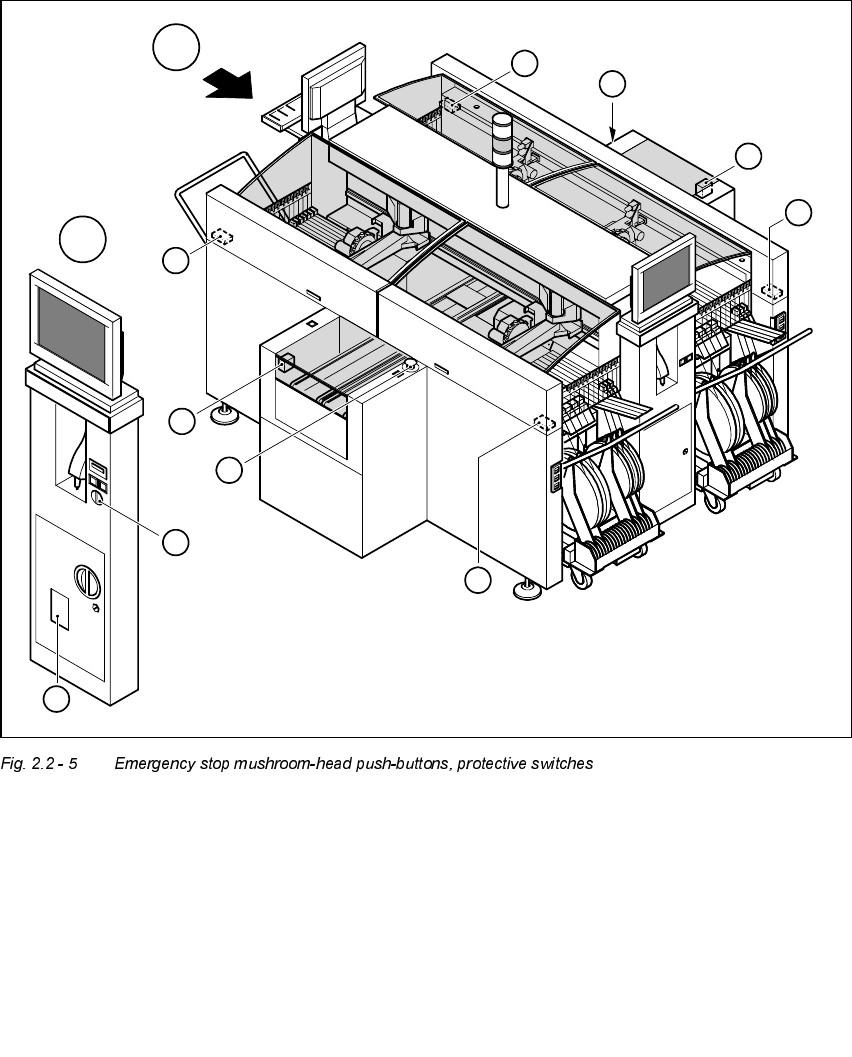

 3RV LWLRQRIHPHUJHQF\VWRSPXVKU RRPKHDGSXVKEXWWRQVSURWHFWLYHVZLWFKHV
HWF RQWKHSO DFHPHQWV\VWHP
1. Emergency-stop buttons
2. Protective cover switches
3. Cover switches over the PCB conveyors
4. Protective contactor combination (PCC) in the power supply unit behind the safety doors
5. Key switch
Key switch opened: position 0 for normal mode
Key switch closed: position I for service purposes
1
1
A
A
4
3
3
2
5
2
2
2
User Manual HS-50 2 Operational Safety
Software-Version 5.01Edition 01/99 2.2 Safety equipment
63

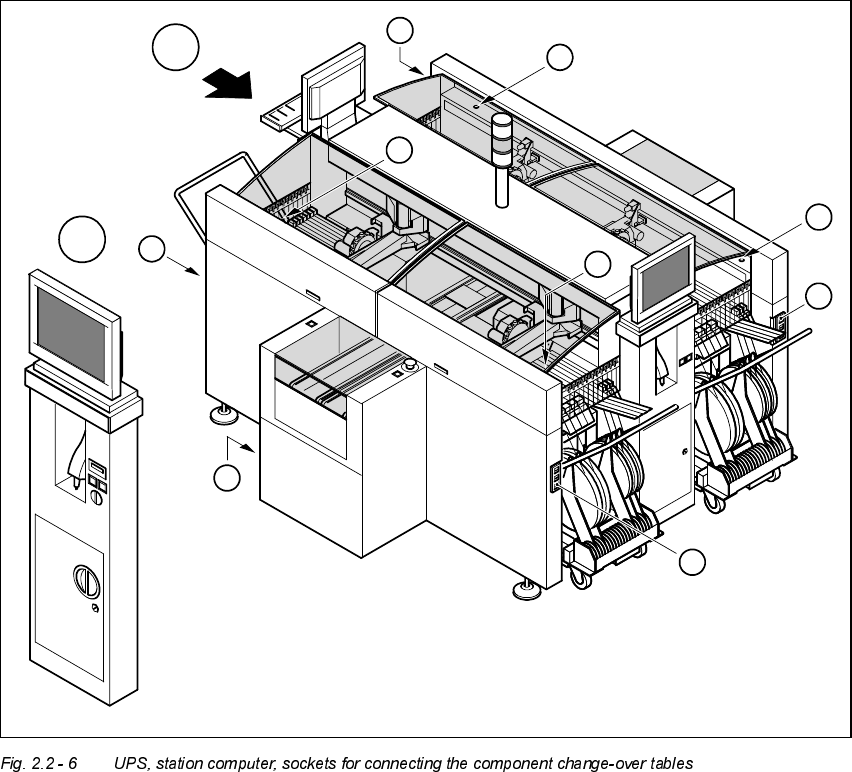

 3RVLWLRQRI836VWDWLRQFRPSXWHUDQGVRFNHWVIRUFRQQHFWLQJWKHFRPSRQHQW
FKDQJHRYHUWDEOHVWRWKHSODFHPHQWV\VWHP
1. Socket for connecting the component change-over tables
2. Push-button for raising the component change-over tables with flap down and protective switch
3. UPS and station computer
A
A
1
1
1
1
2
2
2
2
3
2 Operational Safety User Manual HS-50
2.2 Safety equipment Software-Version 5.01 Edition 01/99
64
 )XQFWLRQDOGHVFULSWLRQ
0DLQVZLWFKLQWKH2))SRVLWLRQVHH LWHPLQ)LJ 
The main switch disconnects the three phases L1, L2 and L3 from the power supply.
DANGER
The following components still carry potentially lethal voltages even if the main switch is switched
off:
– cable connection terminals 1, 3, and 5 of S1 main switch
– Z1 main power filter
– BU1 service socket
– F1 automatic circuit breaker for the service socket
– The color of all individual wires, which still carry potentially lethal voltages even if the main
switch is switched off is brown.
– The uninterruptible power supply and the station computer may also still carry potentially lethal
voltages when the main switch is switched off.
Å Incorrect handling of the placement system can therefore result in death or severe injury or
considerable damage to equipment.
Å Always follow the applicable accident prevention and DIN regulations (particularly DIN EN
60 204, part 1) or the regulations specific to your country.
Å The safety doors to the power supply unit must only be opened by appropriately qualified and
trained personnel.
0DLQVZLWFKLQWKH21SRVLWLRQ
After switching on at the main switch, start the station computer and machine controller. All supply
voltages, apart from the link voltages for the gantry axes (200 V) and star axes (100 V), are then
available.
6WRSEXWWRQEODFNLWHPLQ)LJ
These buttons are used to stop the placement system.
