2 Operational Safety User Manual HS-50 2.4 Disabling the compressed air supply and releasing the pressure Software-Version 5.01 Edition 01/99 74 W A RNING NEVER detach compres sed air l ines whil e they are sti ll …
User Manual HS-50 2 Operational Safety
Software-Version 5.01Edition 01/99 2.4 Disabling the compressed air supply and releasing the pressure
73
5HVLGXDOYROWDJHVDQGGLVFKDUJHWLPHVDIWHUVZLWFKLQJRIIDWWKHPDLQVZLWFK
CAUTION The following conditions must be fulfilled before switching off the placement
system (apart from in emergencies) in order to avoid the loss of data:
– the placement system must have stopped transmitting machine, set-up and cluster data.
– the placement system must have stopped processing the PCBs.
– the placement system must have completed the start-up phase.
– the Windows NT operating system must have been shut down correctly.
'LVDEOLQJWKHFRPSUHVVHGDLUVXSSO\DQGUHOHDVLQJ
WKHSUHVVXUH
The compressed air operating pressure is permanently set to 5.3 bar. The position of the com-
pressed air unit is indicated by item 4 in the diagram. The compressed air supply to the placement
system may be interrupted using the shut-off valve (item 1 in the diagram).
Å Open the safety doors.
Å Turn the lever of the shut-off valve (item 1 in the diagram) from the vertical to the horizontal
position.
Å Check the operating pressure gauge and the pressure gauge for the compressed air supply to
the stopper (items 2 and 3 the diagram). When the placement system is switched on, the pres-
sure drops to 0 bar within 1 minute.
CAUTION When the machine is switched on, do not use the stop valve to interrupt the
compressed air supply for more than 30 minutes. If you need to shut off the pneumatic system for
longer in order to carry out maintenance or servicing work, you must switch the placement system
off at the main switch and disconnect it from the power supply.
7HVWVRFNHWV;;;
PHDVXUHGWR;*1'
5HVLGXDOYROWDJHZKHQPDLQ
VZLWFKLVVZLWFKHGRII 'LVFKDUJHWLPHV
X2 < 10 VDC < 2 sec
X3 < 10 VDC < 50 sec
X4 < 10 VDC < 7 sec
2 Operational Safety User Manual HS-50
2.4 Disabling the compressed air supply and releasing the pressure Software-Version 5.01 Edition 01/99
74
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury.

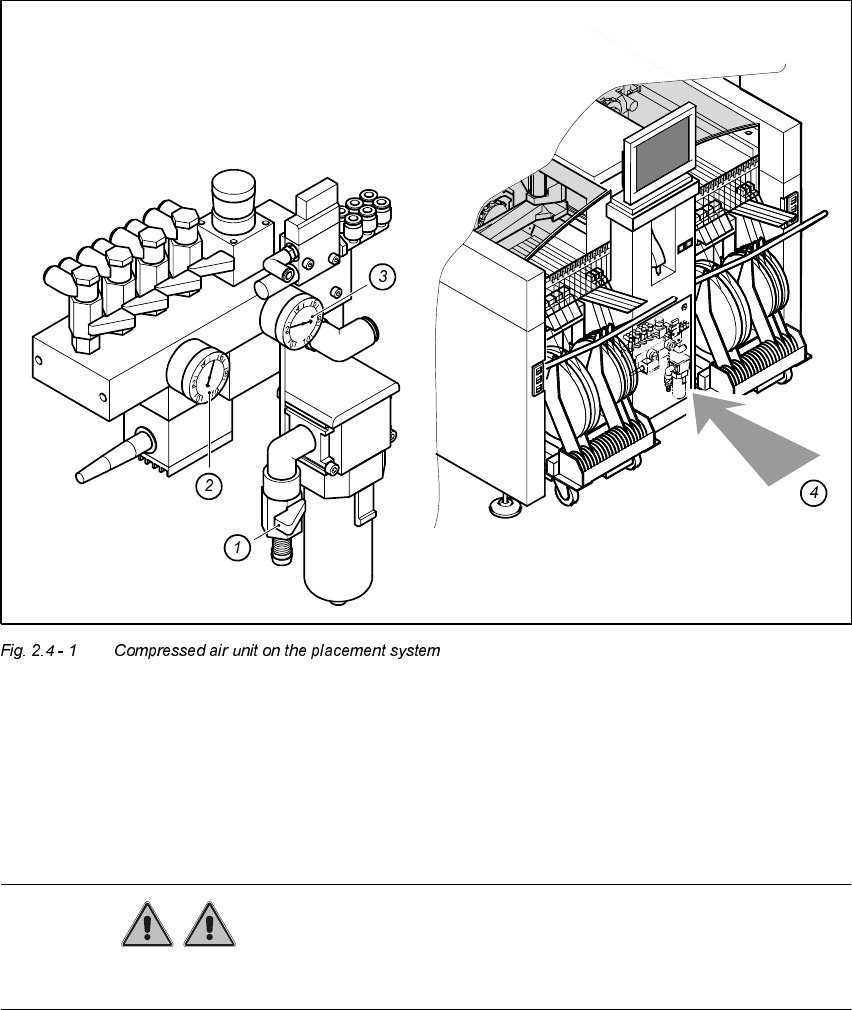

1. Shut-off valve lever in the CLOSED position
2. Operating pressure gauge
3. Pressure gauge for the component table operating pressure
4. Position of the compressed air unit on the placement system
User Manual HS-50 2 Operational Safety
Software-Version 5.01Edition 01/99 2.5 Energy state of the placement system after switching off at the main switch
75
(QHUJ\VWDWHRIWKHSODFHPHQWV\VWHPD IWHUVZLW
FKLQJRIIDWWKHPDLQVZLWFK
DANGER
The placement system is supplied with 3 x 204 V (US version) or 3 x 400 V or 3 x 460 ± 10 %,
50/60 Hz main power voltage. This means that some parts of the system carry potentially lethal
voltages - even when switched off at the main switch. Incorrect handling of the placement system
can therefore result in death or severe injury or considerable damage to equipment.
Å Always follow the applicable accident prevention and DIN regulations (particularly DIN 60 204,
part 1).

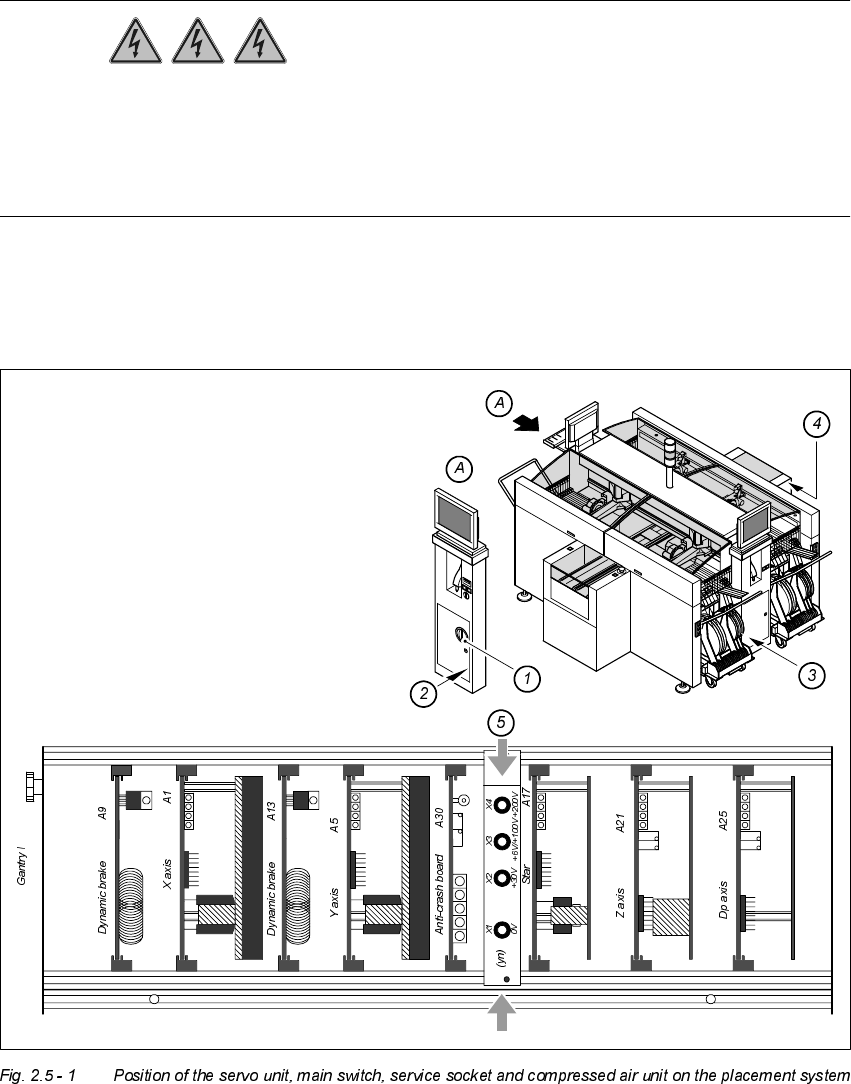

Å The cover over the servo unit must only be opened by qualified and trained personnel.
