Retrofit instructions: New 1-wire wiring for the SIPLACE X-series 11/2005 Edition 56 2.8.3 Replacing the nozzle change r control board for the C&P 20 : Loosen th e screws on the nozzle chan ger and lift it out of the…
Retrofit instructions: New 1-wire wiring for the SIPLACE X-series
11/2005 Edition
55
: Modify the cable run for the FCU.

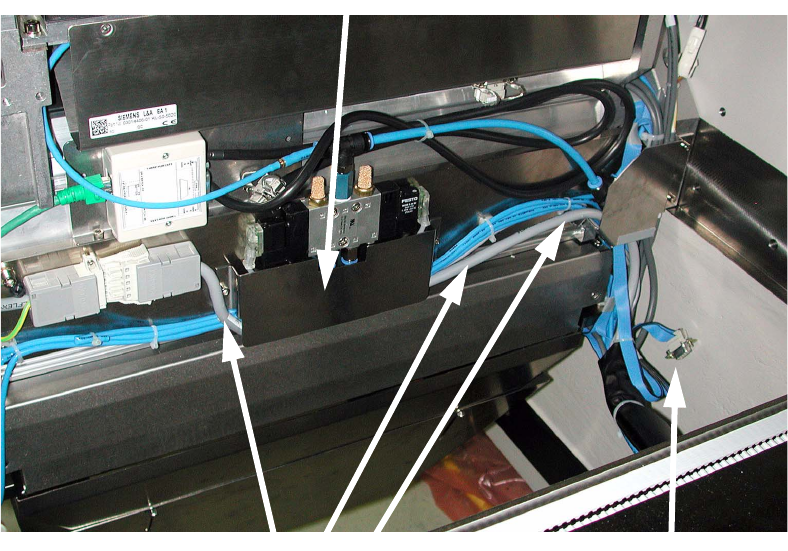

Run the cable under the metal cover on the pneumatic valve (see photograph below).
: Run the now unused machine-CAN bus cable on the wiring harness towards the machine
frame and fix it in place with a cable tie.
2
2
2
2
2
2
2
2
2
2
2
Metal cover
Now unused
machine-CAN bus cable
FCU cable
Retrofit instructions: New 1-wire wiring for the SIPLACE X-series
11/2005 Edition
56
2.8.3 Replacing the nozzle changer control board for the C&P 20

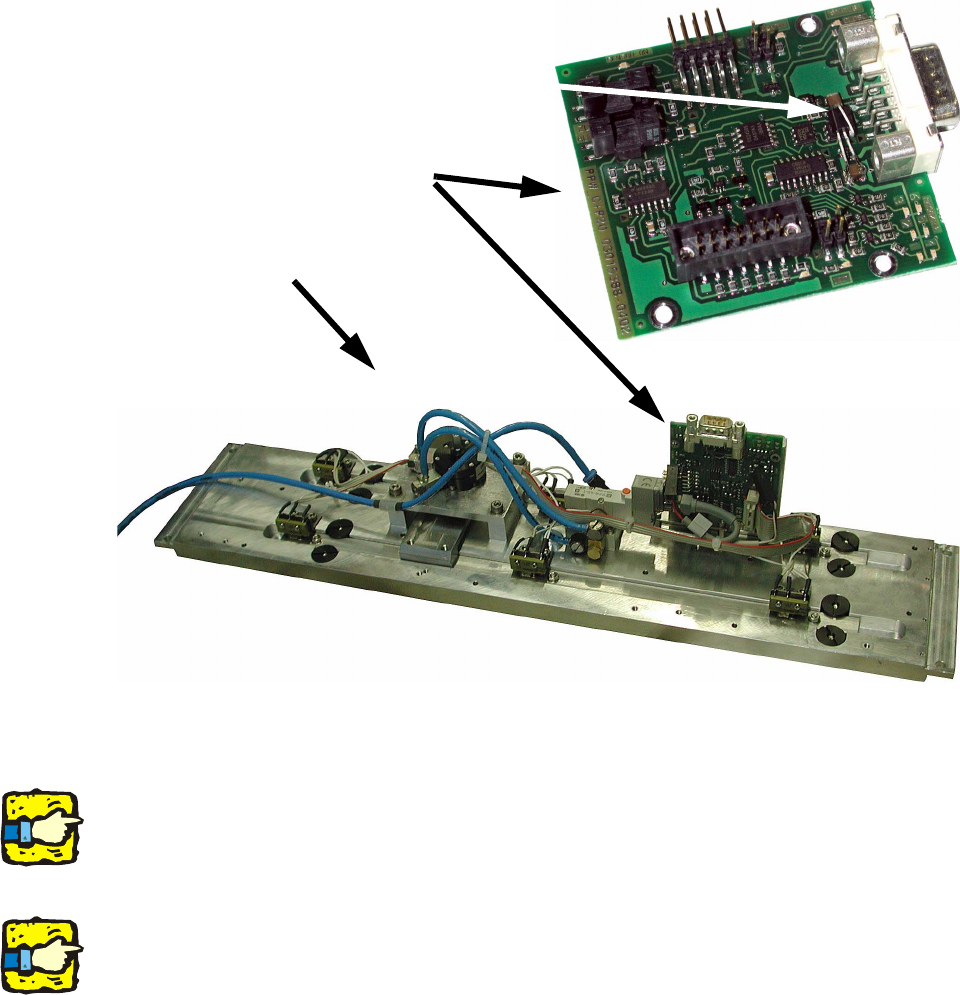

: Loosen the screws on the nozzle changer and lift it out of the placement machine. Replace the
control board on the underside of the nozzle changer with the new control board. This has an
additional voltage regulator.
2
2
: Insert the nozzle changer once more and screw it in place.
2
Note the installation height: 150.0 ± 0.2 mm. 2
2
2
2
Check the nozzle changer C&P 20 functional release. 2
It should be > 03. Replace it if this is not the case. 2
2
2
Nozzle changer control board
Nozzle changer
Voltage regulator
Retrofit instructions: New 1-wire wiring for the SIPLACE X-series
11/2005 Edition
57
2.8.4 PCB, 1-wire CAT5 gantry

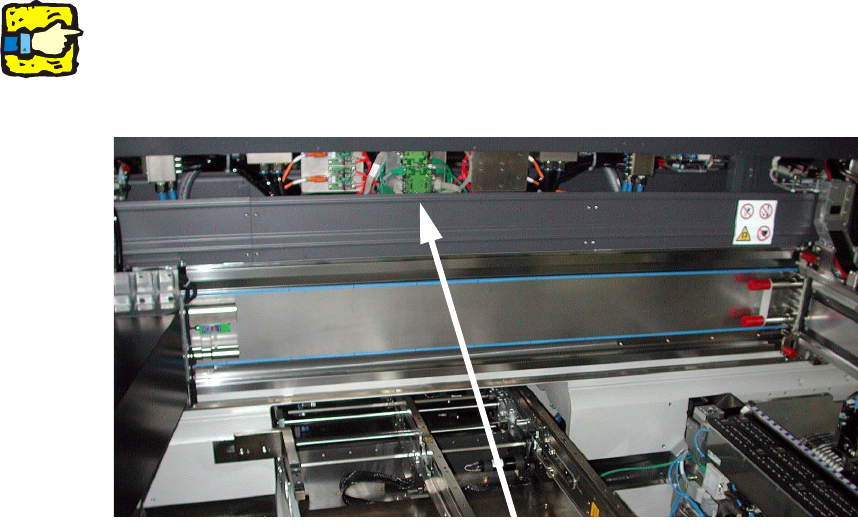

: Fit the 1-wire CAT5 gantry module in the cross-beam.
Use 2 screws to fix the module to the top-hat rail beside the vision filter boards (see photo-
graph).
: Make sure that the module is in the correct position.
Fix the module in place and push it towards the input belt.
2
The gantry cable and hose carrier must never touch or brush against the module during travers-
ing. 2
2
2
2
: Connect the CAT5 cable from the 1-wire CAT5 distributor to the 1-wire CAT5 gantry board for
gantry 1 or PA2 for gantry 2.
2
2
2
2
2
2
2
2
Position 1-Wire CAT5 temp
