3 Head verification principles
3.1 Starting the offline head verification
12 Software Manual SIPLACE Head Verification 03/2018
3.1.1 First start of software
The vacuum system and the CAN-Bus setup might not be automatically detected. If this is the
case, both need to be configured manually.

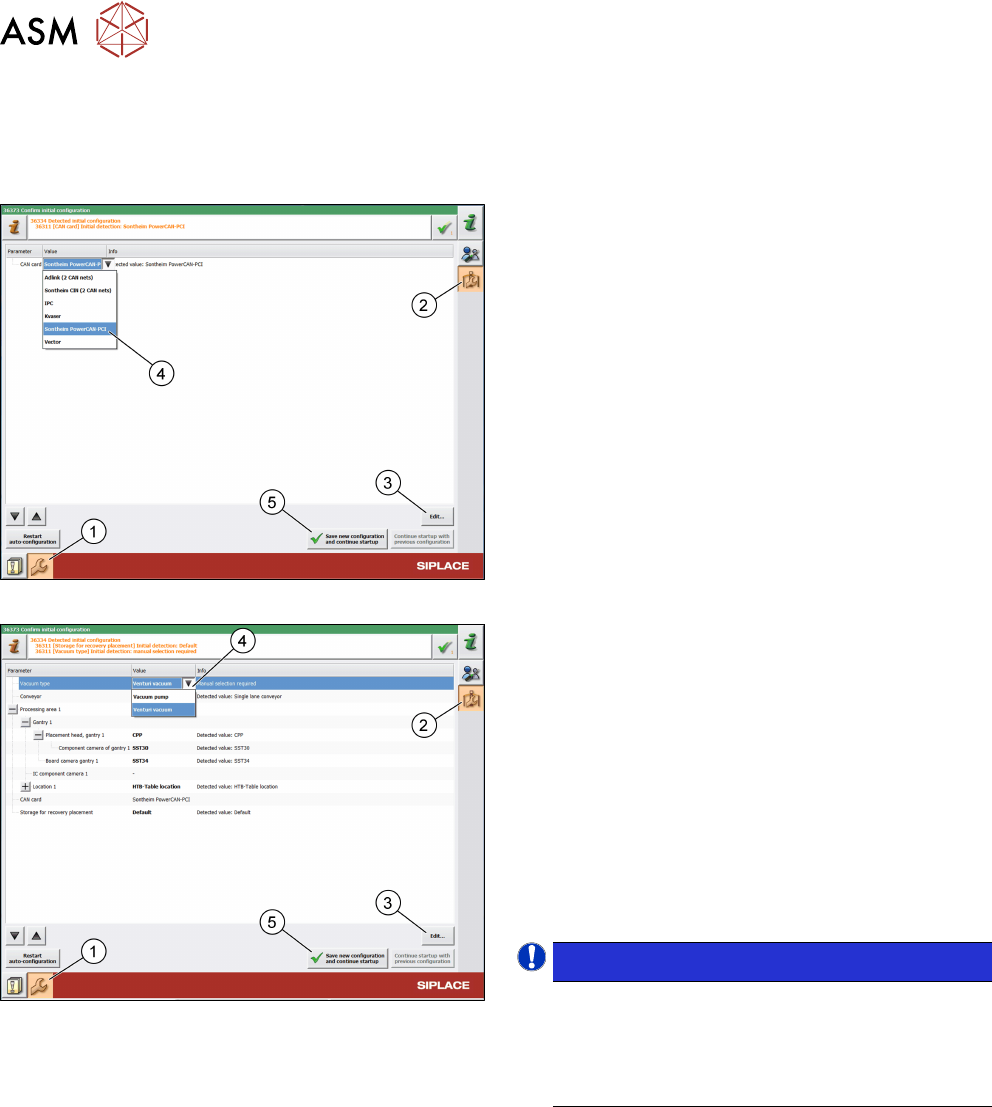

Fig.4:
CAN card configuration
Configure the CAN card:
► Click the Automatically update and configure
the machine icon(1).
► Click the Confirm automatically detected
machine configuration like camera type, con-
veyor type… icon(2).
► Click Edit…(3).
► Select Sontheim PowerCAN PCI(4).
► Click Save new configuration and continue
startup(5).
Fig.5: Vacuum type configuration
Configure the vacuum type:
► Click the Automatically update and configure
the machine icon(1).
► Log on as machine service.
► Click the Confirm automatically detected
machine configuration like camera type, con-
veyor type… icon(2).
► Click Edit…(3).
► Select Vacuum pump or Venturi vacuum(4).
► Click Save new configuration and continue
startup(5).
NOTICE!
Wrong vacuum values.
The selection applies the vacuum limits to be
used for the verification. If the vacuum type does
not match the connected vacuum supply, wrong
results will be provided.
.
3 Head verification principles
3.1 Starting the offline head verification
Software Manual SIPLACE Head Verification 03/2018 13
3.1.2 Head not recognized
To be able to verify a head with the HCS, the embedded software (eSW) of the head must match
the installed Serio version. If the firmware version of the installed head is older than required, the
eSW must be updated.

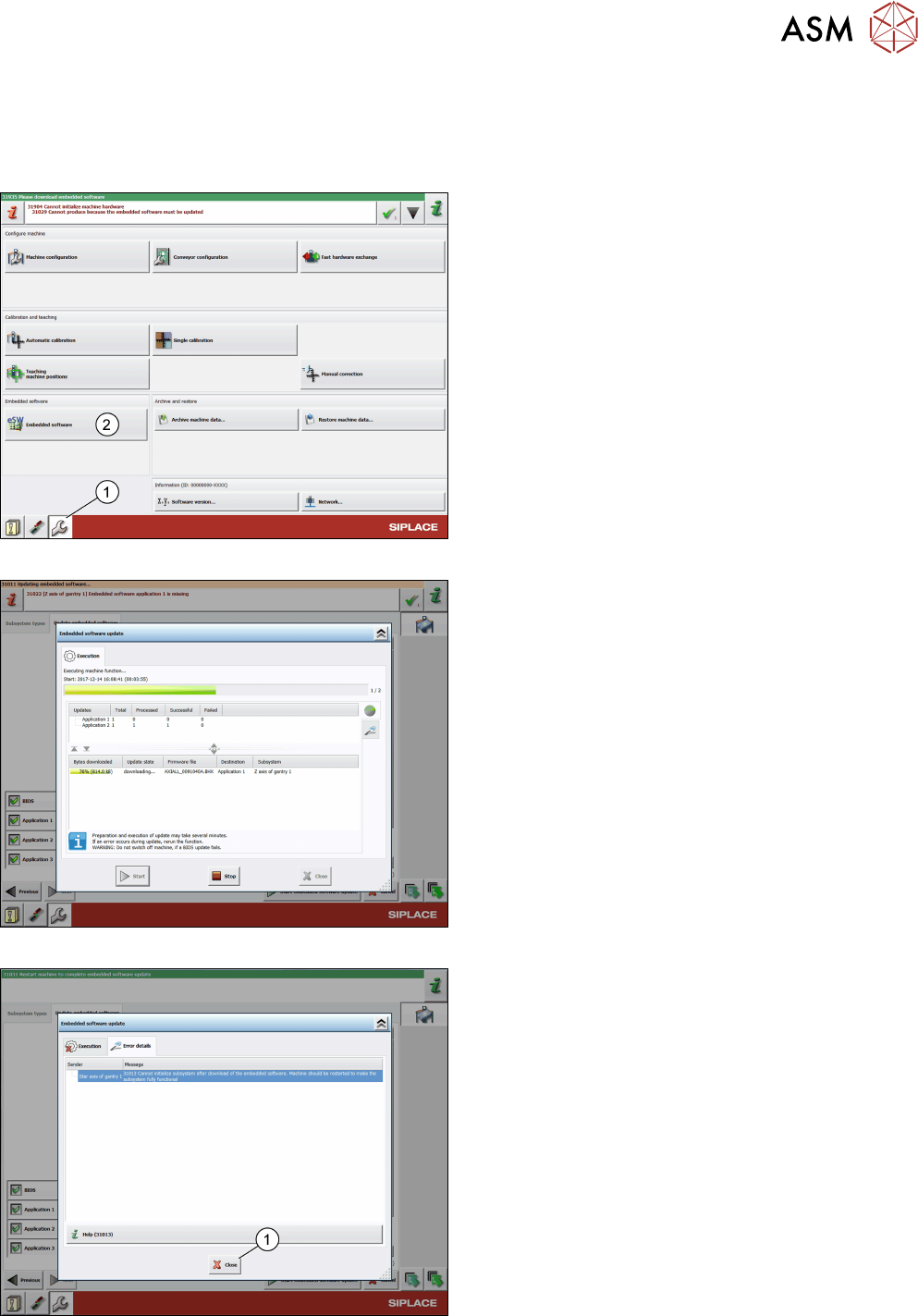

Fig.6: eSW download
Update the eSW:
► Log on as machine service.
► Click the Configure, update and calibrate the
machine icon(1).
► Click the Embedded software button(2).
Fig.7: eSW download in progress
► Click Update machine.
► Click Next.
► Click Start embedded software update.
Fig.8: eSW download finished
► Click Close.
► Shut down the HCS.
► Switch off and restart the system.
3 Head verification principles
3.1 Starting the offline head verification
14 Software Manual SIPLACE Head Verification 03/2018
3.1.3 Helpful HCS functions
3.1.3.1 Adding users
The operator is set up by default. If more persons are required, they can be added to the list using
the Add user function:

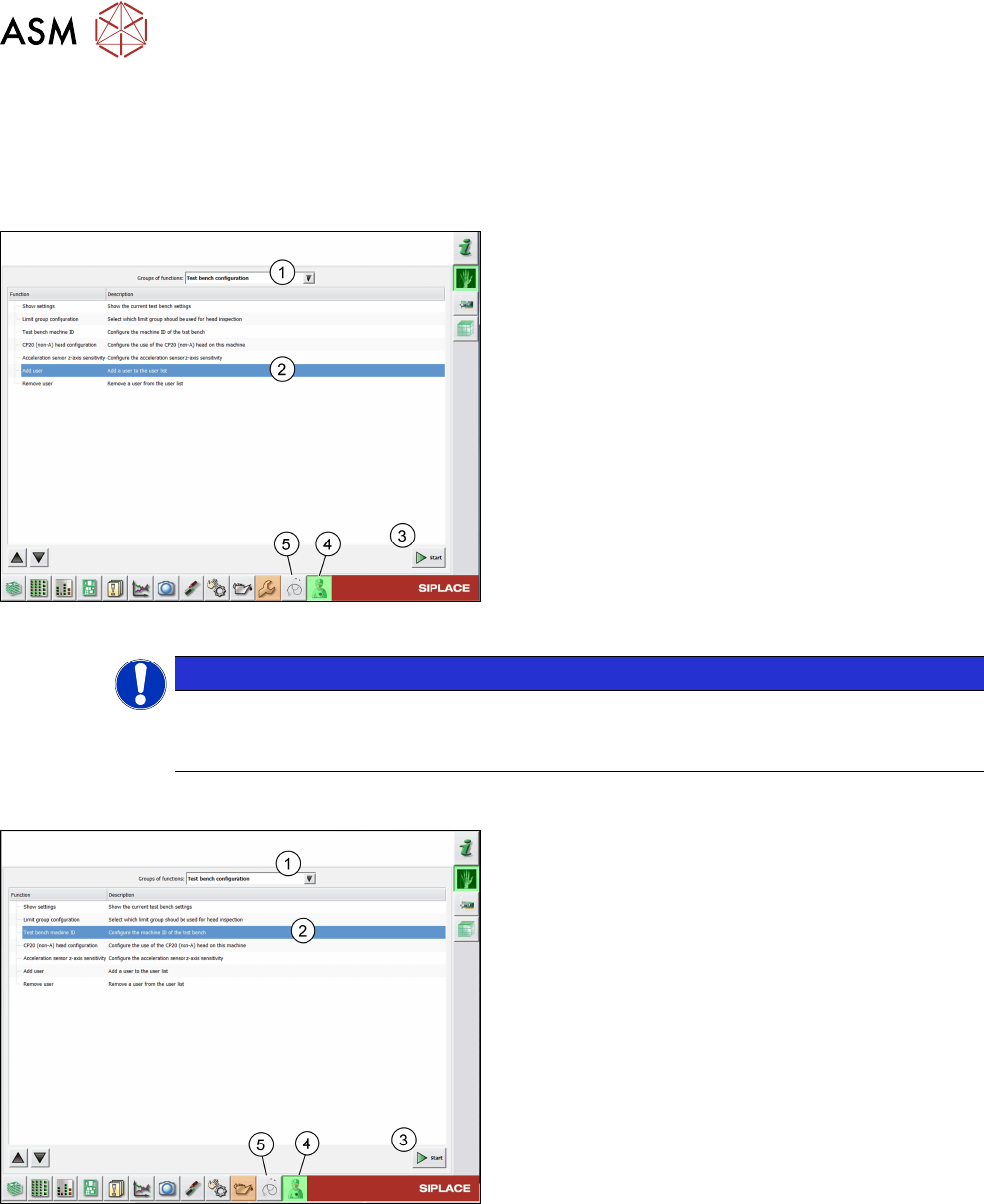

Fig.9: Add user function
► Click the Test bench service icon(4).
► From the list, select Test bench configura-
tion(1).
► Select the Add user function(2).
► Click the Start button(3).
► Enter a name and click OK.
ð The user is now available in the Tester list on
the Meta data tab.
► Click the Test bench inspection icon(5) to re-
turn to the Meta data tab.
NOTICE
Removing users
To remove a user, select the Remove user function and proceed as described for Adding
users.
3.1.3.2 Modifying the test bench configuration
Fig.10: Test bench machine ID function
► Click the Test bench service icon(4).
► From the list, select Test bench configura-
tion(1).
► Select the Test bench machine ID function(2).
► Click the Start button(3).
► Enter the HCS ID written on the type plate or on
the label below the pneumatic unit and click OK.
► Click the Test bench inspection icon(5) to re-
turn to the Meta data tab.
