4 Offline head verification 4.4 Available measurements for CPP 26 Software Manual SIPLACE Head Verification 03/2018 4.4 Available measurements for CPP Required Tools ● 1x endurance run unit [03086515-xx] ● 1x force measu…
4 Offline head verification
4.3 Available measurements for C&P20P
Software Manual SIPLACE Head Verification 03/2018 25
4.3 Available measurements for C&P20P
Required Tools
●
1x endurance run unit [03086515-xx]
●
1x CP20 – CPP stopper [03095249-xx]
●
1x calibration tool pocket [03086419-xx]
●
20x nozzle 4235 [03015222-xx]
●
1x calibration jig version SST23 [03034148-xx]
●
20x nozzle 4069 [03106244-xx]
●
1x vacuum measurement unit [03085726-xx]
●
1x nozzle 4004 [03098544-xx]
●
1x force measurement unit [03086502-xx]
●
1x nozzle 4105 [03102457-xx]
Verification workflow

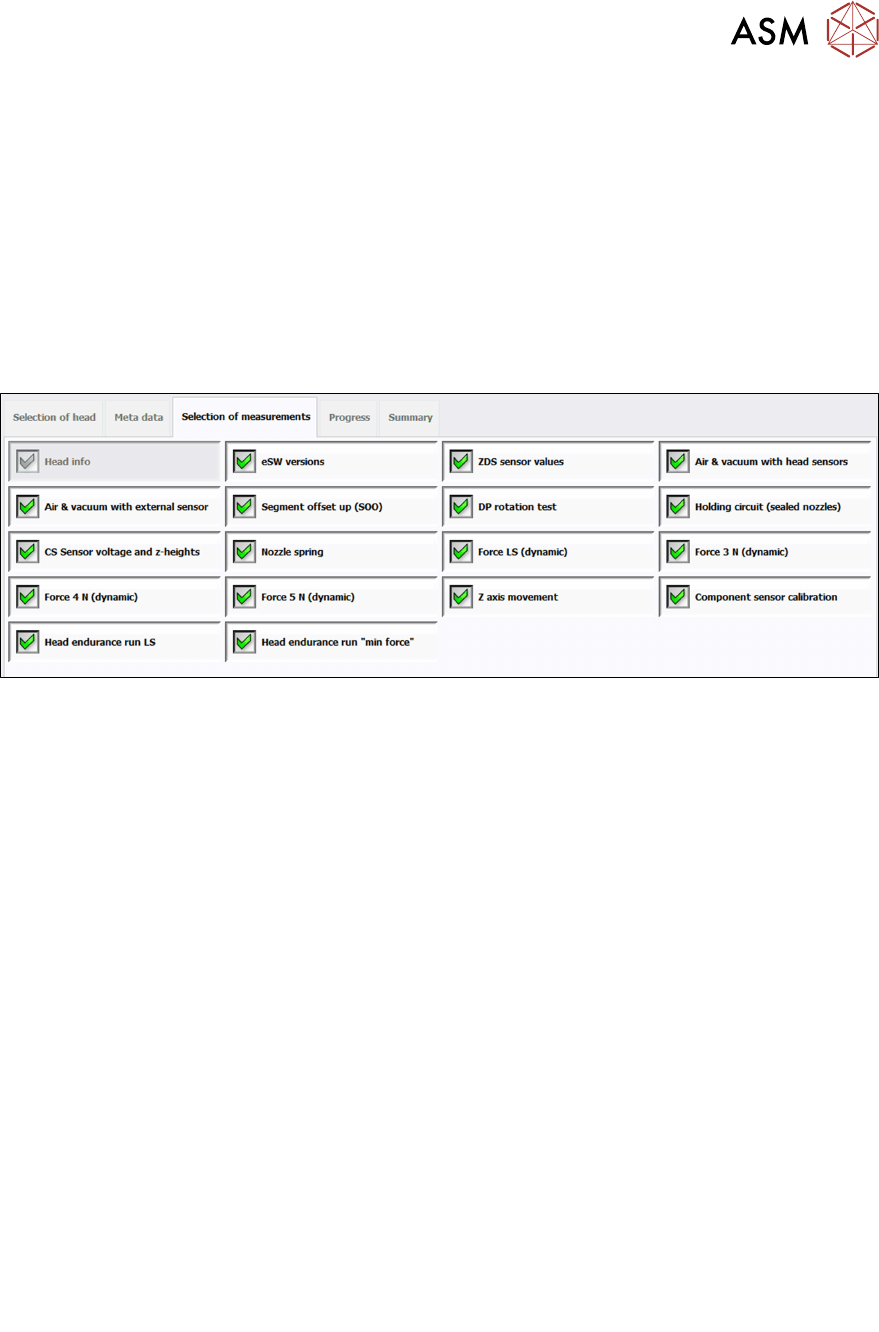

Fig.25: Available measurements for C&P20P
1 Head info
2 eSW versions
3 ZDS sensor values
4 Air & vacuum with head sensors
See 6.2 "Air & vacuum with head sensor" [}37]
5 Air & vacuum with external sensor
See 6.3 "Air & vacuum with external sensor" [}40]
6 Segment offset up (SOO)
See 6.21 "Segment offset up (SOO)" [}78]
7 DP rotation test
See 6.8 "DP rotation test" [}48]
8 Holding circuit (sealed nozzles)
See 6.17 "Holding circuit (sealed nozzles)" [}68]
9 CS Sensor voltage and z-heights
See 6.5 "CS Sensor voltage and z-heights" [}44]
10 Nozzle spring
See 6.18 "Nozzle spring" [}70]
11 Force LS (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
12 Force 3N (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
13 Force 4N (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
14 Force 5N (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
15 Z axis movement
See 6.22 "Z-axis movement" [}81]
16 Component sensor calibration
See 6.6 "Component sensor calibration" [}46]
18 Head Endurance Run LS
See 6.16 "Head endurance run LS" [}65]
19 Head endurance run “min force”
4 Offline head verification
4.4 Available measurements for CPP
26 Software Manual SIPLACE Head Verification 03/2018
4.4 Available measurements for CPP
Required Tools
●
1x endurance run unit [03086515-xx]
●
1x force measurement unit [03086502-xx]
●
1x calibration tool pocket [03086419-xx]
●
1x stop bracket CPx [03095249-xx]
●
1x calibration part version 3 [03010565-xx]
●
12x nozzle 2057 [03070280-xx]
●
1x vacuum measurement unit [03085726-xx]
●
12x nozzle 2069 [03094135-xx]
Verification workflow
Fig.26: Available measurements for CPP
1 Head info
2 Head statistic data
3 DP statistic data
4 eSW versions
5 Air & vacuum with head sensors
See 6.2 "Air & vacuum with head sensor" [}37]
6 Air & vacuum with external sensor
See 6.3 "Air & vacuum with external sensor" [}40]
7 Segment offset up (SOO)
See 6.21 "Segment offset up (SOO)" [}78]
8 DP rotation test
See 6.8 "DP rotation test" [}48]
9 Nozzle spring
See 6.18 "Nozzle spring" [}70]
10 Dp- / Z-Positioning
See 6.9 "Dp- / Z-Positioning" [}50]
11 CS Sensor voltage and z-heights
See 6.5 "CS Sensor voltage and z-heights" [}44]
12 Holding circuit (sealed nozzles)
See 6.17 "Holding circuit (sealed nozzles)" [}68]
13 Force LS (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
14 Force 01005 (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
15 Force 5N (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
16 Force 10N (dynamic)
See 6.11 "Force measurement for C&P heads" [}54]
17 Z axis movement
See 6.22 "Z-axis movement" [}81]
18 Head Endurance Run 01005
See 6.14 "Head endurance run 01005" [}60]
19 Head Endurance Run LS
See 6.16 "Head endurance run LS" [}65]
4 Offline head verification
4.5 Available measurements for TH
Software Manual SIPLACE Head Verification 03/2018 27
4.5 Available measurements for TH
Required Tools
●
1x endurance run unit [03086515-xx]
●
1x Nozzle 517 [03012042-xx]
●
1x calibration tool pocket [03086419-xx]
●
P+P stopper [03119655-xx]
●
1x calibration part version 3 [03010565-xx]
●
1x force measurement unit [03086502-xx]
●
1x Nozzle 504
– Adapter for 9xx nozzle [00330027-xx]
– Adapter nozzle interface [03011583-xx]
– Nozzle 904 [00322602-xx]
●
1x vacuum measurement unit [03085726-xx]
Verification workflow

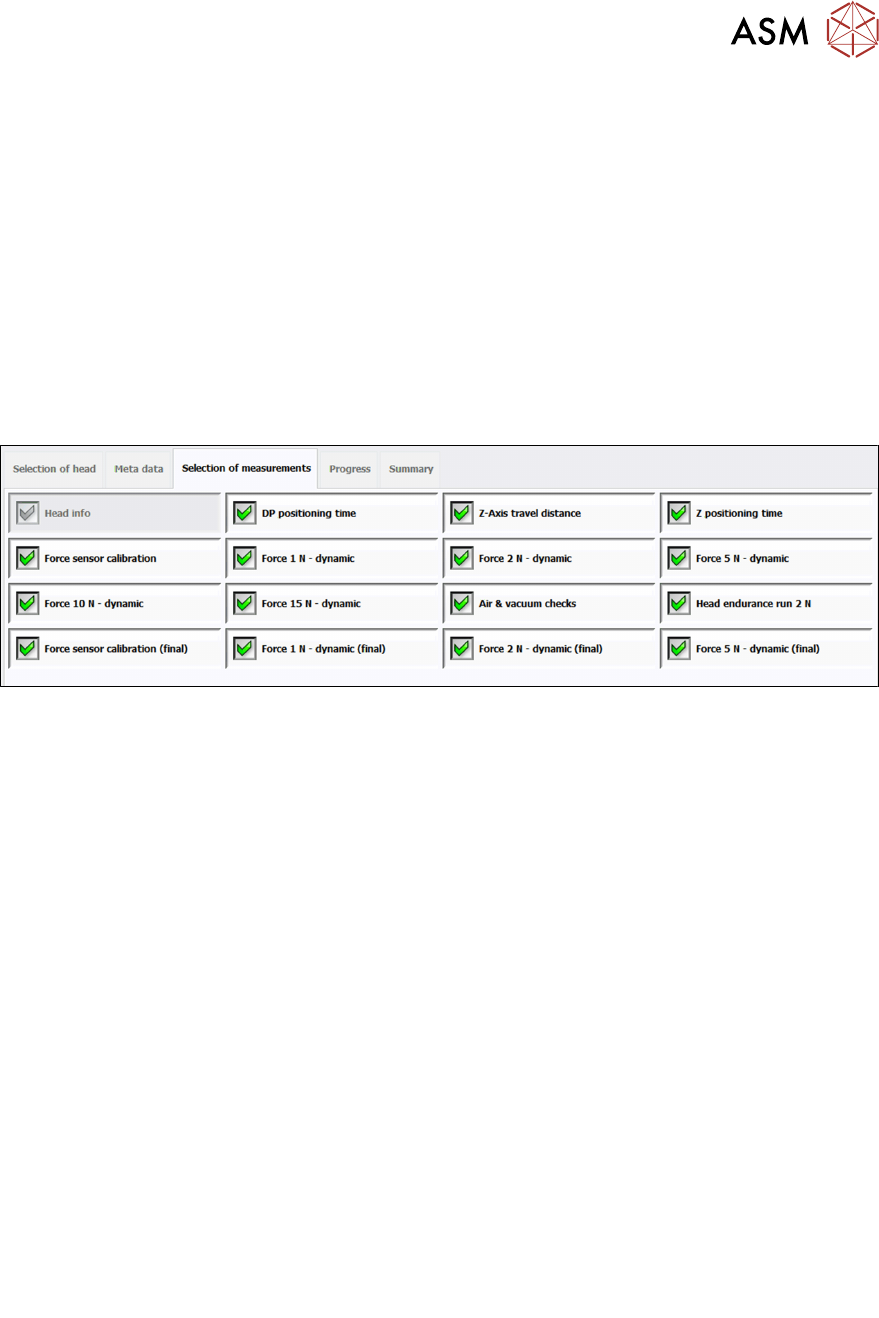

Fig.27: Available measurements for P&P module
1 Head info
2 DP positioning time
See 6.7 "DP positioning time" [}47]
3 Z-Axis travel distance
See 6.23 "Z-Axis travel distance" [}83]
4 Z positioning time
See 6.25 "Z positioning time" [}87]
5 Force sensor calibration See 6.13 "Force sensor calibration / Force sensor cali-
bration (final)" [}58]
6 Force 1N – dynamic
See 6.12 "Force measurement P&P module (TH)" [}56]
7 Force 2N – dynamic
See 6.12 "Force measurement P&P module (TH)" [}56]
8 Force 5N – dynamic
See 6.12 "Force measurement P&P module (TH)" [}56]
9 Force 10N – dynamic
See 6.12 "Force measurement P&P module (TH)" [}56]
10 Force 15N – dynamic
See 6.12 "Force measurement P&P module (TH)" [}56]
11 Air & vacuum checks
See 6.1 "Air & vacuum checks" [}35]
12 Head endurance run 2N
See 6.15 "Head endurance run 2N" [}63]
13 Force sensor calibration (final) See 6.13 "Force sensor calibration / Force sensor cali-
bration (final)" [}58]
14 Force 1N – dynamic (final)
See 6.12 "Force measurement P&P module (TH)" [}56]
15 Force 2N – dynamic (final)
See 6.12 "Force measurement P&P module (TH)" [}56]
16 Force 5N – dynamic (final)
See 6.12 "Force measurement P&P module (TH)" [}56]
