- - 4. COV ER C OMP ONE NT S 1 2 4 2 7 3 4 5 6 8 1 2 1 3 1 4 1 5 1 6 1 8 1 9 5 4 1 7 2 0 2 3 2 7 2 8 2 9 3 0 4 8 4 9 4 6 4 7 5 2 5 3 4 4 4 5 4 0 4 2 3 8 3 9 3 6 3 7 5 0 5 1 3 1 3 5 4 3
- -

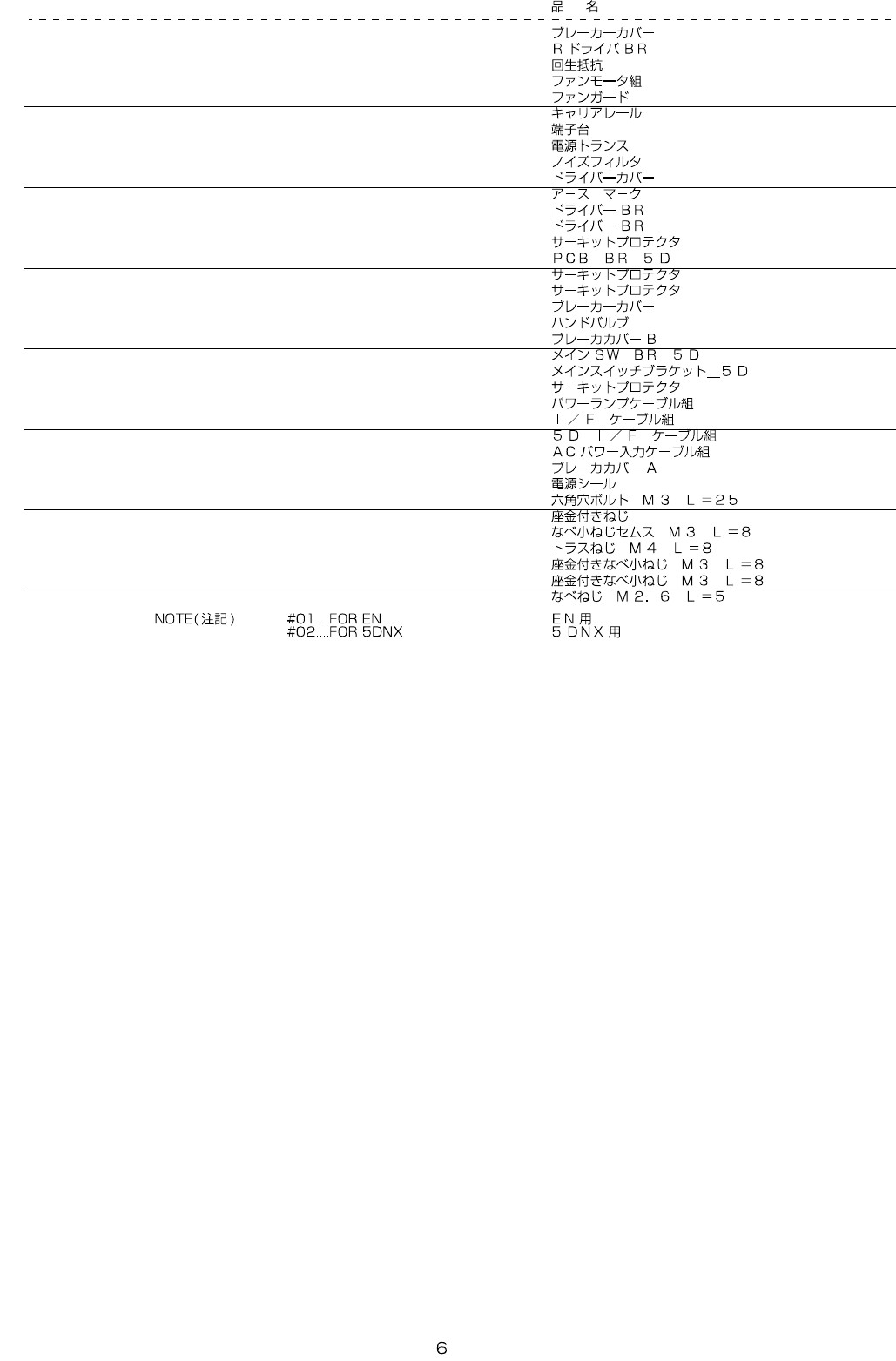

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49016 BREAKER COVER 1
2 400-48785 R DRIVER BR 1
3 400-45704 RESISTANCE 1
4 400-49509 FAN MOTOR ASM 1
5
#01
HM-0003300-30 FAN GUARD 1
6 400-50012 CARRIER RAIL 1
7 HK-0498500-10 TERMINAL BOARD 27
8 400-45701 TRANSFORMER 1
9 400-45714 NOISE FILTER 1
10 400-49276 DRIVER COVER 1
11 E9567-319-000 EARTH MARK 6
12 400-49274 DRIVER BR 1
13 400-49275 DRIVER BR 1
14 HA-0052400-00 CIRCUIT PROTECTOR 1
15 400-48784 PCB BR 5D 1
16 HA-0052400-0A CIRCUIT PROTECTOR 1
17 HA-0052400-0C CIRCUIT PROTECTOR 1
18 400-49165 BREAKER COVER 2
19 PV-0100060-00 HAND VALVE 1
20
#01
E2411-723-000 BREAKER COVER B 1
21 400-48783 MAIN SW BR 5D 1
22
#02
400-94907 MAIN_SW_BR_5D 1
23 HA-0058500-00 CIRCUIT PROTECTOR 1
24 400-49504 POWER LAMP CABLE ASM 1
25 400-45200 I/F CABLE ASM 1
26
#02
400-96122 5D I/F CABLE ASM 1
27 400-49489 AC POWER INPUT CABLE ASM 1
28
#01
E2410-723-000 BREAKER COVER A 1
29 E2106-716-000 POWER SUPPLY SEAL 1
30 SM-6032502-TN SCREW 2
31 SL-4034091-SC SCREW M3X40 2
32 SL-4030891-SC SCREW M3X8 2
33 SM-0040801-SC SCREW 2
34 SL-4030881-SC SCREW M3 L=8 2
35 SL-4030881-SC SCREW M3 L=8 4
36
#02
SM-4860501-SB SCREW M2.6 L=5 2
- -
4. COVER COMPONENTS
1
2 4 2 734
5 6
8 1 2
1 3 1 4
1 5 1 6
1 8 1 9
5 4
1 7
2 0
2 3
2
7
2 8
2 9 3 0
4 8 4 9
4 6 4 7
5 2 5 3
4 4 4 5
4 0 4 2
3 8 3 9
3 6 3 7
5 0 5 1
3 1 3 5
4 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48941 SIDE COVER L 1
2 400-49942 REAR COVER CT SILK 1
3 400-48926 WINDOW S 1
4 400-48894 EMBEDDED PULLS 1
5 400-53447 TOP COVER L 6
6
#01
E6209-723-000 TOP COVER L(CE) 6
7
#01
E6215-723-000 JOINT COVER BR(CE) 2
8 400-48926 WINDOW S 2
9 SM-0041201-SA SCREW M4X0.7 L=12 8
10 NM-6040001-SC NUT M4 8
11 WS-0410002-KN SPRING WASHER 8
12 WP-0430801-SC WASHER 4.3X9X0.8 8
13 400-53448 TOP COVER R 6
14
#01
E6210-723-000 TOP COVER R(CE) 6
15 400-48947 DOOR COVER 2
16 SM-0040601-SC SCREW M4X0.7 L=6 8
17 400-48926 WINDOW S 1
18
#01
E6212-723-000 BRACKER COVER(CE) 1
19
#02
E2411-723-000 BREAKER COVER B 1
20 400-48949 REAR COVER R 1
21 HX-0033900-0D SPACER 6
22 SM-0040601-SC SCREW M4X0.7 L=6 6
23
#01
400-98346 RETAINING WASHER M4 6
24 400-48948 REAR COVER L 1
25 HX-0033900-0D SPACER 4
26 SM-0040601-SC SCREW M4X0.7 L=6 4
27
#01
400-98346 RETAINING WASHER M4 4
28 HX-0032600-0M DOME PLUG 2
29 400-48942 SIDE COVER R 1
30 SM-0040601-SC SCREW M4X0.7 L=6 6
31
#01
400-48926 WINDOW S 2
32
#01
SM-0041201-SA SCREW M4X0.7 L=12 8
33
#01
NM-6040001-SC NUT M4 8
34
#01
WS-0410002-KN SPRING WASHER 8
35
#01
WP-0430801-SC WASHER 4.3X9X0.8 8
36 400-48951 FRONT COVER B 1
37 SM-0040601-SC SCREW M4X0.7 L=6 4
38 400-48944 FRONT COVER L 1
39 SM-0040601-SC SCREW M4X0.7 L=6 6
40 400-48946 FRONT COVER U 1
41
#01
400-49279 FRONT COVER U 1
42 SM-0040601-SC SCREW M4X0.7 L=6 4
43
#01
E6216-723-000 JOINT COVER PL(CE) 2
44
#01
400-50026 JOINT COVER L 5D 3
45
#02
400-94914 JOINT COVER L 5D 1
46 400-48943 SIDE COVER U 1
47 SM-0040601-SC SCREW M4X0.7 L=6 4
48 400-48952 SIDE COVER UR 1
49 SM-0040601-SC SCREW M4X0.7 L=6 4
50 400-48945 FRONT COVER R 1
51 SM-0040601-SC SCREW M4X0.7 L=6 6
52
#01
400-50025 JOINT COVER R 5D 3
53
#02
400-94915 JOINT COVER R 5D 1
54 400-48894 EMBEDDED PULLS 1
