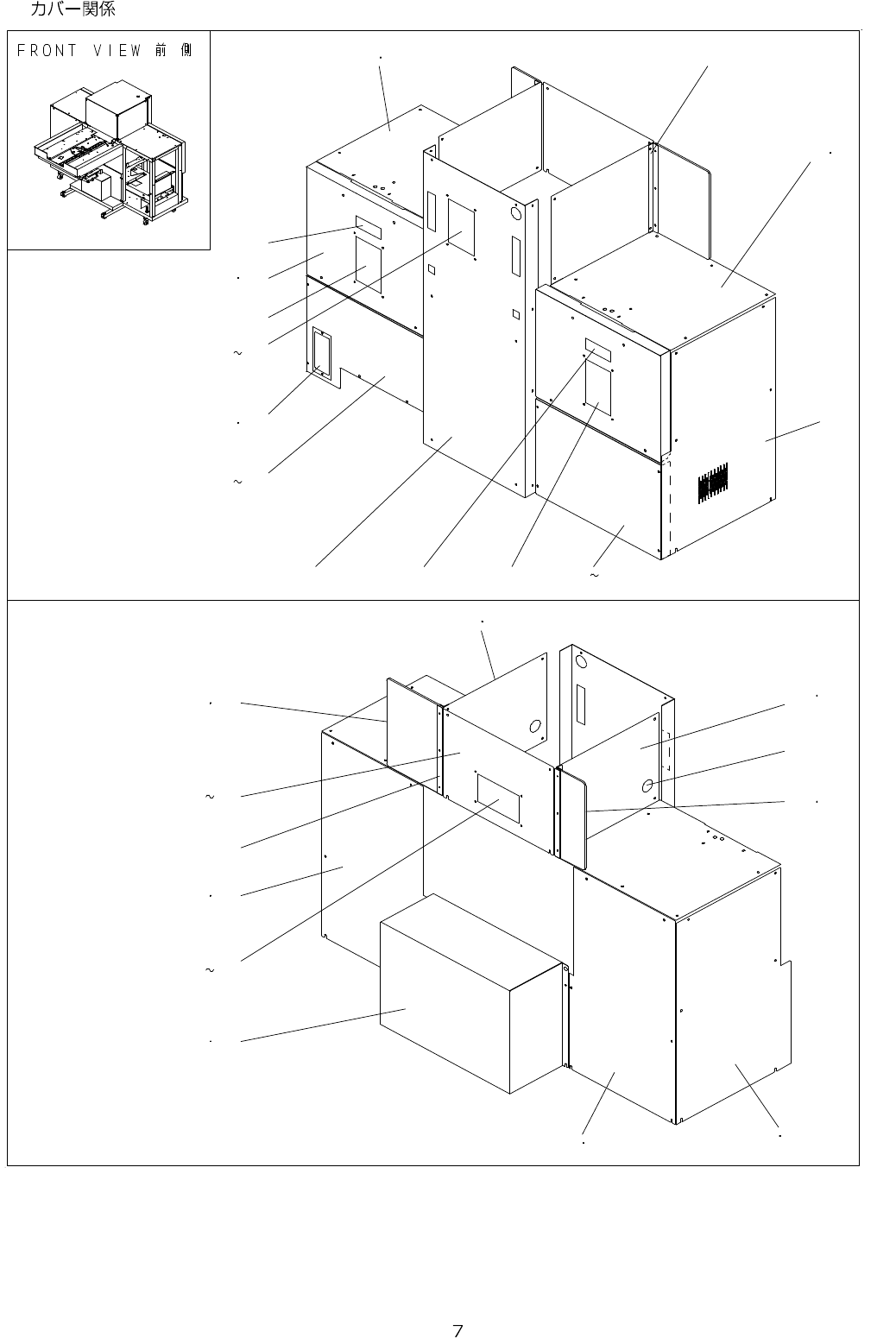

4. COVER COMPONENTS
1
2 4 2 734
5 6
8 1 2
1 3 1 4
1 5 1 6
1 8 1 9
5 4
1 7
2 0
2 3
2
7
2 8
2 9 3 0
4 8 4 9
4 6 4 7
5 2 5 3
4 4 4 5
4 0 4 2
3 8 3 9
3 6 3 7
5 0 5 1
3 1 3 5
4 3
- -

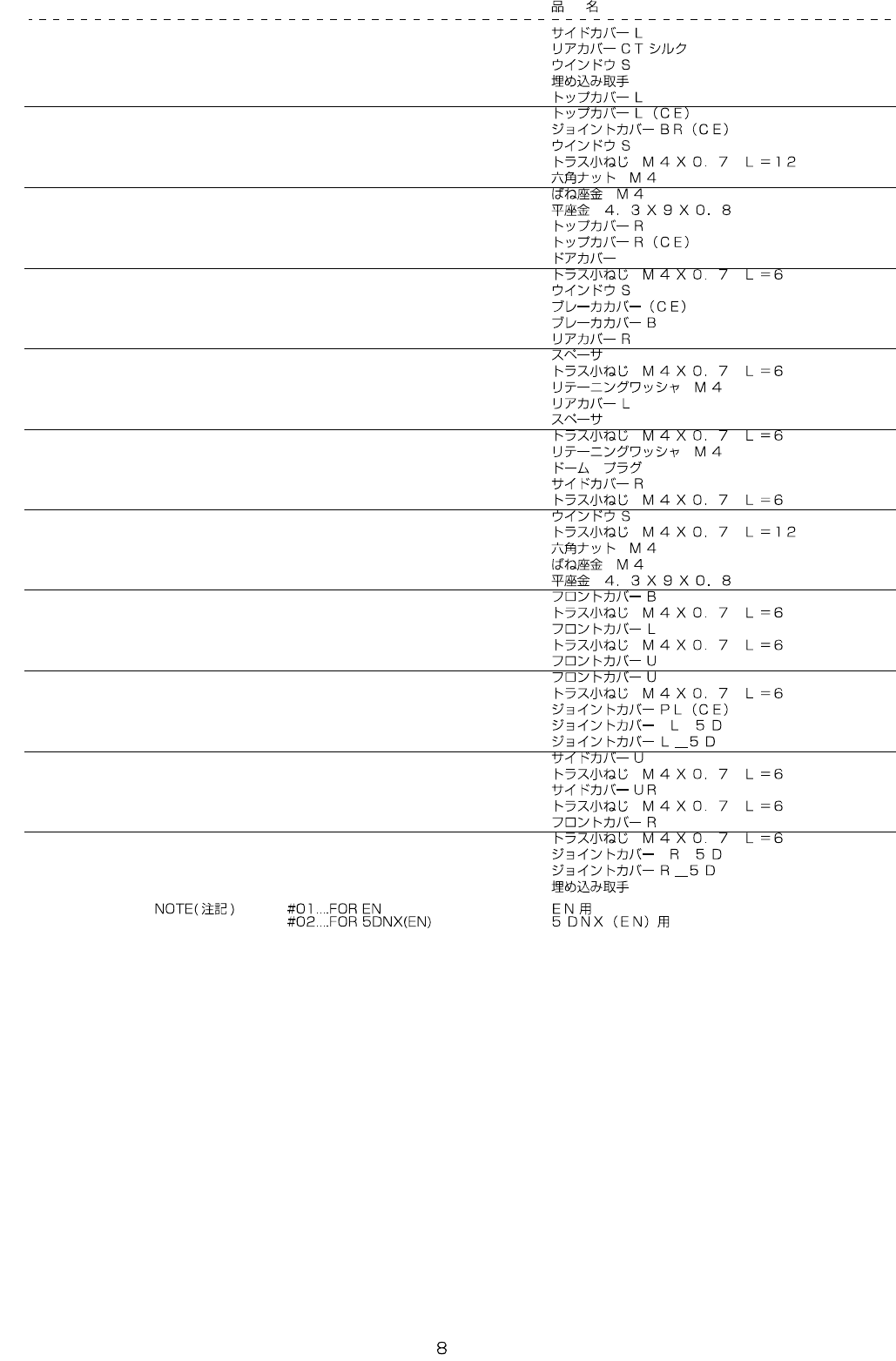

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48941 SIDE COVER L 1
2 400-49942 REAR COVER CT SILK 1
3 400-48926 WINDOW S 1
4 400-48894 EMBEDDED PULLS 1
5 400-53447 TOP COVER L 6
6
#01
E6209-723-000 TOP COVER L(CE) 6
7
#01
E6215-723-000 JOINT COVER BR(CE) 2
8 400-48926 WINDOW S 2
9 SM-0041201-SA SCREW M4X0.7 L=12 8
10 NM-6040001-SC NUT M4 8
11 WS-0410002-KN SPRING WASHER 8
12 WP-0430801-SC WASHER 4.3X9X0.8 8
13 400-53448 TOP COVER R 6
14
#01
E6210-723-000 TOP COVER R(CE) 6
15 400-48947 DOOR COVER 2
16 SM-0040601-SC SCREW M4X0.7 L=6 8
17 400-48926 WINDOW S 1
18
#01
E6212-723-000 BRACKER COVER(CE) 1
19
#02
E2411-723-000 BREAKER COVER B 1
20 400-48949 REAR COVER R 1
21 HX-0033900-0D SPACER 6
22 SM-0040601-SC SCREW M4X0.7 L=6 6
23
#01
400-98346 RETAINING WASHER M4 6
24 400-48948 REAR COVER L 1
25 HX-0033900-0D SPACER 4
26 SM-0040601-SC SCREW M4X0.7 L=6 4
27
#01
400-98346 RETAINING WASHER M4 4
28 HX-0032600-0M DOME PLUG 2
29 400-48942 SIDE COVER R 1
30 SM-0040601-SC SCREW M4X0.7 L=6 6
31
#01
400-48926 WINDOW S 2
32
#01
SM-0041201-SA SCREW M4X0.7 L=12 8
33
#01
NM-6040001-SC NUT M4 8
34
#01
WS-0410002-KN SPRING WASHER 8
35
#01
WP-0430801-SC WASHER 4.3X9X0.8 8
36 400-48951 FRONT COVER B 1
37 SM-0040601-SC SCREW M4X0.7 L=6 4
38 400-48944 FRONT COVER L 1
39 SM-0040601-SC SCREW M4X0.7 L=6 6
40 400-48946 FRONT COVER U 1
41
#01
400-49279 FRONT COVER U 1
42 SM-0040601-SC SCREW M4X0.7 L=6 4
43
#01
E6216-723-000 JOINT COVER PL(CE) 2
44
#01
400-50026 JOINT COVER L 5D 3
45
#02
400-94914 JOINT COVER L 5D 1
46 400-48943 SIDE COVER U 1
47 SM-0040601-SC SCREW M4X0.7 L=6 4
48 400-48952 SIDE COVER UR 1
49 SM-0040601-SC SCREW M4X0.7 L=6 4
50 400-48945 FRONT COVER R 1
51 SM-0040601-SC SCREW M4X0.7 L=6 6
52
#01
400-50025 JOINT COVER R 5D 3
53
#02
400-94915 JOINT COVER R 5D 1
54 400-48894 EMBEDDED PULLS 1
- -

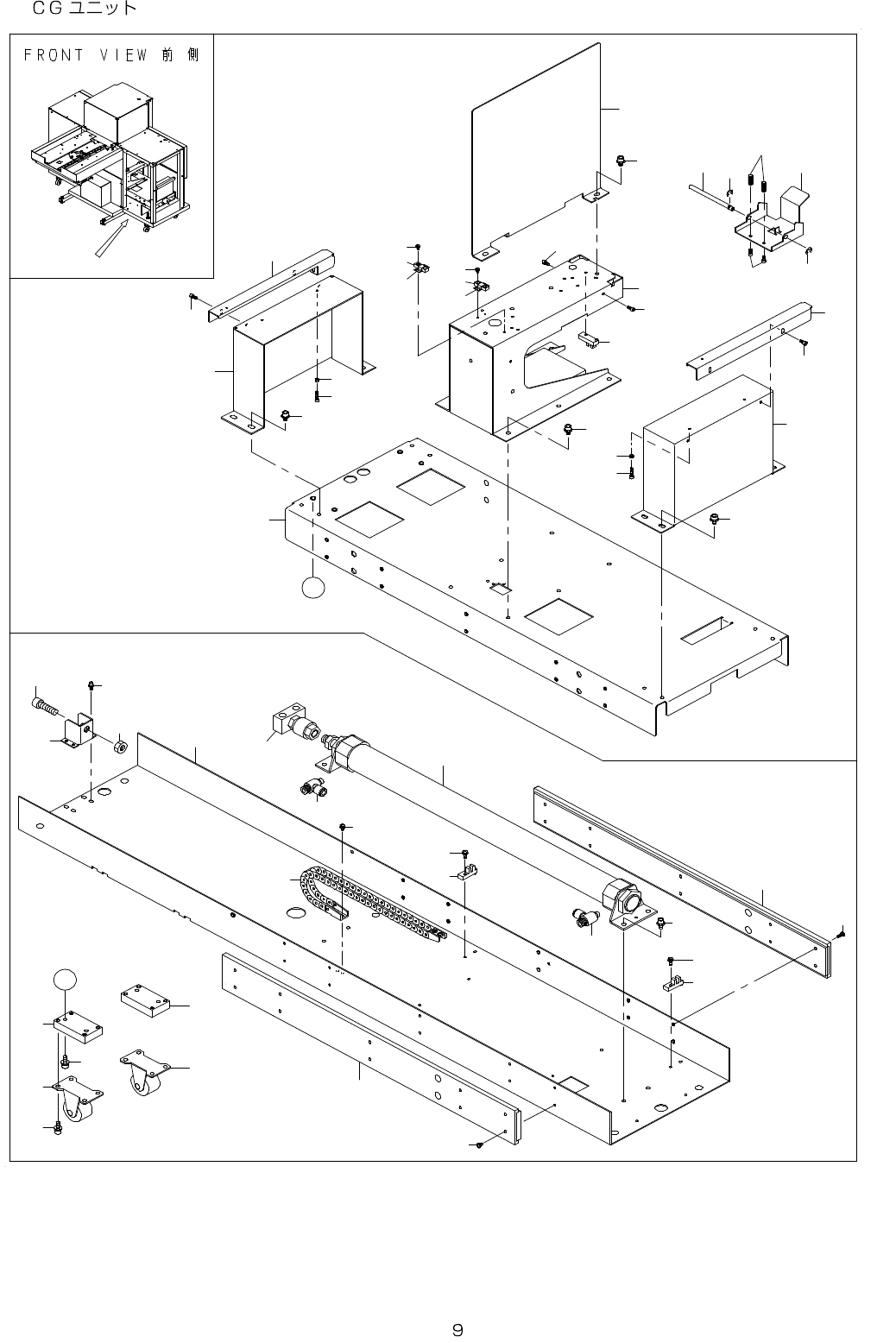

5. CG UNIT
