5. CG UNIT
1
2
4
5
7
6
1 0
1 3
1 4
1 4
1 5
2 8
2 6
2 9
3 3
3 3
8
3 5
3 6
9
3 6
1 8
3 0
3 4
3 4
2 7
2 7
1
2 9
3 1
3 2
3 1
3 2
1 9
2 2
2 3
2 1
2 0
4 1
A
4 0
1 7
1 6
1 6
1 7
3 7
3 8
3 9
2 5
1 2
1 2
3 8
3 7
2 4
2 4
1 1
4 2
3 5
3
A
- -

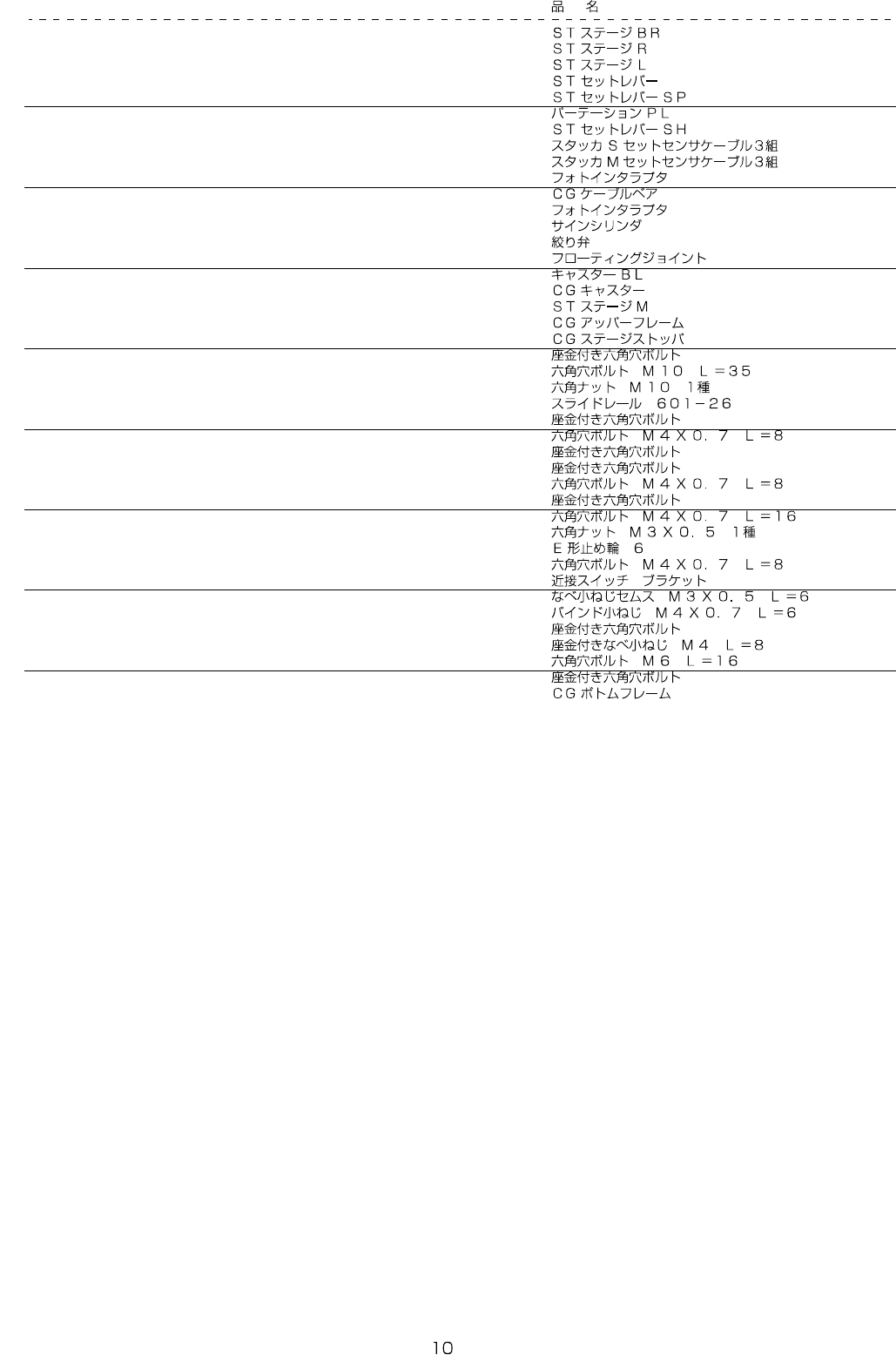

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49103 ST STAGE BR 2
2 400-49102 ST STAGE R 1
3 400-49101 ST STAGE L 1
4 E6058-723-000 ST SET LEVER 1
5 E6060-723-000 ST SET LEVER SP 2
6 400-48936 PARTITION PL 1
7 E6059-723-000 ST SET LEVER SH 1
8 400-49533 STK S SET SENSOR CABLE 3 ASM 1
9 400-49530 STK M SET SENSOR CABLE 3 ASM 1
10 HD-0017100-00 PHOTO SENSOR 1
11 E6053-723-000 CG CABLE BARE 1
12 HD-0017100-00 PHOTO SENSOR 2
13 PA-4045001-A0 SIGN CYLINDER 1
14 PC-0252020-00 THROTTLE VALVE 2
15 PA-9000680-00 FLOATING JOINT 1
16 E6056-723-000 CASTER BL 2
17 E6055-723-000 CG CASTER 2
18 400-49262 ST STAGE M 1
19 400-48935 CG UPPER FRAME 1
20 400-48937 CG STAGE STOPPER 1
21 SL-6041092-TN SCREW 4
22 SM-6103502-TP SCREW M10 L=35 1
23 NM-6100001-SC NUT M10X1.5 1
24 E6052-723-000 SLIDE RAIL 601-26 2
25 SL-6061292-TN SCREW 4
26 SM-6040802-TN SCREW 2
27 SL-6061092-TN SCREW 8
28 SL-6061092-TN SCREW 6
29 SM-6040802-TN SCREW 2
30 SL-6061092-TN SCREW 4
31 SM-6041602-TN SCREW M4 X 16 4
32 NM-6030001-SC NUT M3 4
33 RE-0600000-K0 E-RING 6 2
34 SM-6040802-TN SCREW 2
35 E3020-700-000 PROXIMITY SENSOR BRACKET 2
36 SL-4030691-SC SCREW M3X6 4
37 SM-5040601-SC SCREW M4X0.7 L=6 20
38 SL-6061292-TN SCREW 2
39 SL-4040891-SC SCREW M4 L=8 4
40 SM-6061602-TN SCREW M6 L=16 4
41 SL-6061692-TN BOLT 8
42 400-48933 CG BOTOM FRAME 1
- -

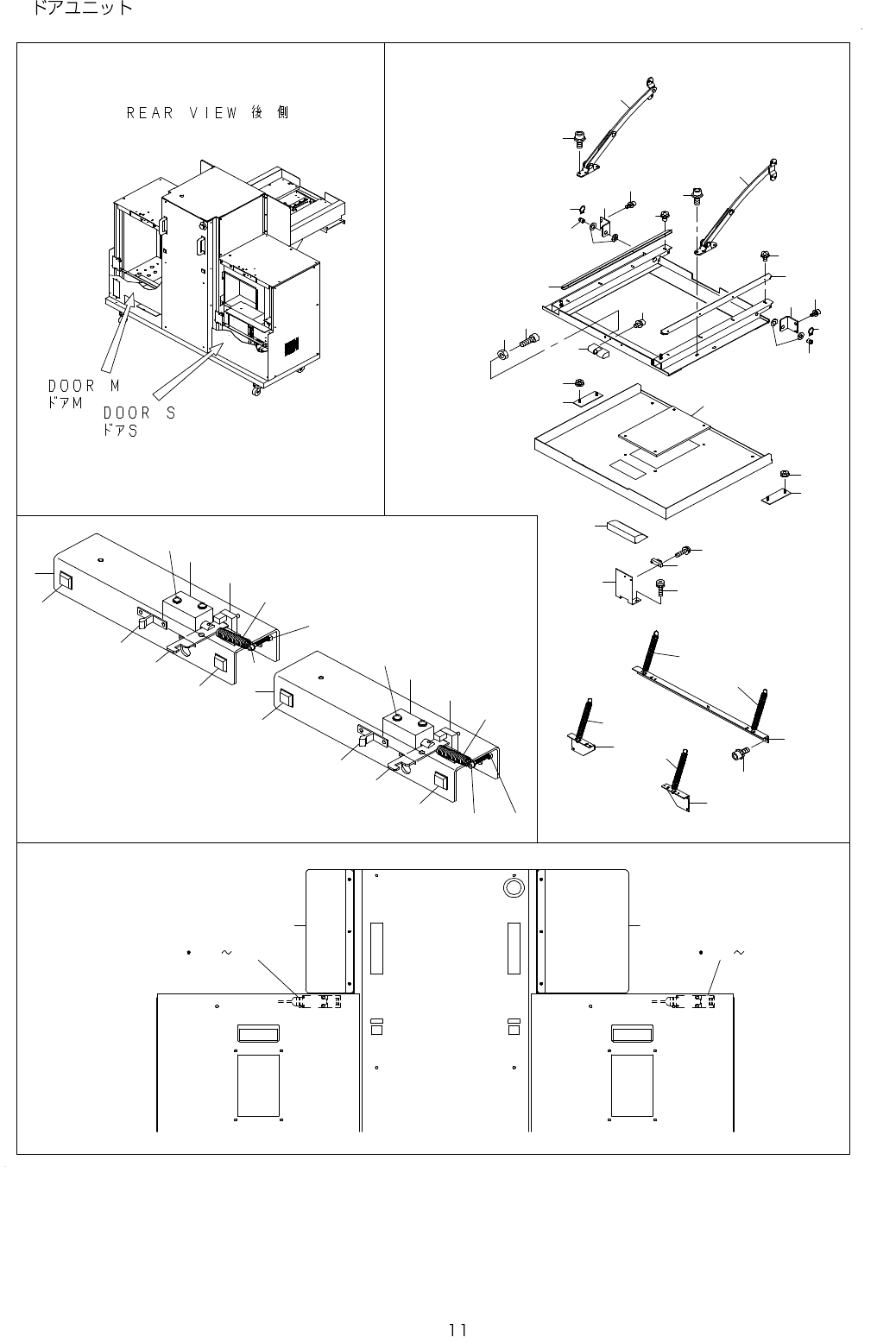

6. DOOR UNIT
2
3
4
5
5
7
1 3
9
1 0
2
1 2
1 0
6
1 51 6
6
1 0
1 2
2
1 0
9
8
1 3
1 8
1 8
1 9
1 92 0
2 0
1 7 2 1 2 3 1 4 2 1 2 3
2 4
2 5
2 6
5
5
2 7
2 8
2 9
3 0
3 1
3 2
3 1
3 2
3 3
3 4
3 5
3 8
4 0
3 9
3 4
1
1
3 6
3 5
4 2
4 2
4 1
4 3
1 1
4 4
4 5
3 7
3 6
3 7
4 0
