- - 6. DOOR U NIT 2 3 4 5 5 7 1 3 9 1 0 2 1 2 1 0 6 1 5 1 6 6 1 0 1 2 2 1 0 9 8 1 3 1 8 1 8 1 9 1 9 2 0 2 0 1 7 2 1 2 3 1 4 2 1 2 3 2 4 2 5 2 6 5 5 2 7 2 8 2 9 3 0 3 1 3 2 3 1 3 2 3 3 3 4 3 5 3 8 4 0 3 9 3 4 1 1 3 6 3 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49103 ST STAGE BR 2
2 400-49102 ST STAGE R 1
3 400-49101 ST STAGE L 1
4 E6058-723-000 ST SET LEVER 1
5 E6060-723-000 ST SET LEVER SP 2
6 400-48936 PARTITION PL 1
7 E6059-723-000 ST SET LEVER SH 1
8 400-49533 STK S SET SENSOR CABLE 3 ASM 1
9 400-49530 STK M SET SENSOR CABLE 3 ASM 1
10 HD-0017100-00 PHOTO SENSOR 1
11 E6053-723-000 CG CABLE BARE 1
12 HD-0017100-00 PHOTO SENSOR 2
13 PA-4045001-A0 SIGN CYLINDER 1
14 PC-0252020-00 THROTTLE VALVE 2
15 PA-9000680-00 FLOATING JOINT 1
16 E6056-723-000 CASTER BL 2
17 E6055-723-000 CG CASTER 2
18 400-49262 ST STAGE M 1
19 400-48935 CG UPPER FRAME 1
20 400-48937 CG STAGE STOPPER 1
21 SL-6041092-TN SCREW 4
22 SM-6103502-TP SCREW M10 L=35 1
23 NM-6100001-SC NUT M10X1.5 1
24 E6052-723-000 SLIDE RAIL 601-26 2
25 SL-6061292-TN SCREW 4
26 SM-6040802-TN SCREW 2
27 SL-6061092-TN SCREW 8
28 SL-6061092-TN SCREW 6
29 SM-6040802-TN SCREW 2
30 SL-6061092-TN SCREW 4
31 SM-6041602-TN SCREW M4 X 16 4
32 NM-6030001-SC NUT M3 4
33 RE-0600000-K0 E-RING 6 2
34 SM-6040802-TN SCREW 2
35 E3020-700-000 PROXIMITY SENSOR BRACKET 2
36 SL-4030691-SC SCREW M3X6 4
37 SM-5040601-SC SCREW M4X0.7 L=6 20
38 SL-6061292-TN SCREW 2
39 SL-4040891-SC SCREW M4 L=8 4
40 SM-6061602-TN SCREW M6 L=16 4
41 SL-6061692-TN BOLT 8
42 400-48933 CG BOTOM FRAME 1
- -
6. DOOR UNIT
2
3
4
5
5
7
1 3
9
1 0
2
1 2
1 0
6
1 51 6
6
1 0
1 2
2
1 0
9
8
1 3
1 8
1 8
1 9
1 92 0
2 0
1 7 2 1 2 3 1 4 2 1 2 3
2 4
2 5
2 6
5
5
2 7
2 8
2 9
3 0
3 1
3 2
3 1
3 2
3 3
3 4
3 5
3 8
4 0
3 9
3 4
1
1
3 6
3 5
4 2
4 2
4 1
4 3
1 1
4 4
4 5
3 7
3 6
3 7
4 0
- -

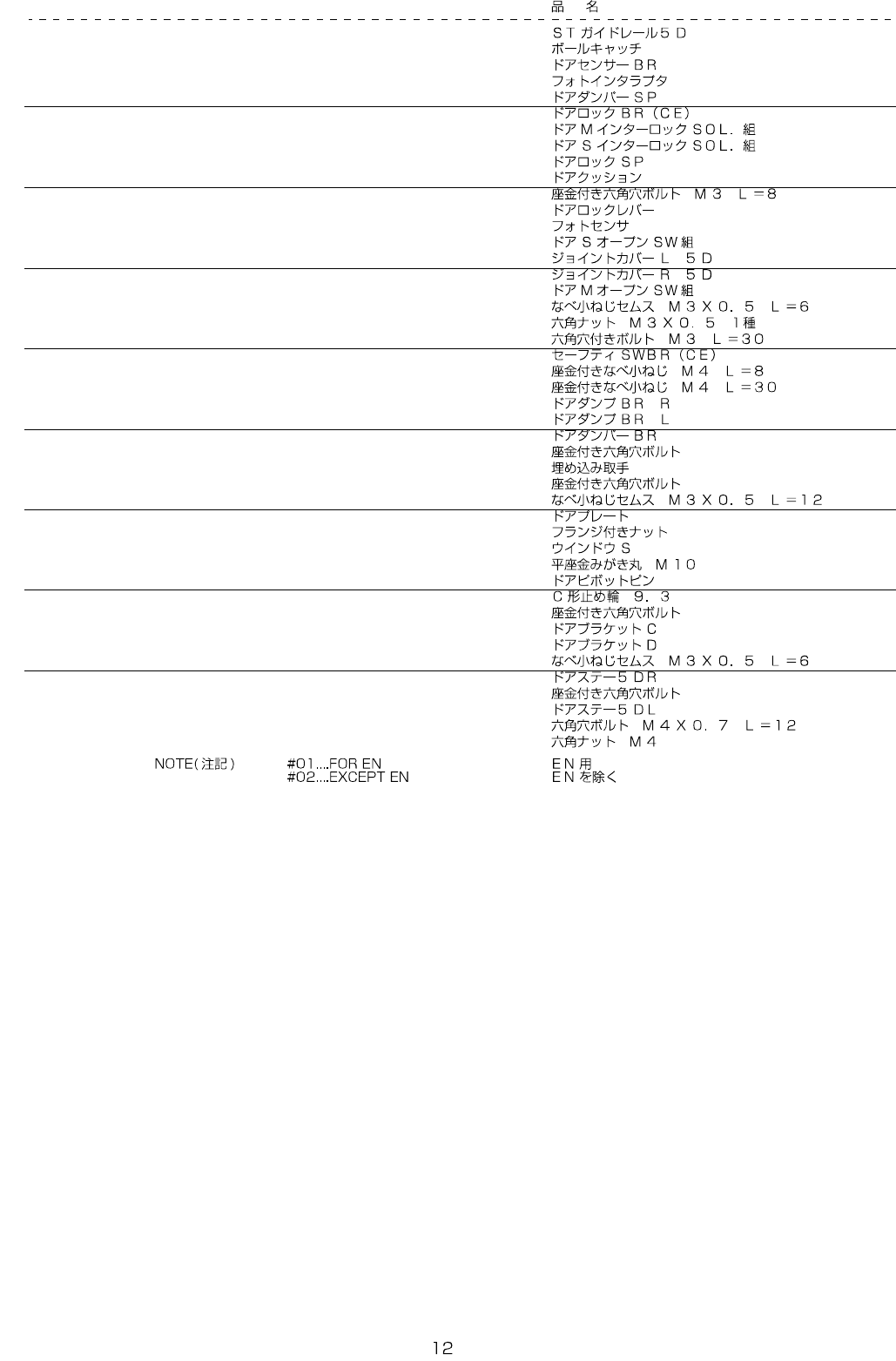

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49100 ST GUIDE RAIL 5D 4
2 400-51573 BALL CATCH 2
3
#02
400-52108 DOOR SENSOR BR 2
4
#02
HD-0017100-00 PHOTO SENSOR 2
5 E4508-717-000 DOOR DAMPER SP 4
6 400-50094 DOOR LOCK BR(CE) 2
7 400-45098 DOOR M INTERLOCK SOL. ASM 1
8 400-45100 DOOR S INTERLOCK SOL. ASM 1
9 E1055-717-000 DOOR LOCK SP 2
10 E1524-716-000 DOOR CUSHION 4
11 SL-6030892-TN SCREW M3 L=8 4
12 E4559-717-000 DOOR LOCK LEVER 2
13 HD-0005700-0A PHOTO SENSOR 2
14
#01
400-49626 DOOR S OPEN SW ASM 1
15
#01
400-50026 JOINT COVER L 5D 1
16
#01
400-50025 JOINT COVER R 5D 1
17
#01
400-49621 DOOR M OPEN SW ASM 1
18 SL-4030691-SC SCREW M3X6 4
19 NM-6030001-SC NUT M3 2
20 SM-6033002-TP SCREW M3 L=30 2
21
#01
E6208-723-000 SAFETY SW BR(CE) 2
22
#01
SL-4040891-SC SCREW M4 L=8 4
23
#01
SL-4043091-SC SCREW M4 L=30 4
24 400-49278 DOOR DAMP BR R 1
25 400-49277 DOOR DAMP BR L 1
26 400-48786 DOOR DAMPER BR 1
27 SL-6041092-TN SCREW 2
28 400-48894 EMBEDDED PULLS 1
29
#02
SL-6041092-TN SCREW 4
30
#02
SL-4031291-SC SCREW M3X12 2
31 400-48854 DOOR PLATE 4
32 NM-3040510-SL FLANGE NUT 8
33 400-48926 WINDOW S 1
34 WP-1052001-SC WASHER 10,5X21X2 8
35 E4503-717-000 DOOR PIVOT PIN 4
36 RC-0100001-KP SNAP RING M10 4
37 SL-6041092-TN SCREW 4
38 E6042-723-000 DOOR BR C 2
39 E6043-723-000 DOOR BR D 2
40 SL-4030691-SC SCREW M3X6 8
41 E6134-723-000 DOOR STAY 5D R 2
42 SL-6041092-TN SCREW 8
43 E6133-723-000 DOOR STAY 5D L 2
44 SM-6041202-TN SCREW M4X0.7 L=12 2
45 NM-6040001-SC NUT M4 2
