TR5DNR_TR5DNX-Rev04 - 第19页
- - REF.NO NOTE PA RT NO D E S C R I P T I O N Qty 1 400- 45060 Y MO TOR ASM 1 2 E5 340-723-000 Y MOTOR BRACKET 1 3 E1 341-726-000 Y DRIVE PULLEY 1 4 400- 48916 FAN B R 5S 1 5 400- 49579 FAN MOT OR(Y MOT OR) ASM 1 6 #0…
- -

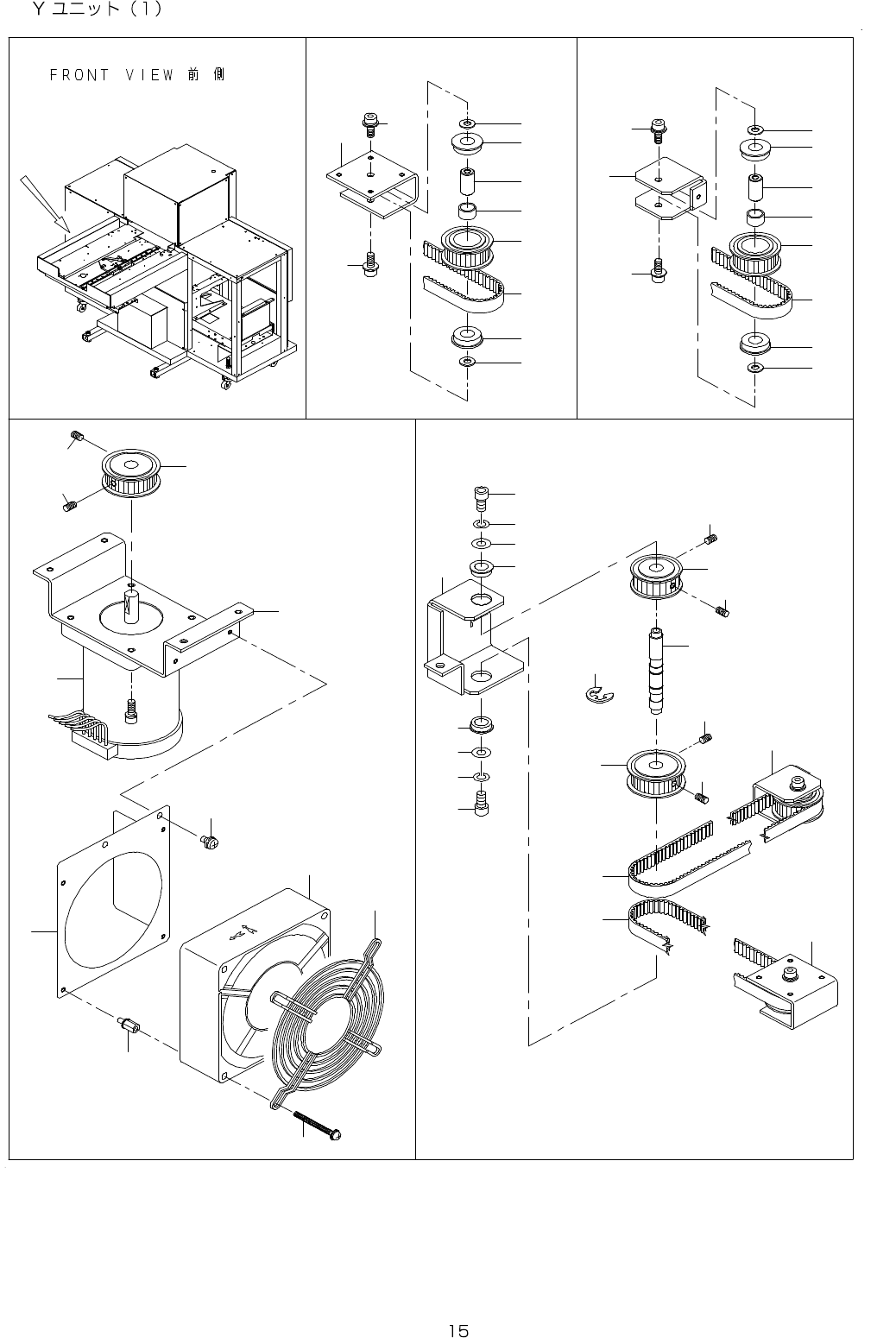

8. Y UNIT (1)
1
2
3
4
5
1 3
8
9
1 0
1 1
1 2
1 2
2 0
1 8
1 9
1 7
1 6
1 5
1 4
2 1
2 2
2 3
2 4
2 5
2 0
7
6
2 6
2 6
2 7
2 7
2 8
2 8
1 3
2 9
2 9
2 1
3 0
3 0
3 1
3 2
3 4
3 4
3 5
3 6
3 6
3 3
3 8
3 9
3 3
3 8
3 9
1 4
3 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45060 Y MOTOR ASM 1
2 E5340-723-000 Y MOTOR BRACKET 1
3 E1341-726-000 Y DRIVE PULLEY 1
4 400-48916 FAN BR 5S 1
5 400-49579 FAN MOTOR(Y MOTOR) ASM 1
6
#01
HX-0035400-0B PCB SUPPORT L=8MM 4
7
#01
HM-0017800-10 FINGER GUARD 1
8 E1352-726-000 Y TENSION PULLEY SH 1
9 E1353-726-000 BEARING SPACER 1
10 E1351-726-000 YJ TENSIONER PULLEY 1
11 E5313-723-000 Y BELT 1
12 400-48911 YF PULLEY BR 1
13 SB-1080002-00 SIDE BEARING 2
14 SB-1060007-00 BALL BEARING 2
15 E1362-726-000 YJ PULLEY 1
16 E1361-726-000 YJ SHAFT 1
17 E1341-726-000 Y DRIVE PULLEY 1
18 E5313-723-000 Y BELT 1
19 E5315-723-000 YJ BELT 1
20 400-48913 YJ TENSIONER 1
21 SB-1080002-00 SIDE BEARING 2
22 E1352-726-000 Y TENSION PULLEY SH 1
23 E1353-726-000 BEARING SPACER 1
24 E1351-726-000 YJ TENSIONER PULLEY 1
25 E5315-723-000 YJ BELT 1
26 SL-6040892-TN BOLT 2
27 WP-0430801-SC WASHER 4.3X9X0.8 2
28 SL-6040892-TN BOLT 2
29 WP-0430801-SC WASHER 4.3X9X0.8 2
30 SM-8040602-TP SCREW M4X0.7 L=6 2
31 SL-4030691-SC SCREW M3X6 2
32 SL-4034091-SC SCREW M3X40 4
33 SM-6040802-TN SCREW 2
34 SM-8040602-TP SCREW M4X0.7 L=6 2
35 RE-0700000-K0 E-RING 7 2
36 SM-8040602-TP SCREW M4X0.7 L=6 2
37 400-48912 YJ BRACKET 1
38 WS-0410002-KN SPRING WASHER 2
39 WP-0430801-SC WASHER 4.3X9X0.8 2
- -
9. Y UNIT (2)
1
2
3
4
5
6
1 2
1 3
1 6
1 5
1 4
3
1 1
1 0
9
7
8
3
1 7
1 8
2 9
2 8
2 7
2 8
1 1
1 6
1 9
2 0
2 1
2 2
2 4
2 5
2 6
3 3
3 4
3 5
2 3
4 3
4 3
4 4
4 1
4 2
4 5
4 6
3 1
3 0
3 2
3 7
3 6
3 8
3 9
4 0
