- - 10. Y UNIT (3) 2 3 9 1 0 1 1 1 2 1 4 1 5 1 6 2 1 1 7 1 8 2 5 2 2 2 3 2 4 2 0 1 9 3 0 3 1 3 2 3 3 2 8 3 4 3 7 8 4 5 6 7 2 6 2 7 3 8 3 8 1 3 3 5 3 6 2 9 1 4 9 5 0 5 1 5 2 5 3 5 4 5 5 5 0 4 9 3 2 3 3 5 3 5 4 1 5 1 5 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 NM-6030003-SC NUT M3 1
2 WS-0310002-KN SPRING WASHER M3 1
3 E1425-726-000 CHUCK OPEN/CLOSE BRACKET 1
4 E1426-726-000 CHUCK OPEN/CLOSE STUD 1
5 SB-1030002-00 BEARING 1
6 RE-0200000-K0 E-RING 1
7 E1420-726-0A0 MARK ASM. 1
8 E6137-723-000 Y HOLD BASE LA 1
9 400-48807 Y HOLD ROLLER 1
10 E1401-726-000 TRAY CHUCK PIN 1
11 RE-0300000-K0 E-RING 3 2
12 E1401-726-000 TRAY CHUCK PIN 1
13 400-48807 Y HOLD ROLLER 1
14 E6138-723-000 Y HOLD BASE RA 1
15 E1420-726-0A0 MARK ASM. 1
16 RE-0300000-K0 E-RING 3 2
17 SB-1060007-00 BALL BEARING 1
18 400-49268 PIVOT SLEEVE 1
19 E1452-726-000 CHUCK BASE H 1
20 400-48776 HOLDER GUIDE 1
21 E1458-726-000 CHUCK SP A 1
22 E1459-726-000 SP GUIDE SHAFT 1
23 E1390-726-000 Y SENSOR DOG 1
24 400-49188 Y SLIDER GUIDE 2
25 E1455-726-000 STOPPER BOLT 2
26 400-49269 Y SLIDE LINK 1
27 400-49267 PIVOT COLLAR 1
28 SB-1060007-00 BALL BEARING 2
29 400-49266 PIVOT SLEEVE A 1
30 SM-6030802-TN BOLT 8
31 SM-6030602-TN HEX SCREW M3 X 6 1
32 SM-6030502-TN SCREW M3 L=5 4
33 400-48919 Y SLIDER BASE 1
34 PH-0400122-C0 PIN 2
35 SL-6030642-TN SCREW M3 L=6 2
36 SL-6030642-TN SCREW M3 L=6 2
37 SL-6030642-TN SCREW M3 L=6 2
38 SL-6042592-TN SCREW 1
39 NM-6040001-SC NUT M4 1
40 400-49273 SCREW 1
41 400-49270 COVER PLATE L 1
42 400-49271 COVER PLATE R 1
43 400-49272 COLLAR 4
44 SM-1030601-SC SCREW M3 L=6 4
45 SM-6030802-TN BOLT 6
46 SM-6030802-TN BOLT 4
- -
10. Y UNIT (3)
2
3
9
1 0
1 1
1 2
1 4
1 5
1 6
2 1
1 7
1 8
2 5
2 2
2 3
2 4
2 0
1 9
3 0
3 1
3 2
3 3
2 8
3 4
3 7
8
4
5
6
7
2 6
2 7
3 8
3 8
1 3
3 5
3 6
2 9
1
4 9
5 0
5 1
5 2
5 3
5 4
5 5
5 0
4 9
3
2
3
3
5 3
5 4
1 5
1 5
1 5
1 6
5 6
2 8
4 1
4 2
3 9
4 8
4 7
4 0
4 4
4 3
4 6
5 7
5 8
5 9
6 0
6 2
6 1
6 8
7 0
6 9
7 2
6 7
6 6
6 5
6 4
6 3
7 1
7 1
3 8
7 7
7 8
7 9
7 6
7 5
7 4
7 3
4 5
4 5
4 6
- -

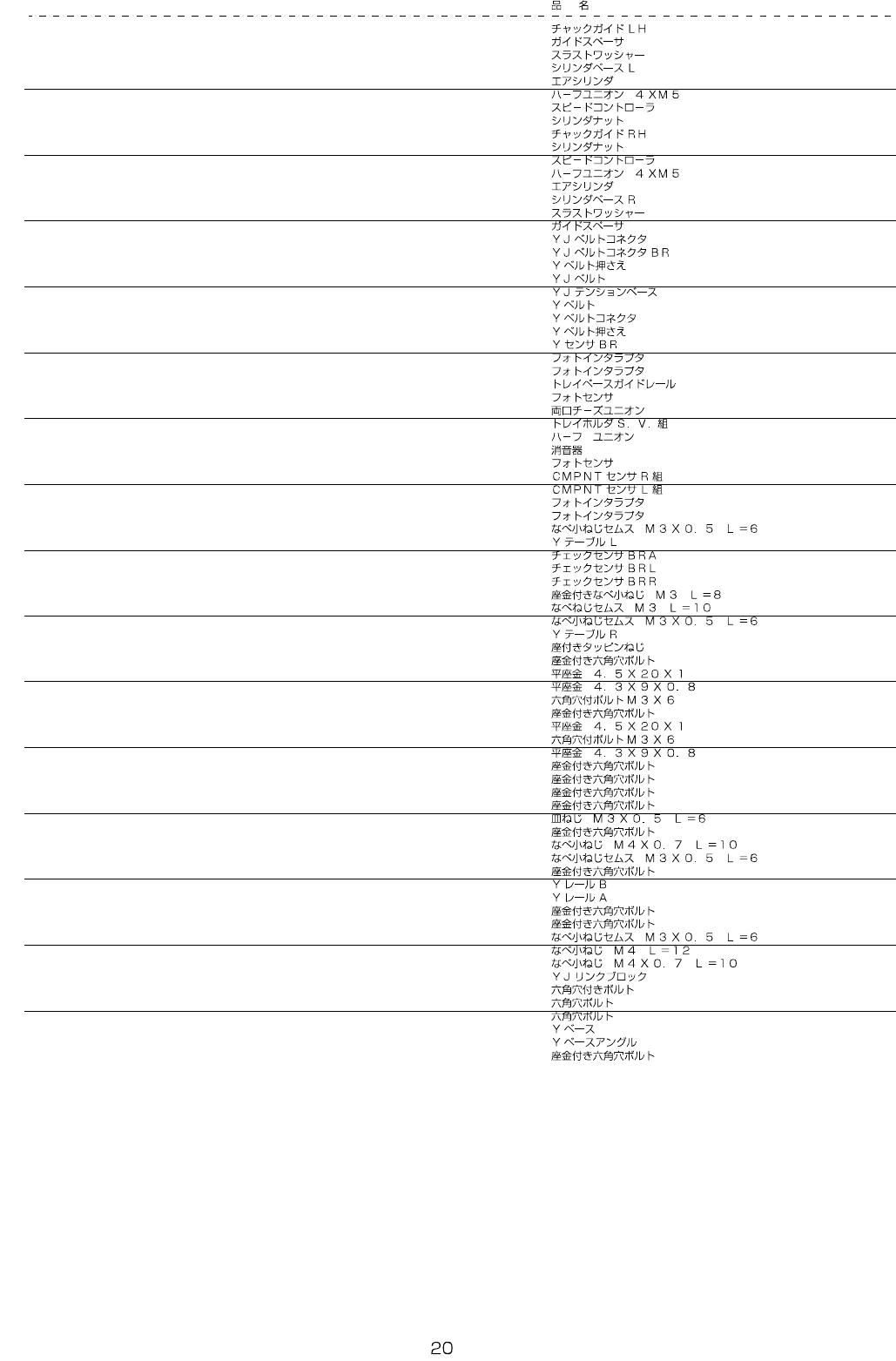

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48712 CHUCK GUIDE LH 1
2 E3403-715-000 GUIDE SPACER 2
3 E3404-700-000 THRUST WASHER 4
4 E1430-726-000 CYLINDER BASE L 1
5 PA-1001524-A0 AIR CYLINDER 1
6 PJ-3010405-02 HALF UNION 4XM5 1
7 PC-0105080-00 SPEED CONTROLLER 1
8 E1432-726-000 CYLINDER NUT 1
9 400-48713 CHUCK GUIDE RH 1
10 E1432-726-000 CYLINDER NUT 1
11 PC-0105080-00 SPEED CONTROLLER 1
12 PJ-3010405-02 HALF UNION 4XM5 1
13 PA-1001524-A0 AIR CYLINDER 1
14 E1440-726-000 CYLINDER BASE R 1
15 E3404-700-000 THRUST WASHER 4
16 E3403-715-000 GUIDE SPACER 2
17 E1320-726-000 YJ BELT CONNECTOR 1
18 400-48910 YJ BELT CONN BR 1
19 E1317-726-000 Y BELT PRESSER 1
20 E5315-723-000 YJ BELT 1
21 400-48909 YJ TENSION BASE 1
22 E5313-723-000 Y BELT 1
23 E5314-723-000 Y BELT CONNECTOR 1
24 E1317-726-000 Y BELT PRESSER 1
25 E1328-726-000 Y SENSOR BRACKET 1
26 HD-0017000-00 PHOTO SENSOR 1
27 HD-0017100-00 PHOTO SENSOR 1
28 E5319-723-000 TRAY BASE GUIDE RAIL 2
29 HD-0009000-00 PHOTO SENSOR 2
30 PJ-3050405-02 T-UNION 2
31 400-49595 TRAY HLD S.V. ASM 1
32 PJ-3010605-03 HALF UNION 1
33 PX-0505010-00 SILENCER 2
34 HD-0009000-00 PHOTO SENSOR 1
35 400-49597 CMPNT SENSOR R ASM 1
36 400-49599 CMPNT SENSOR L ASM 1
37 HD-0017000-00 PHOTO SENSOR 1
38 HD-0017100-00 PHOTO SENSOR 5
39 SL-4030691-SC SCREW M3X6 11
40 E5317-723-000 Y TABLE L 1
41 400-48977 CHEACK SENSOR BRA 4
42 400-48975 CHEACK SENSOR BRL 1
43 400-48976 CHEACK SENSOR BRR 1
44 SL-4030881-SC SCREW M3 L=8 4
45 SL-4031081-SC SCREW M3 X 10 8
46 SL-4030691-SC SCREW M3X6 4
47 400-49265 Y TABLE R 1
48 SV-4031006-SR SCREW M3 L=10 8
49 SL-6040842-TN SCREW M4 L=8 2
50 WP-0451016-SP WASHER 4.5X20X1 2
51 WP-0430801-SC WASHER 4.3X9X0.8 1
52 SM-6030692-TN SCREW M3X6 2
53 SL-6040842-TN SCREW M4 L=8 2
54 WP-0451016-SP WASHER 4.5X20X1 2
55 SM-6030692-TN SCREW M3X6 2
56 WP-0430801-SC WASHER 4.3X9X0.8 1
57 SL-6040842-TN SCREW M4 L=8 2
58 SL-6040892-TN BOLT 2
59 SL-6031042-TN SCREW 4
60 SL-6040842-TN SCREW M4 L=8 2
61 SM-1030601-SC SCREW M3 L=6 2
62 SL-6030692-TN BOLT 2
63 SM-4041001-SC SCREW M4X0.7 L=10 2
64 SL-4030691-SC SCREW M3X6 2
65 SL-6040842-TN SCREW M4 L=8 3
66 400-48778 Y RAIL B 1
67 400-48779 Y RAIL A 1
68 SL-6030842-TN SCREW M3 L=8 4
69 SL-6031042-TN SCREW 4
70 SL-4030691-SC SCREW M3X6 2
71 SM-4041201-SC SCREW M4 L=12 4
72 SM-4041001-SC SCREW M4X0.7 L=10 2
73 E1314-726-000 YJ LINK BLOCK 1
74 SM-6030402-TN BOLT M3X4 4
75 SM-6030802-TN BOLT 8
76 SM-6030802-TN BOLT 8
77 400-48711 Y BASE 1
78 400-48915 Y BASE ANGLE 1
79 SL-6040842-TN SCREW M4 L=8 8
