REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-50174 TRAY UNIT(ST) 1
2 E1552-726-000 TRAY BASE SUPPORT (1)
3 E1553-726-000 TRAY SUPPORT SHEET (1)
4 SM-4030401-SC SCREW M3X0.5 L=4 (4)
5 E1570-726-000 TRAY HOLDER (ST) (1)
6 E1571-726-000 TRAY CLAMP (1)
7 E1572-726-000 TRAY CLAMP SHEET (1)
8 E1573-726-000 TRAY CLAMP SH (2)
9 E1574-726-000 TRAY CLAMP SP 4N (2)
10 RE-0200000-K0 E-RING (2)
11 E1575-726-000 HOLDER SD PLATE B (2)
12 WS-0310002-KN SPRING WASHER M3 (2)
13 NM-9030001-SC NUT (2)
14 E1582-726-000 HOLDER SHEET (2)
15 400-48961 TRAY BASE (1)
16
#01
400-50175 TRAY UNIT(A) 1
17 E1552-726-000 TRAY BASE SUPPORT (1)
18 E1553-726-000 TRAY SUPPORT SHEET (1)
19 SM-4030401-SC SCREW M3X0.5 L=4 (4)
20 E1576-726-000 TRAY HOLDER(A) (2)
21 E1577-726-000 TRAY HOLDER SHEET (2)
22 E1575-726-000 HOLDER SD PLATE B (2)
23 NM-9030001-SC WING NUT M3X0.5 TYPE1 (2)
24 E1578-726-000 TRAY HOLDER S (1)
25 E1577-726-000 TRAY HOLDER SHEET (1)
26 E1579-726-000 SIDE HOLDER (1)
27 E1580-726-000 TRAY HOLDER NUT (1)
28 E1581-726-000 TRAY HOLDER NOB (1)
29 E1575-726-000 HOLDER SD PLATE B (1)
30 NM-9030001-SC WING NUT M3X0.5 TYPE1 (1)
31 400-48961 TRAY BASE (1)
32
#01
400-51150 2INCH TRAY UNIT 1
33 400-48961 TRAY BASE (1)
34 E1552-726-000 TRAY BASE SUPPORT (1)
35 E1553-726-000 TRAY SUPPORT SHEET (1)
36 SM-4030401-SC SCREW M3X0.5 L=4 (4)
37 400-51151 2INCH TRAY ADAPTER (1)
38 E1570-726-000 TRAY HOLDER (ST) (1)
39 400-48980 TRAY CLAMP (1)
40 E1573-726-000 TRAY CLAMP SH (2)
41 E1574-726-000 TRAY CLAMP SP 4N (2)
42 E1575-726-000 HOLDER SD PLATE B (2)
43 E1582-726-000 HOLDER SHEET (2)
44 NM-9030001-SC WING NUT M3X0.5 TYPE1 (2)
45 RE-0200000-K0 E-RING 2 (2)
46 WS-0310002-KN SPRING WASHER M3 (2)
47 400-48981 TRAY CLAMP PL (1)
48 400-48982 TRAY CLAMP A (1)
49 400-48983 TRAY CLAMP B (1)
50 400-48984 TRAY CLAMP NUT (2)
51 400-48985 TRAY CLAMP NOB (2)
52 NM-3034000-SF FLANGE NUT M3 (2)
53
#06
SL-4040891-SC SCREW M4 L=8 1
54 BT-0600400-EC TUBE HOSE, BLUE 5
55 E1348-700-000 SAFETY COVER STOPPER 1
56
#02
E9455-723-0A0 I/F CABLE ASM 1
57
#03
400-96157 MTC/MTS I/F CABLE ASM 1
58 SL-6030692-TN SCREW M3 L=6 2
59 SM-6052002-TN BOLT 1
60 WP-0531001-SC WASHER M5 1
61 400-49283 FIX Y 5S 1
62
#04
E9454-723-AA0 AC CABLE ASM(CE) 1
63
#05
400-49752 AC PWR CABLE(TR5CE) ASM 1
- -

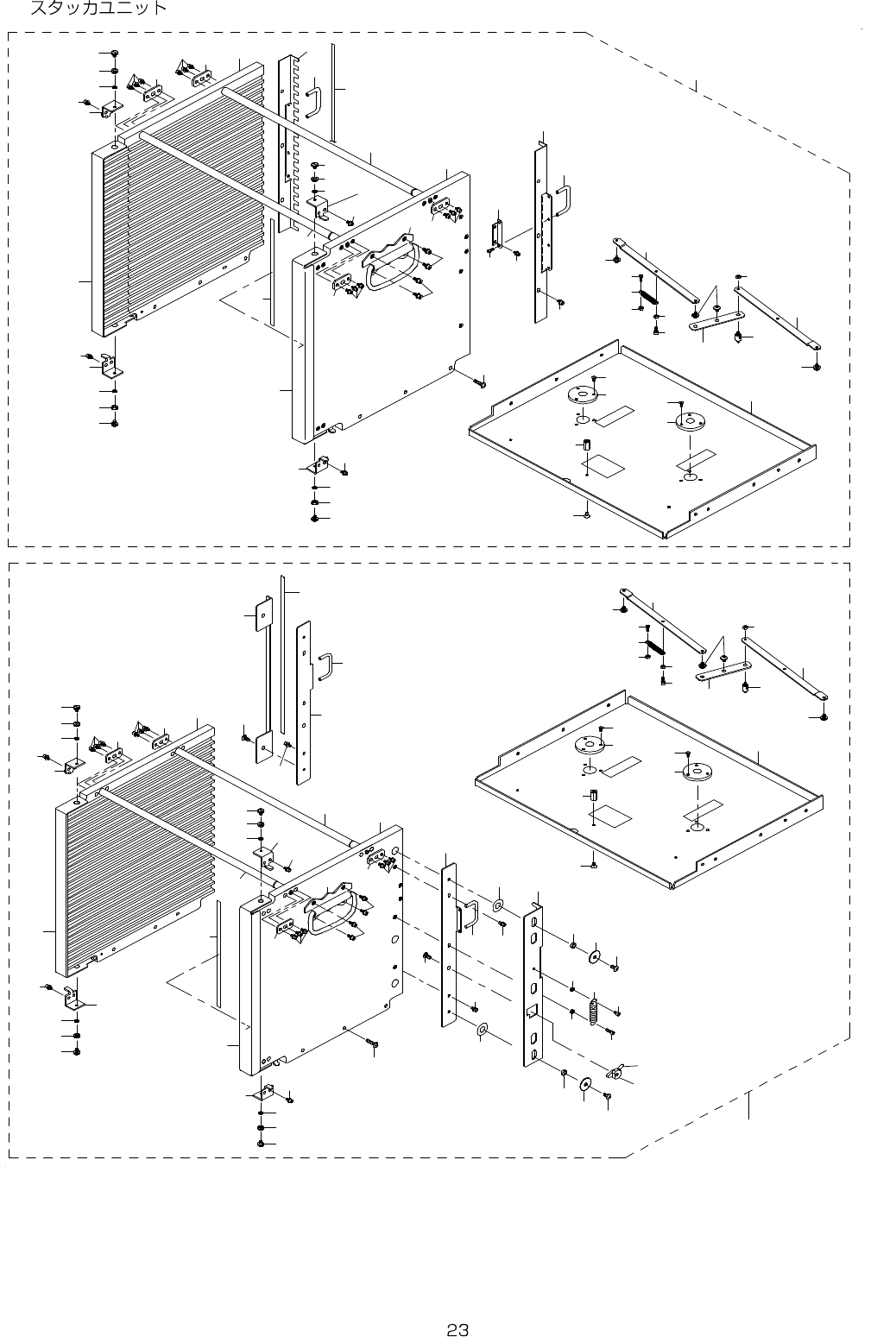

12. STACKER UNIT
1
2
4 0
4
4
5
5
6
6
7
7
4 5
9
9
1 0
1 1
1 2
1 3
1 2
1 3
1 4
1 5
1 5
1 8
1 9
1 9
1 6
1 9
2 0
3 4
2 5
2 1
2 1
2 2
2 2
2 4
1 7
2 3
2 4
2 3
2 6
2 7
2 8
2 9
3 0
3 1
3 2
5
2 6
2 6
5
2 6
8
2 1
1 2
1 6
1 3
2 1
1 2
1 3
9
3 2
3 2
3 3
3 5
3 5
3 6
3 7
3 2
4 2
6 2
5 8
5 8
4 2
6 2
4 1
4 1
4 9
4 8
5 7
6 5
4 2
6 2
3 9
4 2
6 2
4 9
4 8
4 5
5 7
5 7
4 8
4 9
6 5
4 5
4 7
6 5
5 7
4 8
4 9
4 6
5 5
5 2
5 6
5 5
5 4
5 0
5 5
5 1
5 1
6 8
6 6
6 0
5 3
6 0
5 9
5 9
5 2
6 7
6 7
6 9
8 6
8 7
7 5
8 7
4 3
7 9
7 8
7 7
7 7
7 8
7 9
7 8
7 4
7 6
4 3
6 1
7 2
7 0
7 3
7 1
3 8
8 3
8 2
8 0
8 0
8 1
4 4
6 3
6 4
6 5
4 5
8 4
8 5
3
9
- -

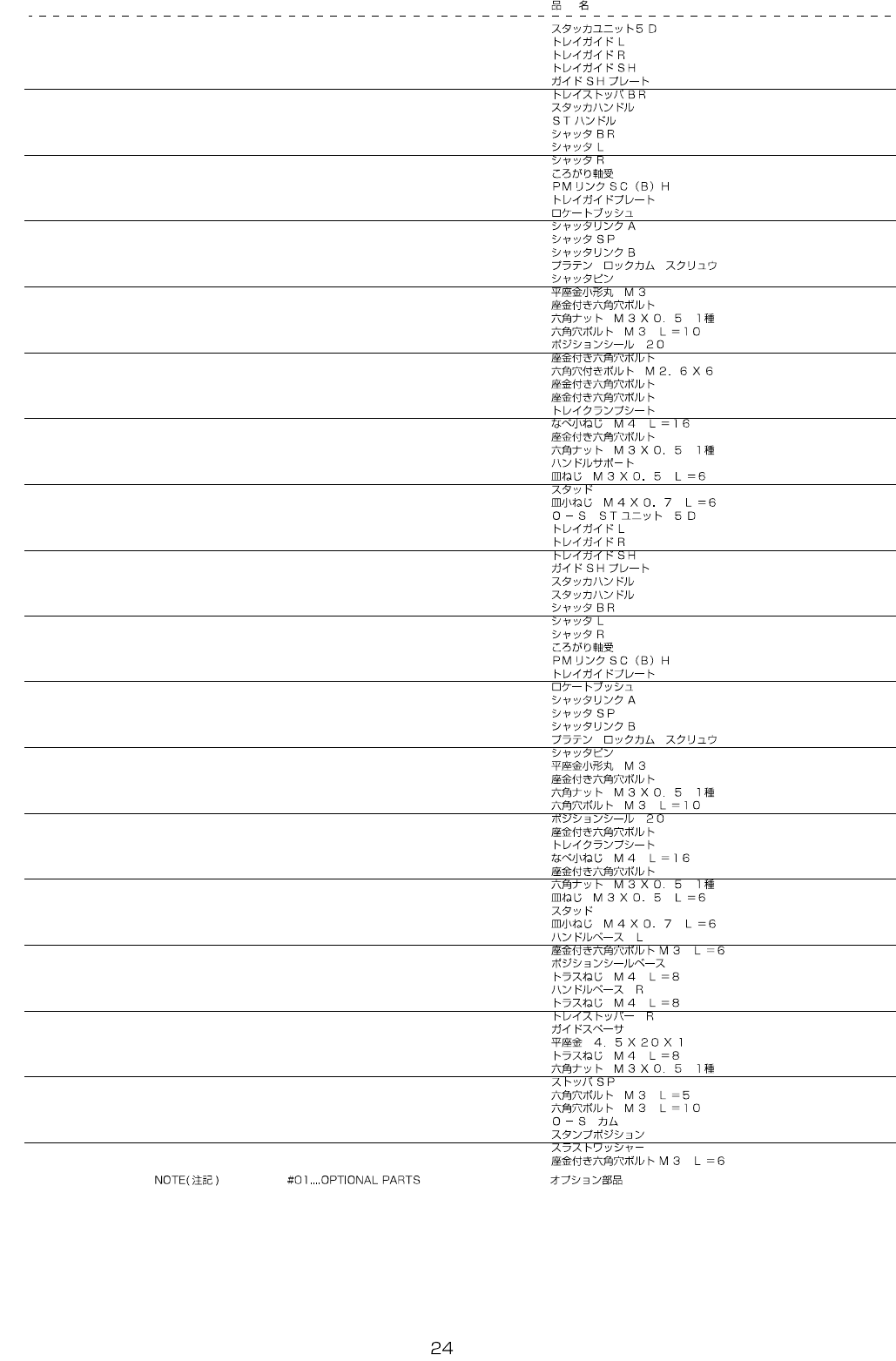

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49972 ST UNIT 5D 1
2 400-48756 TRAY GUIDE L (1)
3 400-48757 TRAY GUIDE R (1)
4 E1502-726-000 TRAY GUIDE SH (2)
5 E1504-726-000 GUIDE SH PLATE (4)
6 E6103-723-000 TRAY STOPPER BRACKET (2)
7 E4607-717-000 STACKER HANDLE (2)
8 E1515-726-000 ST HANDLE (2)
9 E6104-723-000 SHUTTER BR (4)
10 E6105-723-000 SHUTTER L (1)
11 E6106-723-000 SHUTTER R (1)
12 SB-1040004-00 ROLLING SHAFT HOLDER (4)
13 E4560-531-000 PM LINK SC (B) H (4)
14 E6107-723-000 TRAY GUIDE PLATE (1)
15 E6108-723-000 LOCATE BUSH (2)
16 E6109-723-000 SHUTTER LINK A (2)
17 E6110-723-000 SHUTTER SP (1)
18 E6111-723-000 SHUTTER LINK (1)
19 E1038-871-000 PLATEN LOCK CAM SCREW (4)
20 E6112-723-000 SHUTTER PIN (1)
21 WP-0320500-SC WASHER M3 (4)
22 SL-6030892-TN SCREW (8)
23 NM-6030001-SC NUT M3 (2)
24 SM-6031002-TN BOLT M3 L=10 (2)
25 E1516-726-000 POSITION SEAL 20 (1)
26 SL-6030692-TN BOLT (12)
27 SM-6860602-UZ SCREW (4)
28 SL-6030692-TN BOLT (4)
29 SL-6030692-TN BOLT (6)
30 E1572-726-000 TRAY CLAMP SHEET (1)
31 SM-4041601-SC SCREW M4X0.7 L=16 (6)
32 SL-6030692-TN BOLT (8)
33 NM-6030001-SC NUT M3 (1)
34 E6114-723-000 HANDLE SUPPORT (2)
35 SM-1030601-SC SCREW M3 L=6 (6)
36 E6135-723-000 STUD (1)
37 SM-1040601-SC SCREW M4X0.7 L=6 (1)
38
#01
400-51707 O-S ST UNIT 5D 1
39
#01
400-48756 TRAY GUIDE L (1)
40
#01
400-48757 TRAY GUIDE R (1)
41
#01
E1502-726-000 TRAY GUIDE SH (2)
42
#01
E1504-726-000 GUIDE SH PLATE (4)
43
#01
E4607-717-000 STACKER HANDLE (2)
44
#01
E1515-726-000 ST HANDLE (2)
45
#01
E6104-723-000 SHUTTER BR (4)
46
#01
E6105-723-000 SHUTTER L (1)
47
#01
E6106-723-000 SHUTTER R (1)
48
#01
SB-1040004-00 ROLLING SHAFT HOLDER (4)
49
#01
E4560-531-000 PM LINK SC (B) H (4)
50
#01
E6107-723-000 TRAY GUIDE PLATE (1)
51
#01
E6108-723-000 LOCATE BUSH (2)
52
#01
E6109-723-000 SHUTTER LINK A (2)
53
#01
E6110-723-000 SHUTTER SP (1)
54
#01
E6111-723-000 SHUTTER LINK (1)
55
#01
E1038-871-000 PLATEN LOCK CAM SCREW (4)
56
#01
E6112-723-000 SHUTTER PIN (1)
57
#01
WP-0320500-SC WASHER M3 (4)
58
#01
SL-6030892-TN SCREW (8)
59
#01
NM-6030001-SC NUT M3 (2)
60
#01
SM-6031002-TN BOLT M3 L=10 (2)
61
#01
E1516-726-000 POSITION SEAL 20 (1)
62
#01
SL-6030692-TN BOLT (12)
63
#01
E1572-726-000 TRAY CLAMP SHEET (1)
64
#01
SM-4041601-SC SCREW M4X0.7 L=16 (6)
65
#01
SL-6030692-TN BOLT (8)
66
#01
NM-6030001-SC NUT M3 (1)
67
#01
SM-1030601-SC SCREW M3 L=6 (6)
68
#01
E6135-723-000 STUD (1)
69
#01
SM-1040601-SC SCREW M4X0.7 L=6 (1)
70
#01
400-49959 HANDLE BASE L (1)
71
#01
SL-6030692-TN SCREW M3 L=6 (3)
72
#01
400-48761 POS.SEAL BASE (1)
73
#01
SM-0040801-SC SCREW (2)
74
#01
400-49958 HANDLE BASE R (1)
75
#01
SM-0040801-SC SCREW (1)
76
#01
400-49960 TRAY STOPPER R (1)
77
#01
E1519-726-000 GUIDE SPACER (2)
78
#01
WP-0451016-SP WASHER 4.5X20X1 (3)
79
#01
SM-0040801-SC SCREW (2)
80
#01
NM-6030001-SC NUT M3X0.5 TYPE1 (2)
81
#01
E1521-726-000 STOPPER SP (1)
82
#01
SM-6030502-TN SCREW M3 L=5 (1)
83
#01
SM-6031002-TN SCREW M3 L=10 (1)
84
#01
400-49962 O-S CAM (1)
85
#01
400-46663 STAMP_POSITION (1)
86
#01
E3404-700-000 THRUST WASHER (1)
87
#01
SL-6030692-TN SCREW M3 L=6 (2)
