TR5DNR_TR5DNX-Rev04 - 第28页
- - 13. MOP B OX COM PON ENTS 1 3 3 1 9 9 2 4 7 8 5 6 1 7 1 8 1 2 1 2 9 2 1 4 1 1 1 5 1 0 1 2 1 2 1 6 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49972 ST UNIT 5D 1
2 400-48756 TRAY GUIDE L (1)
3 400-48757 TRAY GUIDE R (1)
4 E1502-726-000 TRAY GUIDE SH (2)
5 E1504-726-000 GUIDE SH PLATE (4)
6 E6103-723-000 TRAY STOPPER BRACKET (2)
7 E4607-717-000 STACKER HANDLE (2)
8 E1515-726-000 ST HANDLE (2)
9 E6104-723-000 SHUTTER BR (4)
10 E6105-723-000 SHUTTER L (1)
11 E6106-723-000 SHUTTER R (1)
12 SB-1040004-00 ROLLING SHAFT HOLDER (4)
13 E4560-531-000 PM LINK SC (B) H (4)
14 E6107-723-000 TRAY GUIDE PLATE (1)
15 E6108-723-000 LOCATE BUSH (2)
16 E6109-723-000 SHUTTER LINK A (2)
17 E6110-723-000 SHUTTER SP (1)
18 E6111-723-000 SHUTTER LINK (1)
19 E1038-871-000 PLATEN LOCK CAM SCREW (4)
20 E6112-723-000 SHUTTER PIN (1)
21 WP-0320500-SC WASHER M3 (4)
22 SL-6030892-TN SCREW (8)
23 NM-6030001-SC NUT M3 (2)
24 SM-6031002-TN BOLT M3 L=10 (2)
25 E1516-726-000 POSITION SEAL 20 (1)
26 SL-6030692-TN BOLT (12)
27 SM-6860602-UZ SCREW (4)
28 SL-6030692-TN BOLT (4)
29 SL-6030692-TN BOLT (6)
30 E1572-726-000 TRAY CLAMP SHEET (1)
31 SM-4041601-SC SCREW M4X0.7 L=16 (6)
32 SL-6030692-TN BOLT (8)
33 NM-6030001-SC NUT M3 (1)
34 E6114-723-000 HANDLE SUPPORT (2)
35 SM-1030601-SC SCREW M3 L=6 (6)
36 E6135-723-000 STUD (1)
37 SM-1040601-SC SCREW M4X0.7 L=6 (1)
38
#01
400-51707 O-S ST UNIT 5D 1
39
#01
400-48756 TRAY GUIDE L (1)
40
#01
400-48757 TRAY GUIDE R (1)
41
#01
E1502-726-000 TRAY GUIDE SH (2)
42
#01
E1504-726-000 GUIDE SH PLATE (4)
43
#01
E4607-717-000 STACKER HANDLE (2)
44
#01
E1515-726-000 ST HANDLE (2)
45
#01
E6104-723-000 SHUTTER BR (4)
46
#01
E6105-723-000 SHUTTER L (1)
47
#01
E6106-723-000 SHUTTER R (1)
48
#01
SB-1040004-00 ROLLING SHAFT HOLDER (4)
49
#01
E4560-531-000 PM LINK SC (B) H (4)
50
#01
E6107-723-000 TRAY GUIDE PLATE (1)
51
#01
E6108-723-000 LOCATE BUSH (2)
52
#01
E6109-723-000 SHUTTER LINK A (2)
53
#01
E6110-723-000 SHUTTER SP (1)
54
#01
E6111-723-000 SHUTTER LINK (1)
55
#01
E1038-871-000 PLATEN LOCK CAM SCREW (4)
56
#01
E6112-723-000 SHUTTER PIN (1)
57
#01
WP-0320500-SC WASHER M3 (4)
58
#01
SL-6030892-TN SCREW (8)
59
#01
NM-6030001-SC NUT M3 (2)
60
#01
SM-6031002-TN BOLT M3 L=10 (2)
61
#01
E1516-726-000 POSITION SEAL 20 (1)
62
#01
SL-6030692-TN BOLT (12)
63
#01
E1572-726-000 TRAY CLAMP SHEET (1)
64
#01
SM-4041601-SC SCREW M4X0.7 L=16 (6)
65
#01
SL-6030692-TN BOLT (8)
66
#01
NM-6030001-SC NUT M3 (1)
67
#01
SM-1030601-SC SCREW M3 L=6 (6)
68
#01
E6135-723-000 STUD (1)
69
#01
SM-1040601-SC SCREW M4X0.7 L=6 (1)
70
#01
400-49959 HANDLE BASE L (1)
71
#01
SL-6030692-TN SCREW M3 L=6 (3)
72
#01
400-48761 POS.SEAL BASE (1)
73
#01
SM-0040801-SC SCREW (2)
74
#01
400-49958 HANDLE BASE R (1)
75
#01
SM-0040801-SC SCREW (1)
76
#01
400-49960 TRAY STOPPER R (1)
77
#01
E1519-726-000 GUIDE SPACER (2)
78
#01
WP-0451016-SP WASHER 4.5X20X1 (3)
79
#01
SM-0040801-SC SCREW (2)
80
#01
NM-6030001-SC NUT M3X0.5 TYPE1 (2)
81
#01
E1521-726-000 STOPPER SP (1)
82
#01
SM-6030502-TN SCREW M3 L=5 (1)
83
#01
SM-6031002-TN SCREW M3 L=10 (1)
84
#01
400-49962 O-S CAM (1)
85
#01
400-46663 STAMP_POSITION (1)
86
#01
E3404-700-000 THRUST WASHER (1)
87
#01
SL-6030692-TN SCREW M3 L=6 (2)
- -

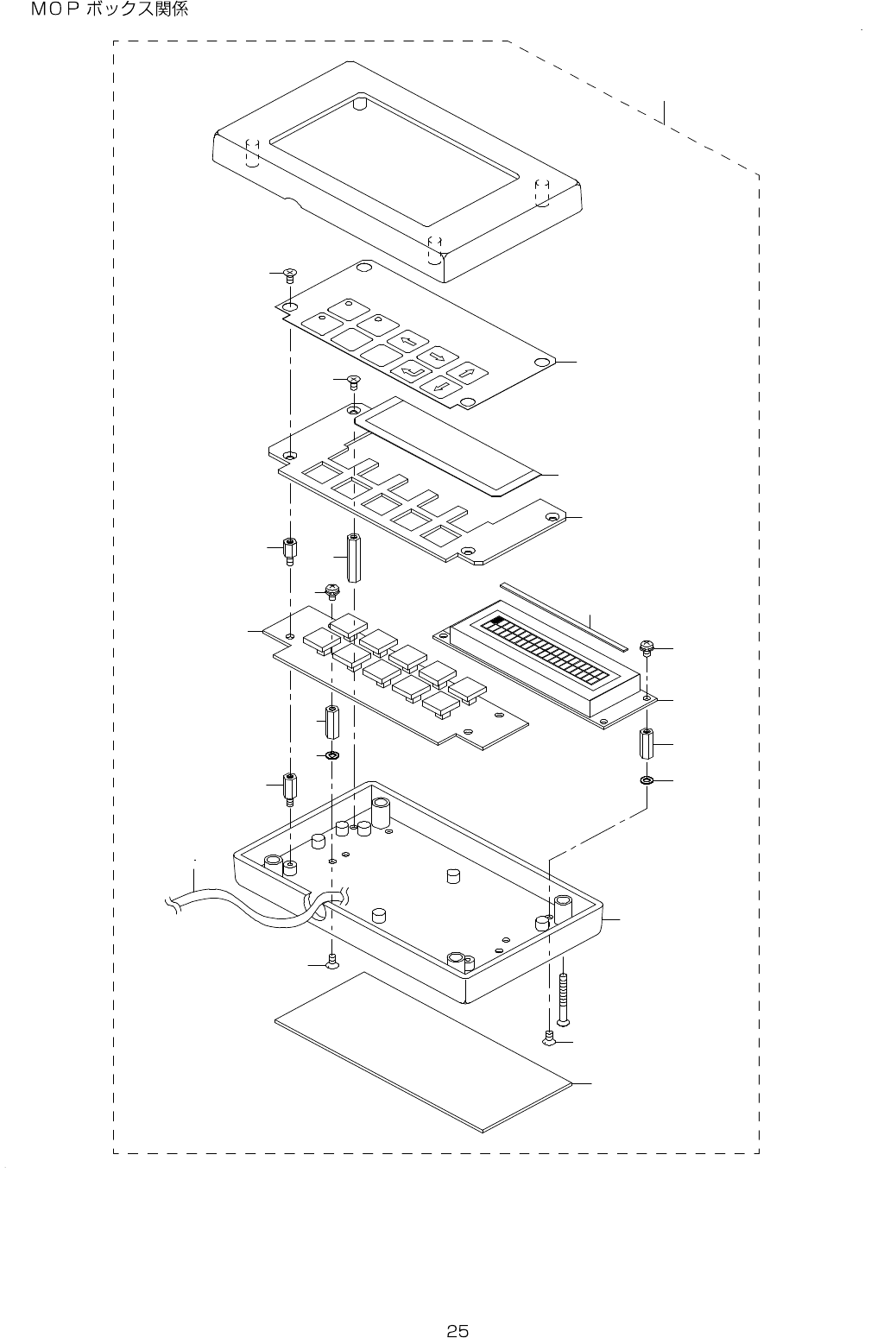

13. MOP BOX COMPONENTS
1 3
3
1 9
9
2
4
7
8
5
6
1 7 1 8
1 2
1 2
9
2
1 4
1 1
1 5
1 0
1 2
1 2
1 6
1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49974 OP BOX UNIT 5D 1
2 WP-0320500-SC WASHER M3 (6)
3 400-48826 OP BOX (1)
4 400-48827 OP BASE (1)
5 E2505-716-000 LCD COVER (1)
6 E2506-716-000 MOP MAGNET (1)
7 E2502-716-000 MOP PANEL SPACER (1)
8 400-49937 OP SHEET 5D (1)
9 SL-4030681-SC SCREW M3 L=6 (6)
10 HX-0035400-0B PCB SUPPORT L=8MM (2)
11 HX-0035400-0D BASE PARTS (2)
12 SM-1030601-SC SCREW M3 L=6 (12)
13 400-48828 STUD15.4 (4)
14 400-48829 STUD17 (2)
15 400-48830 STUD26.6 (2)
16 400-41206 HOD PCB ASM (1)
17 400-49604 PANEL CABLE ASM (1)
18 HN-0014900-00 CLAMP FILTER(L) (1)
19 400-46251 HOD LCD ASM (1)
