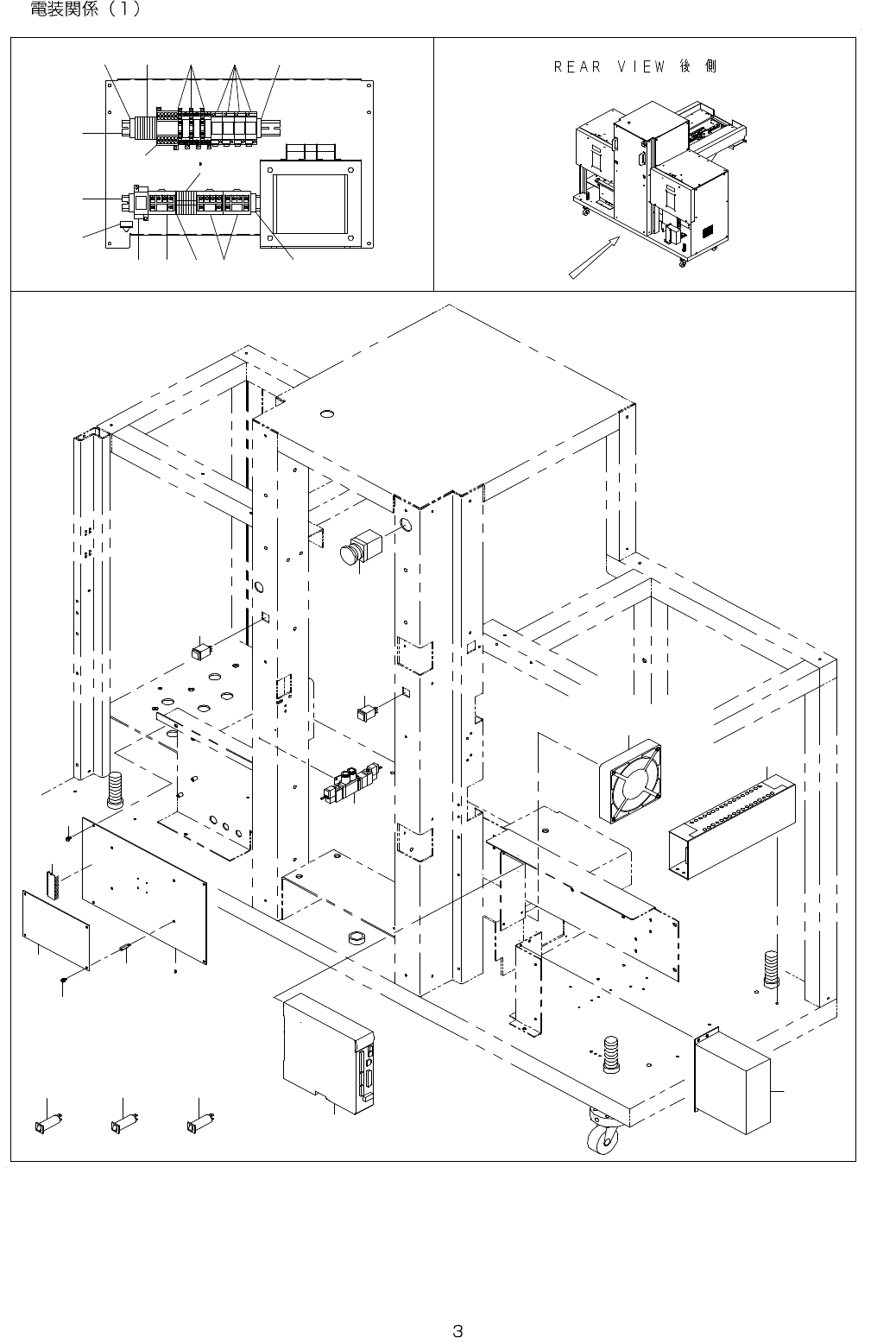

- - 2. EL ECTR IC APP ARATUS C OM PON ENT S (1) 1 4 1 5 1 5 1 8 1 7 1 3 1 2 4 2 3 1 5 8 3 2 1 6 1 0 1 9 1 1 9 1 3 2 1 2 0 2 2 2 3 2 4 2 5 2 6 2 7 2 8 3 0 3 3 2 9 6 7
- -

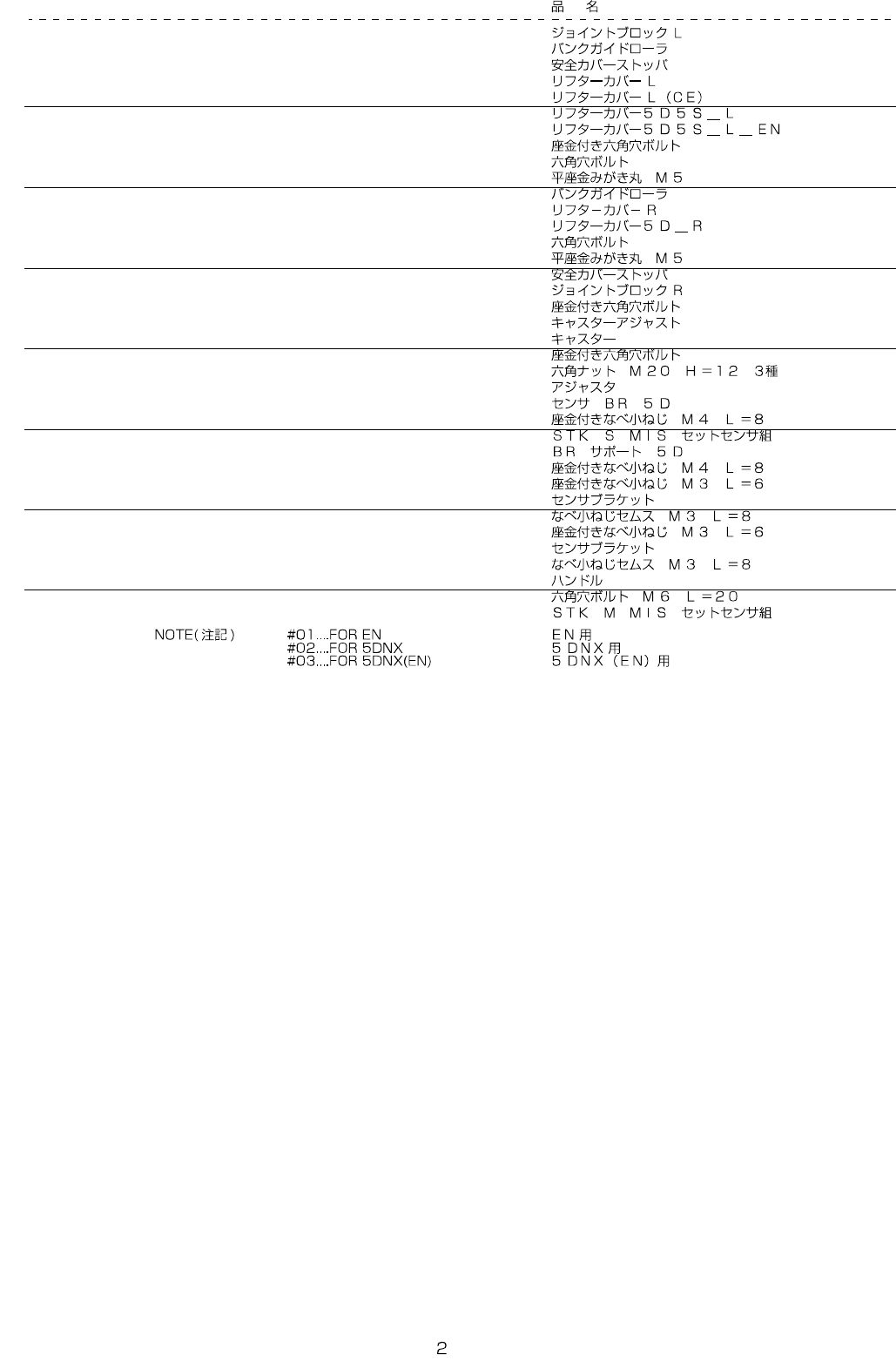

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E6004-723-000 JOINT BLOCK L 1
2 E2732-721-000 BANK GUIDE ROLLER 2
3 E1348-700-000 SAFETY COVER STOPPER 1
4 E1031-726-000 LIFTER COVER L 1
5
#01
E5615-723-000 LIFTER COVER L (CE) 1
6
#02
400-98279 LIFTER_COVER_5D5S_L 1
7
#03
400-98280 LIFTRE_COVER_5D5S_L_EN 1
8 SL-6051092-TN BOLT 2
9 SM-6052502-TN HEXAGONAL-HOLE BOLT 1
10 WP-0531001-SC WASHER 1
11 E2732-721-000 BANK GUIDE ROLLER 2
12 E6006-723-000 LIFTER COVER R 1
13
#02
400-98278 LIFTER_COVER_5D_R 1
14 SM-6052502-TN HEXAGONAL-HOLE BOLT 1
15 WP-0531001-SC WASHER 1
16 E1348-700-000 SAFETY COVER STOPPER 1
17 E6005-723-000 JOINT BLOCK R 1
18 SL-6051092-TN BOLT 2
19 E6002-723-000 CASTER ADJUST 4
20 E5012-723-000 CASTER 4
21 SL-6061242-TN BOLT 16
22 NM-6201202-SC NUT M20 7
23 400-49351 ADJUSTER 3
24 400-48732 SENSOR BR 5D 2
25 SL-4040891-SC SCREW M4 L=8 8
26 400-49548 STK S MIS SET SENSOR ASM 1
27 400-48733 BR SUPPORT 5D 2
28 SL-4040891-SC SCREW M4 L=8 4
29 SL-4030691-SC SCREW M3 L=6 2
30 400-46236 SENSOR BRACKET 1
31 SL-4030891-SC SCREW M3X8 2
32 SL-4030691-SC SCREW M3 L=6 2
33 400-46236 SENSOR BRACKET 1
34 SL-4030891-SC SCREW M3X8 2
35 E6003-723-000 HANDLE 2
36 SM-6062002-TN SCREW M6 L=20 4
37 400-49545 STK M MIS SET SENSOR ASM 1
- -
2. ELECTRIC APPARATUS COMPONENTS (1)
1 4 1 5 1 5
1 8
1 7
1
3
1 2
4
2
3 1
5
8
3 2
1 6
1 0
1 9
1 1
9
1 3
2 12 02 2
2 3 2 4
2 52 6
2 7
2 8
3 0
3 3
2 9
6 7
- -

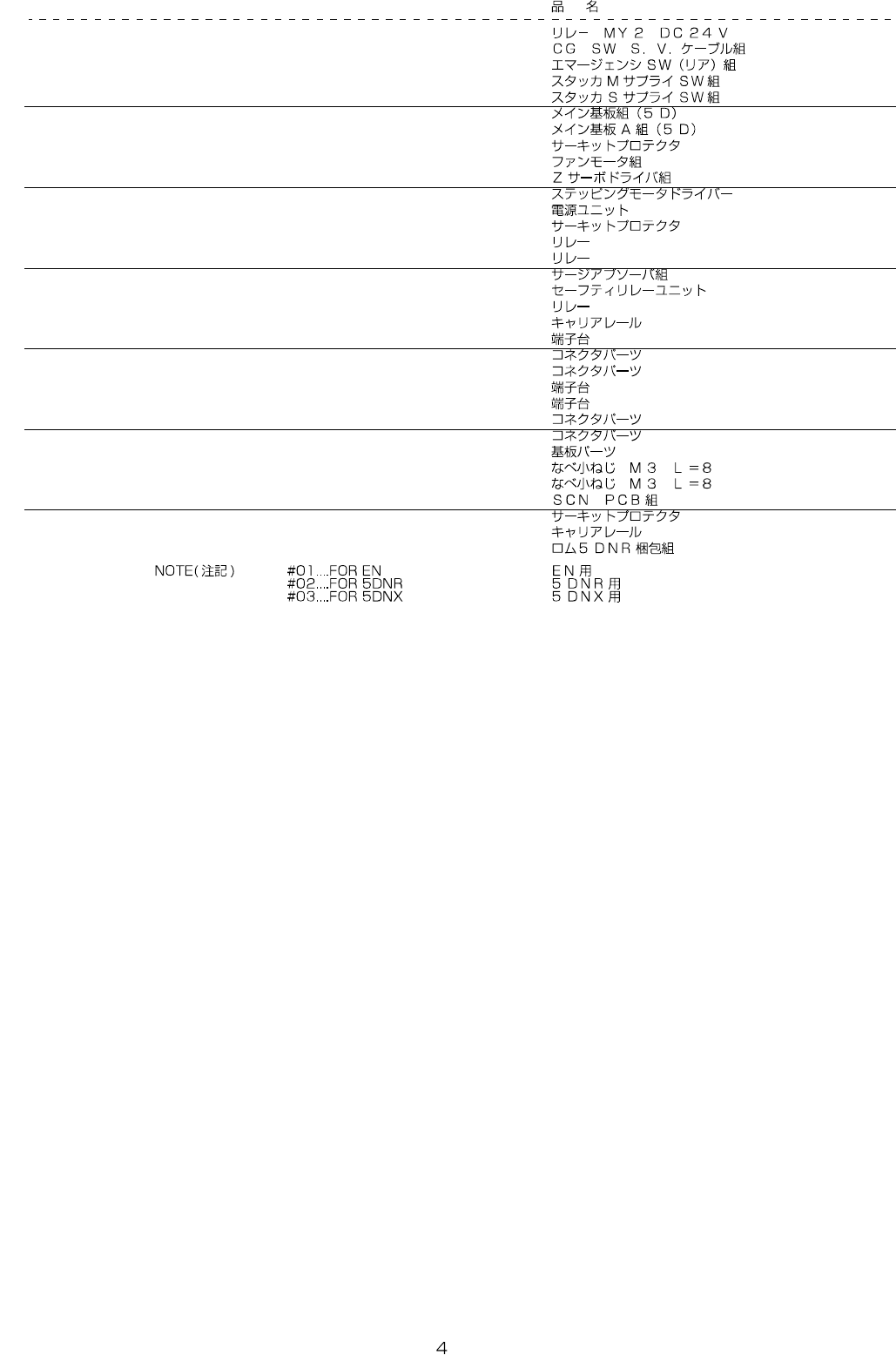

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E9641-040-000 RELAY MY-2 DC-24V 4
2 400-49535 CG SW S.V. CABLE ASM 1
3 400-49558 EMERGENCY SW(REAR) ASM 1
4 400-45117 STK M SUPPLY SW ASM 1
5 400-45119 STK S SUPPLY SW ASM 1
6
#03
400-95838 MAIN PCB ASM(5D) 1
7
#02
401-37758 MAIN PCB A ASM(5D) 1
8 HA-0052400-0A CIRCUIT PROTECTOR 1
9 400-49509 FAN MOTOR ASM 1
10 400-40687 Z SERVO DRV ASM 1
11 400-45711 STEPPING MOTOR DRIVER 1
12 HX-0055000-00 POWER SUPPLY UNIT 1
13 HA-0052400-0C CIRCUIT PROTECTOR 1
14 HB-0014000-00 RELAY 1
15 HB-0014200-00 RELAY 3
16 400-49516 SURGE ABSORBER ASM 1
17
#01
HB-0014300-00 SAFETY RELAY UNIT 1
18
#01
HB-0013900-00 RELAY 3
19
#01
400-50015 CARRIER RAIL 1
20
#01
HK-0498500-10 TERMINAL BASE 2
21
#01
HK-0498900-0D CONNECTOR PARTS 2
22
#01
HK-0498900-00 CONNECTOR PARTS 1
23 HK-0498500-10 TERMINAL BASE 10
24
#01
HK-0498500-10 TERMINAL BASE 8
25 HK-0498900-0D CONNECTOR PARTS 2
26 HK-0498900-00 CONNECTOR PARTS 2
27 HX-0035400-0G BOARD PARTS 4
28 SL-4030891-SC SCREW M3X8 4
29 SL-4030891-SC SCREW M3X8 4
30 400-41117 SCN PCB ASM 1
31 HA-0052400-00 CIRCUIT PROTECTOR 1
32 400-50015 CARRIER RAIL 1
33
#02
400-72504 ROM 5DNR ASM 1
