1004-004 1 1 10 5 3 1 See Fig.W-5 Key No.445 7 8 9 6 2 4 16 See Fig.W-1 Key No.2 See Fig.W-1 Key No.47 15 14 継ぎ 目検出ユニット JOINT DETECTION UNIT DS-08080 DS-08080 Fig. WD-1 8mm 幅テープフィーダ用 For 8mm T ape Feeder WD-1 illust-1
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
T-6
T-6 list-1
501 6301263328 CORD 1 877T--010-501 4W202800
502 6301276083 CORD 1 877T--010-502 4W202883
503 6301293561 CORD 1 877T--010-503 4W202923
505 6301266916 WIRE 1 877T--010-505 4W300034
508 6301612218 UNIT,DRIVER 1 877T--010-508 4U240484
526 6301274546 SCR PAN+SW+W 3X6 6 877T--010-026 221D0262
535 4111425004 SCR PAN 2.5X8 2 877T--010-035 221E0487
GT-72001B
1004-004
11
10
5
3
1
See Fig.W-5
Key No.445
7
8
9
6
2
4
16
See Fig.W-1
Key No.2
See Fig.W-1
Key No.47
15
14
継ぎ
目検出ユニット

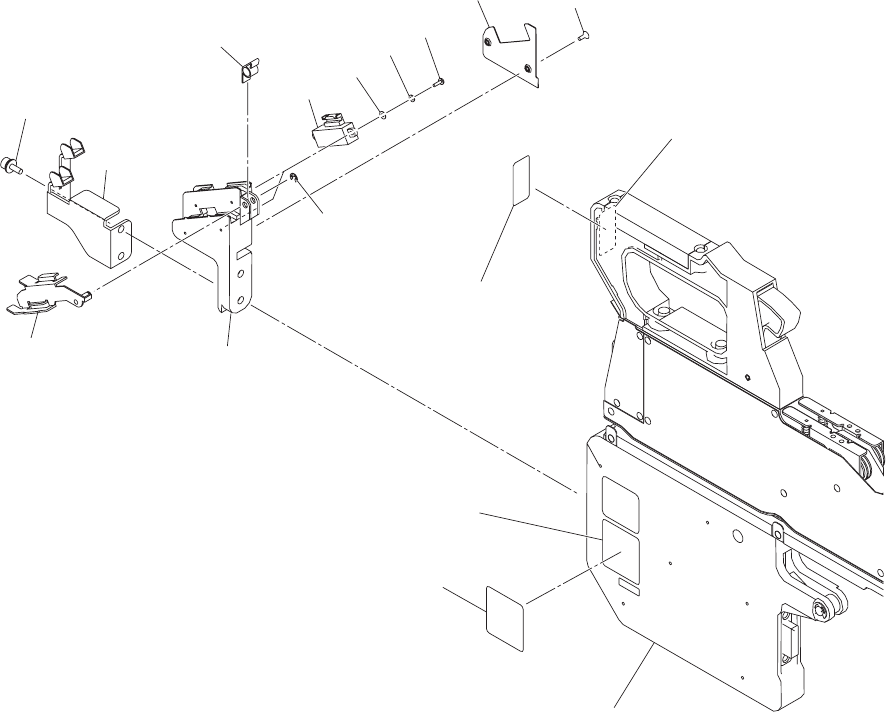

JOINT DETECTION UNIT
DS-08080 DS-08080
Fig. WD-1 8mm
幅テープフィーダ用
For 8mm
Tape Feeder
WD-1 illust-1
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301556802 FRAME 1 804WD-110-001 210B4161
2 6301300542 ASSY,LEVER(HOLD) 1 804WD-110-002 016S0729
3 6301295886 COVER 1 804WD-110-003 211A8923
4 6301295879 SPRING,TORSION 1 804WD-110-004 222P0183
5 4110160203 RING E 2.5 1 804WD-110-005 221K0114
6 6301289021 SENSOR,PHOTO 2 B01,B02
804WD-110-006 23G10090
7 4110392604 SCR PAN 2X6 4 804WD-110-007 221E0483
8 4111412509 WASHER SPR 2 4 804WD-110-008 221H0276
9 4111413605 WASHER V 2X5X0.3 4 804WD-110-009 221H0307
10 4110335700 SCR FLT 2.5X6 2 804WD-110-010 221D0261
11 221AA096 BOLT,HEX-SCT 2 M4X20 804WD-110-011 221AA096
14 0804000P NAME PLATE,INDEX 1 804WD-110-014 0804000P
15 0804000N NAME PLATE,INDEX 1 804WD-110-015 0804000N
16 6301403694 GUIDE 1 804WD-110-016 212A2269
DS-08080
WD-1
WD-1 list-1
