MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 105 H-7 60 2 630 006 0409 GEA R,R E DUCTION 1 78 4 H- - 010-602 60 3 630 092 9782 ASSY ,MOTOR,REVERSIBLE 1 M 4 ,4 R K2 5G N -A U L 100V 784H--010-…
MODEL TCM-X300
0203-001
104
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. H-7 ࠦࡦࡌࠕࡌ࡞࠻㚟േㇱ Conveyor Belt Driver
610
611
610
609
614
615
602
603
608
608
609
See Fig.H-1
Key No.1
See Fig.H-5
Key No.413
610
616
620
606
605
604
618
606
605
613
607
605
604
607
612
605
613
619
Fig.H-7
4797L
TCM-X300
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
105
H-7
602 630 006 0409 GEAR,REDUCTION 1 784H--010-602
603 630 092 9782 ASSY,MOTOR,REVERSIBLE 1 M4,4RK25GN-AUL 100V
784H--010-603
604 630 000 7848 BOLT,HEX-SCT 2 784H--010-604
605 411 141 6705 WASHER SPR 5 4 784H--010-605
606 411 141 4107 WASHER V 5X10X1 2 784H--010-606
607 630 001 0220 WASHER 2 784H--010-607
608 630 085 7788 NUT 4 784H--010-608
609 630 009 2684 PULLEY,TIMING 2 784H--010-609
610 630 000 8951 SET SCREW 6 784H--010-610
611 630 078 7900 BELT,TIMING 1 784H--010-611
612 630 092 9744 ASSY,MOTOR,STEPPING 1 MPM26(R2CV),103-8572-7041
784H--010-612
613 630 000 7770 BOLT,HEX-SCT 2 784H--010-613
614 630 107 0018 PULLEY,TIMING 1 784H--010-614
615 630 008 2296 SET SCREW 2 784H--010-615
616 630 036 0608 BELT,TIMING 1 784H--010-616
618 630 106 7629 COVER(MOTOR) 1 784H--010-618
619 411 051 2804 SCR TRS 4X8 1 784H--010-619
620 630 107 0025 PULLEY,TIMING 1 784H--010-620
MODEL TCM-X300
0203-001
106
X ゲޔY ゲ X AXIS, Y AXIS

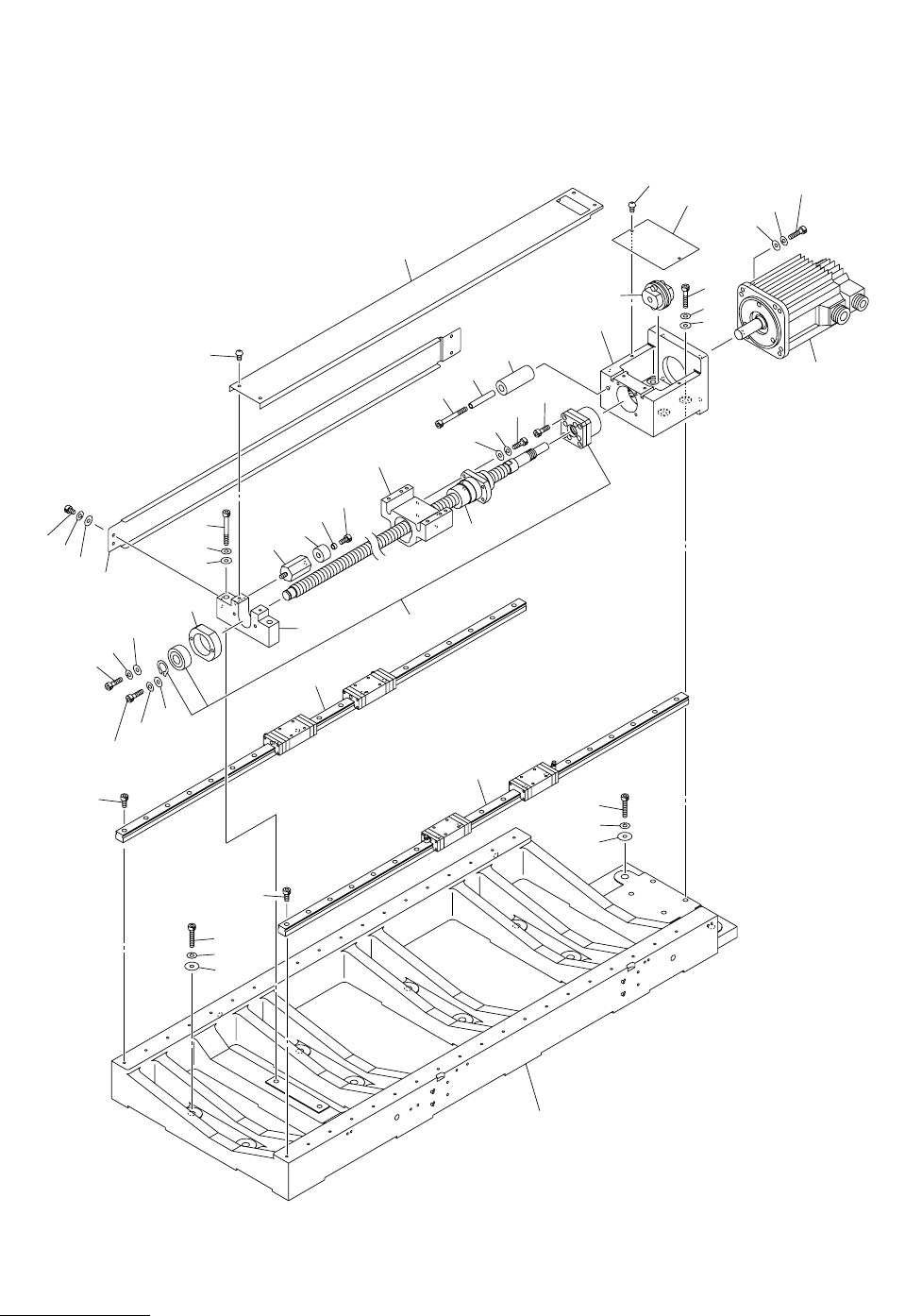

Fig. JB-1 X ゲ㚟േㇱ X Axis Driver
18
14
6
41
23
11
9
41
7
24
15
8
30
33
16
19
19
28
31
21
12
10
5
26
30
33
38
39
40
36
4
31
28
20
31
25
30
34
1
25
30
34
28
20
13
17
3
2
32
29
22
14
18
Fig.JB-1
