MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 211 80 1 41 1 1 13 9109 SCR TRS 5X10 4 784MA-010-801 80 2 630 103 2733 P L A TE 1 784MA-010-802 80 3 630 098 7430 ME CH P A R TS (R OT AR Y D AMPE…

100%1 / 318
MODEL TCM-X300
0211-002
210
ࠞࡃ࡯ㇱ COVER SECTION
Fig. MA-9 ࠠ࡯ࡏ࡯࠼ Keyboard
Fig.MA-9
805
805
801
806
803
804
806
807-01
807-04
807-03
807-14
807-12
807-13
807-15
807-10
807-02
807-09
807-13
807-12
807-11
807-06
807-07
807-08
807-05
807-09
804
803
802
820
821
826
821
819
823
818
825
820
821
826
821
819
825
824
817
823
807
824
4797L-002
TCM-X300-002
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
211
801 411 113 9109 SCR TRS 5X10 4 784MA-010-801
802 630 103 2733 PLATE 1 784MA-010-802
803 630 098 7430 MECH PARTS(ROTARY DAMPER) 2 784MA-010-803
804 411 051 1708 SCR TRS 4X6 4 784MA-010-804
805 630 097 6861 MECH PARTS(PUSH LATCHES) 2 784MA-010-805
806 411 034 7208 SCR FLT 3X8 4 784MA-010-806
807 630 110 6601 ASSY,SWITCH,KEYBOARD 1 784MA-010-807
807 -01 630 105 3509 COVER(U-KEYBOARD) 1
807 -02 630 105 3516 COVER(B-KEYBOARD) 1
807 -03 630 101 1349 BUSH,LOCATE 2
807 -04 630 103 1835 HOLDER 1
807 -05 630 097 7165 HINGE(DUMPER HINGE) 1
807 -06 630 000 7749 BOLT,HEX-SCT 2
807 -07 411 141 6705 WASHER SPR 5 2
807 -08 411 141 4107 WASHER V 5X10X1 2
807 -09 630 013 8986 MECH PARTS(RUBBER CUSHION 2
807 -10 630 106 4802 SHEET 1
807 -11 411 040 6202 SCR PAN 3X10 4
807 -12 411 086 4408 WASHER SPR 3 8
807 -13 411 119 1909 WASHER V 3X7X0.5 8
807 -14 411 041 8908 SCR PAN 3X6 4
807 -15 630 106 6837 SWITCH,KEYBOARD 1 #KI-05
817 630 102 4912 SUPPORT(L) 1 784MA-010-817
818 630 102 4929 SUPPORT(R) 1 784MA-010-818
819 630 101 0885 COVER 2 784MA-010-819
820 630 100 9254 GUIDE,SLIDE 2 784MA-010-820
821 411 147 6808 SCR TRS 3X5 8 784MA-010-821
823 630 000 7626 BOLT,HEX-SCT 2 784MA-010-823
824 630 105 3554 CLAMP(BALL CATCHERS) 2 784MA-010-824
825 411 002 2600 SCR FLT 3X6 4 784MA-010-825
826 411 108 7103 SCR FLT 3X10 4 784MA-010-826
MA-9
MODEL TCM-X300
0211-002
212
ࠞࡃ࡯ㇱ COVER SECTION

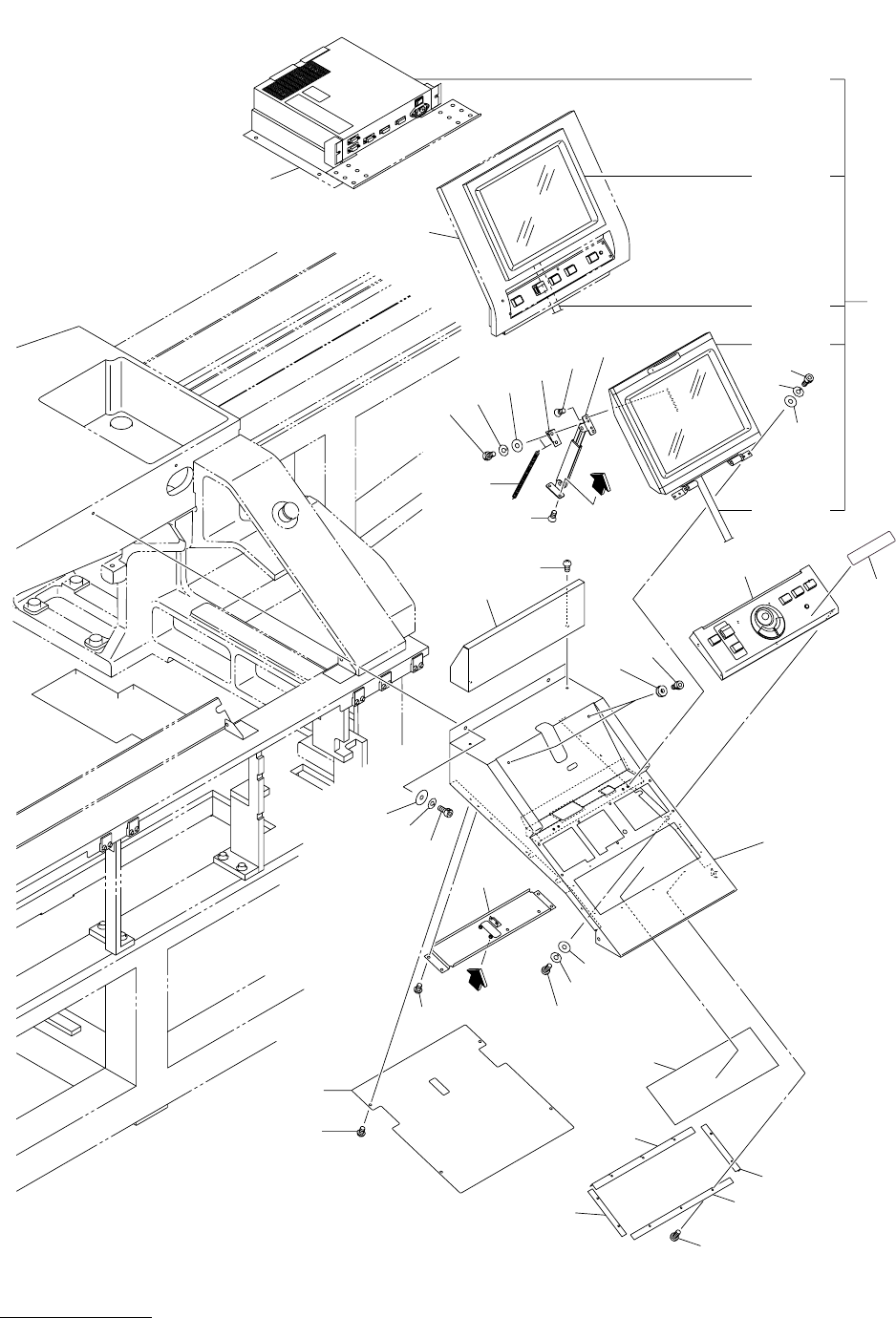

Fig. MA-10 ೨㕙ᠲ૞ࡄࡀ࡞ Front Operation Panel
902
904
928
914
913
908
See Fig.MB-6
923
907
912
909
923
922
A
A
905
927
926
925
906
924
921
901
920
919
934
931
929
903
924
911
910
912
918
911
932
933
930
902-01
902-02
902-04
902-05
See Fig.RL-7
Fig.MA-10
TCM-X300-002
902-03
