P-208-001 - 第243页

MODEL TCM-X300 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 241 RC-2 15 1 630 1 16 5738 EM-CONT ACTOR 4 KM1 1,KM12,KM13,KM14 784RC-010-151 15 3 630 053 8588 EM-CONT ACTOR 1 KM5 784RC-010-153 15 4 630 049 2…

100%1 / 318
MODEL TCM-X300
0211-002
240

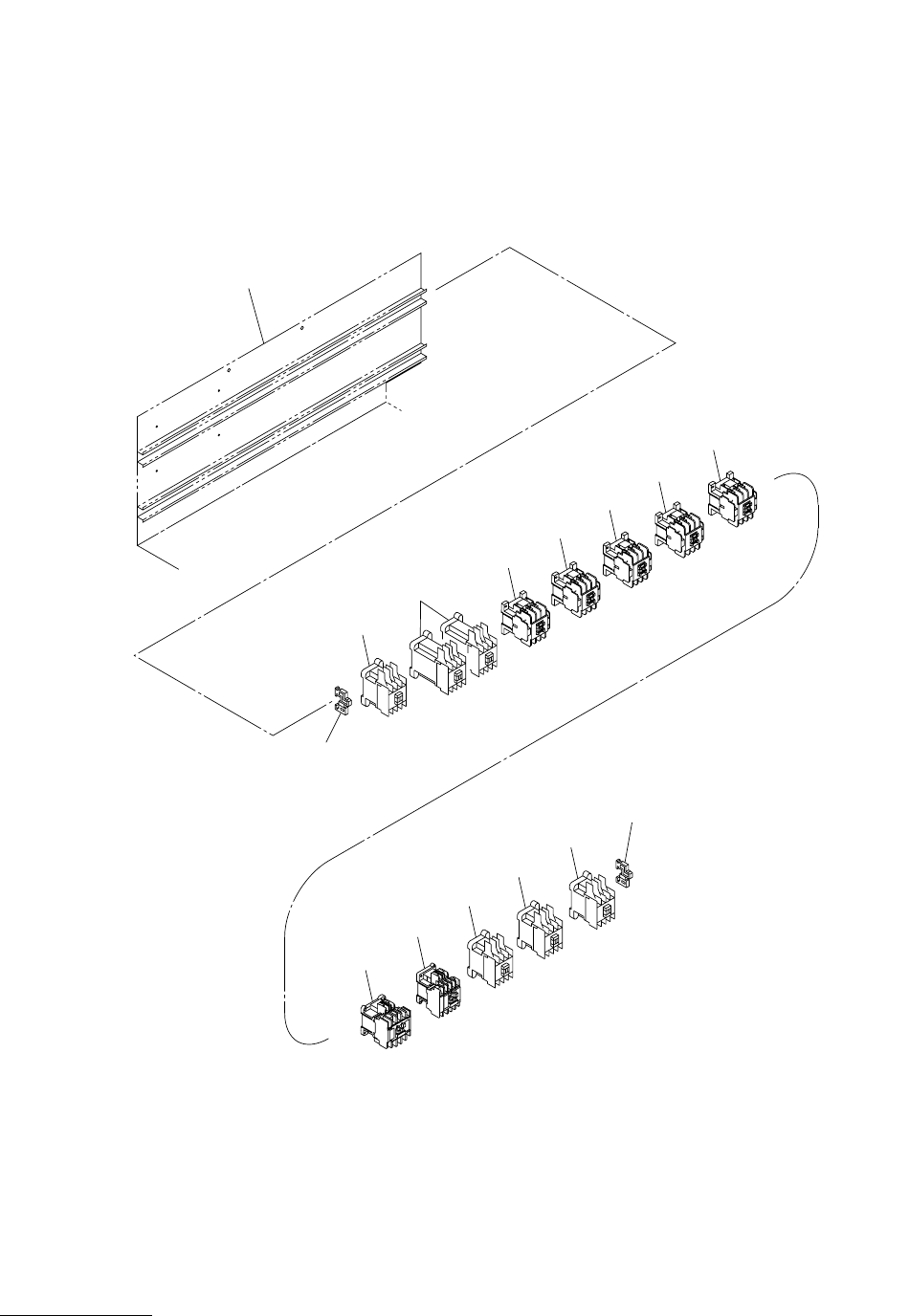

200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION
Fig. RC-2 200V 㔚Ḯ㧞 200V Power Supply 2
155
154
166
.
166
.
166
.
153
166
.
157
151
155
166
.
151
166
.
151
166
.
151
Fig.RC-2
4797L-002
TCM-X200-003
TCM-X300-002
TCM-X100-002
4797A-003
162
166
.
162
166
.
162
166
.
166
.
159
166
.
160
See Fig.RC-1
Key No.61
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
RC-2
151 630 116 5738 EM-CONTACTOR 4 KM11,KM12,KM13,KM14
784RC-010-151
153 630 053 8588 EM-CONTACTOR 1 KM5 784RC-010-153
154 630 049 2200 EM-CONTACTOR 2 KM6,KM7 784RC-010-154
155 630 049 3672 BRACKET,WIRING 2 784RC-010-155
157 630 116 5738 EM-CONTACTOR 1 KM10 784RC-010-157
159 630 116 5721 EM-CONTACTOR 1 KM15 784RC-010-159
160 630 116 5714 EM-CONTACTOR 1 KM16 784RC-010-160
162 630 053 8588 EM-CONTACTOR 3 KM17,KM18,KM19 784RC-010-162
166 630 100 1357 COMP,CR 17 784RC-010-166
MODEL TCM-X300
0211-002
242
200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION
Fig. RC-3 200V 㔚Ḯ㧟 200V Power Supply 3
296
298
299
255
See Fig.RC-1
Key No.61
252
.
253
261
265
255
254
260
.
262
.
259
267
Fig.RC-3
4797L-002
TCM-X200-003
TCM-X300-002
TCM-X100-002
4797A-003
255
270
268
271
272
269
255
263
270
