MODEL TCM-X300
0203-001
246
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

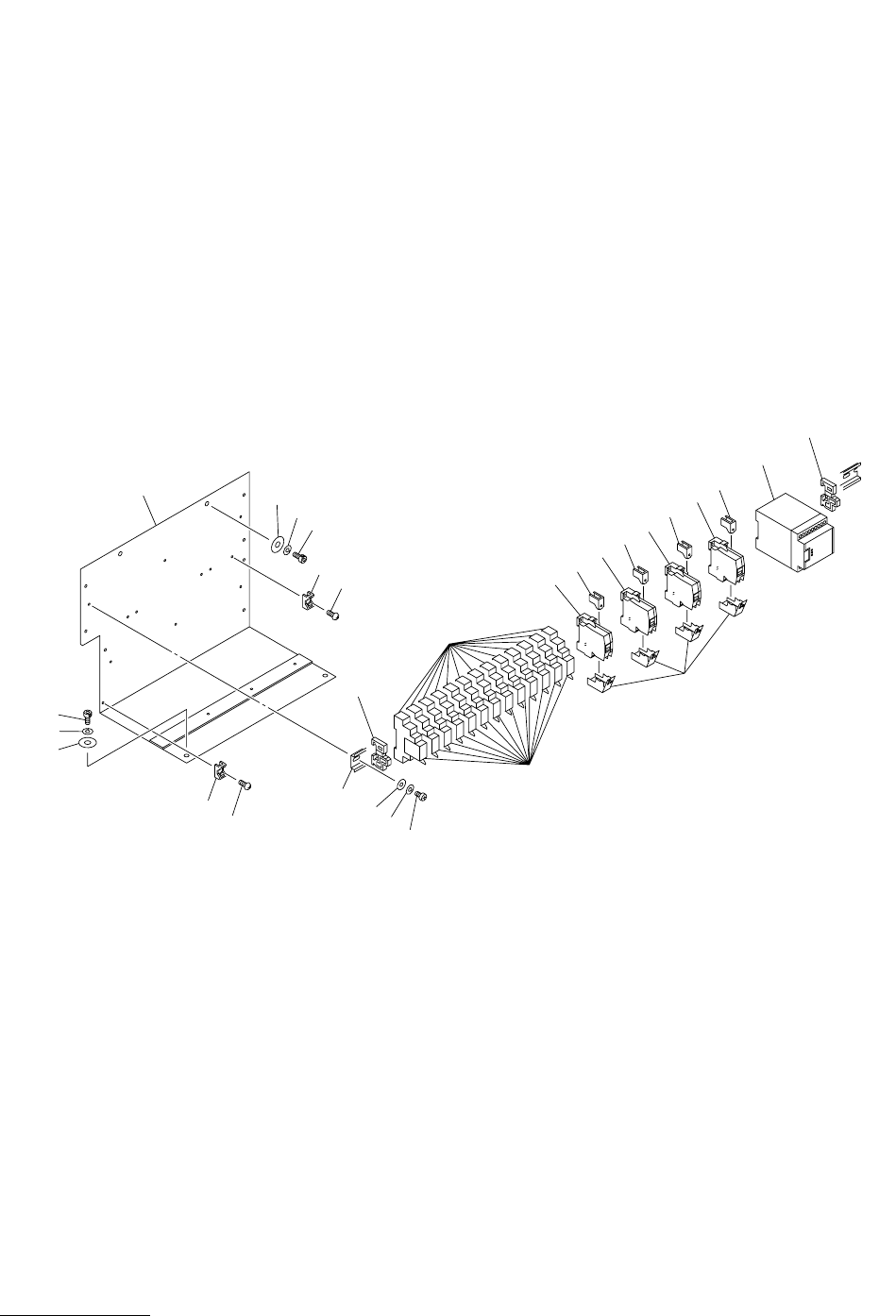

Fig. RE-1 100V 㔚Ḯ㧝 100V Power Supply 1
96
94
93
62
92
62
94
93
96
92
61
57
53
54
59
55
59
56
59
51
57
99
98
97
52
58
54
59
60
Fig.RE-1
4797L
TCM-X200
TCM-X300
4797A
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
247
RE-1
51 630 094 4716 RELAY 1 K10 784RE-010-051
52 630 068 9723 RELAY 13 K29,K9,K30,K35,K36,K31,K32,K33,K34,
K37,K38,K41,K54 784RE-010-052
53 630 049 2064 SOCKET 13 784RE-010-053
54 630 099 1772 CIRCUIT PROTECTOR 2 Q110,Q111 784RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 784RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 784RE-010-056
57 630 049 3672 BRACKET,WIRING 2 784RE-010-057
58 630 092 5876 PANEL 1 784RE-010-058
59 630 071 3343 COVER 4 784RE-010-059
60 630 071 3350 COVER 4 784RE-010-060
61 630 091 2135 RAIL,WIRING 1 784RE-010-061
62 630 048 3833 MECH PARTS(MOUNTING BASES 2 784RE-010-062
92 411 113 7501 SCR TRS 4X10 2 784RE-010-092
93 630 000 7756 BOLT,HEX-SCT 4 784RE-010-093
94 411 141 6705 WASHER SPR 5 4 784RE-010-094
96 630 001 0220 WASHER 4 784RE-010-096
97 411 043 5004 SCR PAN 4X8 2 784RE-010-097
98 411 008 1706 WASHER SPR 4 2 784RE-010-098
99 411 119 2104 WASHER V 4X9X0.8 2 784RE-010-099
MODEL TCM-X300
0203-001
248
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION
Fig. RE-2 100V 㔚Ḯ㧞 100V Power Supply 2
166
158
155
See Fig.RE-1
Key No.58
164
154
158
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
199
198
197
165
Fig.RE-2
4797L
TCM-X100AL
TCM-X200-002
TCM-X300
4797A-002
