MODEL TCM-X300 0203-001 250 100V 㔚Ḯㇱ 100V POWER SUPPL Y SECTION F i g . R E - 3 100V 㔚Ḯ㧟 100V Power Supply 3 252 297 298 299 298 299 297 258 257 253 255 . 259 . 254 257 256 See Fig.RE-1 Key No.58 251 296 Fig.RE-3 4797L T…
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
249
RE-2
151 630 083 5496 FUSE HOLDER 10 784RE-010-151
152 630 059 6632 ACCESSORY,WIRING 1 784RE-010-152
153 630 051 1512 ACCESSORY,WIRING 1 784RE-010-153
154 630 083 5465 TERMINAL 30 784RE-010-154
155 630 083 5533 ACCESSORY,WIRING 1 784RE-010-155
156 630 072 8408 ACCESSORY,WIRING 1 784RE-010-156
157 630 058 8460 ACCESSORY,WIRING 3 784RE-010-157
158 630 049 3672 BRACKET,WIRING 3 784RE-010-158
159 423 022 8005 FUSE 250V 1A 1 F104 784RE-010-159
160 423 022 8104 FUSE 250V 2A 1 F100 784RE-010-160
161 423 025 2109 FUSE 250V 6.3A 6 F105,F106,F107,F108,F109,F111
784RE-010-161
162 423 022 8500 FUSE 250V 10A 1 784RE-010-162
164 630 083 5564 ACCESSORY,WIRING 1 784RE-010-164
165 630 058 8415 ACCESSORY,WIRING 2 784RE-010-165
166 630 091 2128 RAIL,WIRING 1 784RE-010-166
197 411 043 5004 SCR PAN 4X8 2 784RE-010-197
198 411 008 1706 WASHER SPR 4 2 784RE-010-198
199 411 119 2104 WASHER V 4X9X0.8 2 784RE-010-199
MODEL TCM-X300
0203-001
250

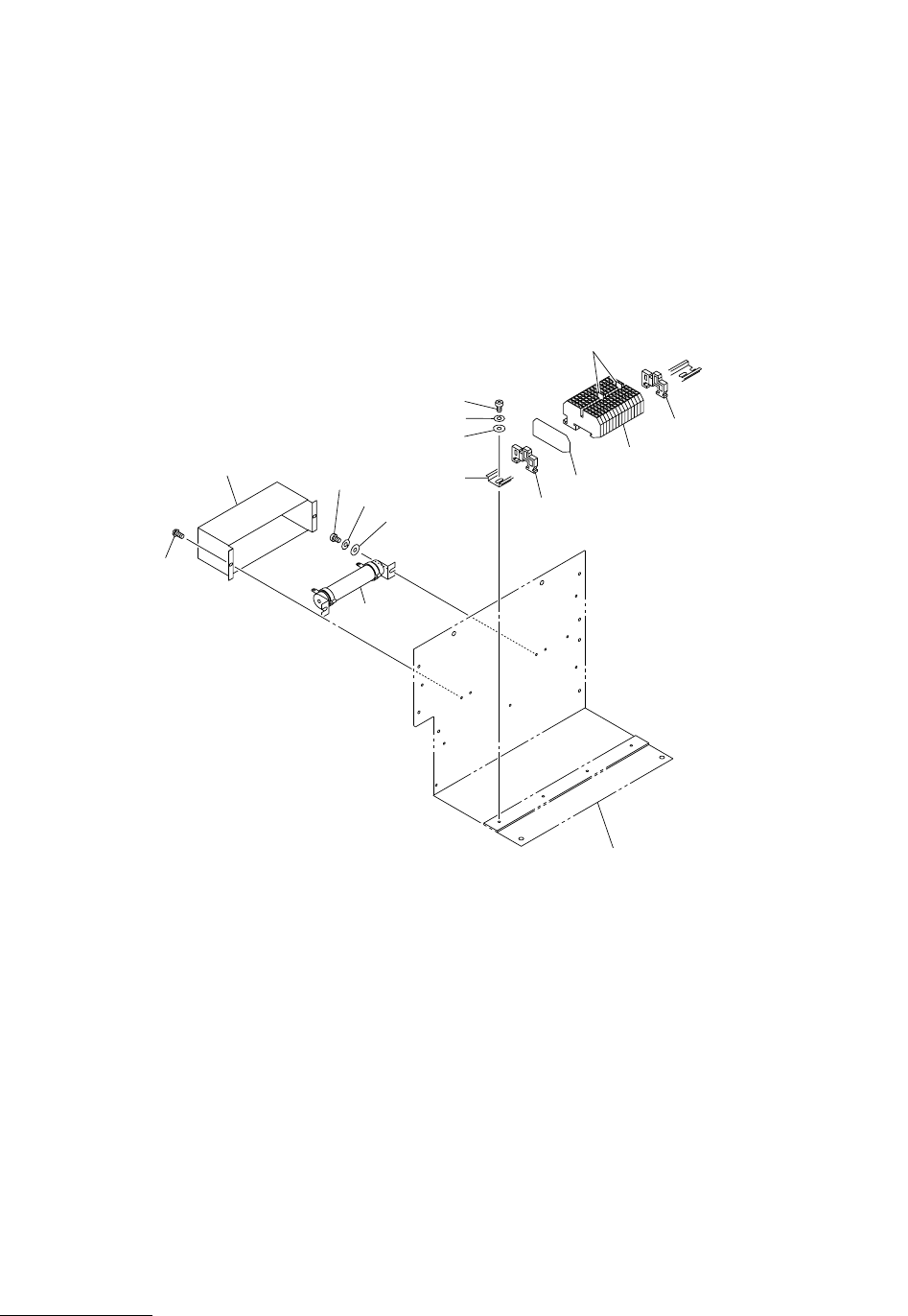

100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION
Fig. RE-3 100V 㔚Ḯ㧟 100V Power Supply 3
252
297
298
299
298
299
297
258
257
253
255
.
259
.
254
257
256
See Fig.RE-1
Key No.58
251
296
Fig.RE-3
4797L
TCM-X100AL
TCM-X200-002
TCM-X300
4797A-002
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
RE-3
251 402 061 5206 WIRE WOUND 100 JB 80W 1 784RE-010-251
252 630 057 2735 COVER 1 784RE-010-252
253 630 083 5465 TERMINAL 14 784RE-010-253
254 630 083 5533 ACCESSORY,WIRING 1 784RE-010-254
255 630 072 8408 ACCESSORY,WIRING 1 784RE-010-255
256 630 083 5564 ACCESSORY,WIRING 2 784RE-010-256
257 630 049 3672 BRACKET,WIRING 2 784RE-010-257
258 630 091 2111 RAIL,WIRING 1 784RE-010-258
259 630 058 8460 ACCESSORY,WIRING 2 784RE-010-259
296 411 113 7501 SCR TRS 4X10 2 784RE-010-296
297 411 043 5004 SCR PAN 4X8 4 784RE-010-297
298 411 008 1706 WASHER SPR 4 4 784RE-010-298
299 411 119 2104 WASHER V 4X9X0.8 4 784RE-010-299
