MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 267 RL-3 25 1 630 086 2539 TRA NSF OR ME R, PO W E R 1 T 1 ,# EN T 1- 2K -T S 784RL-010-251 26 0 630 1 14 7697 EM-CONT ACTOR 1 KM1 784RL-010-260 2…
MODEL TCM-X300
0203-001
266
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1

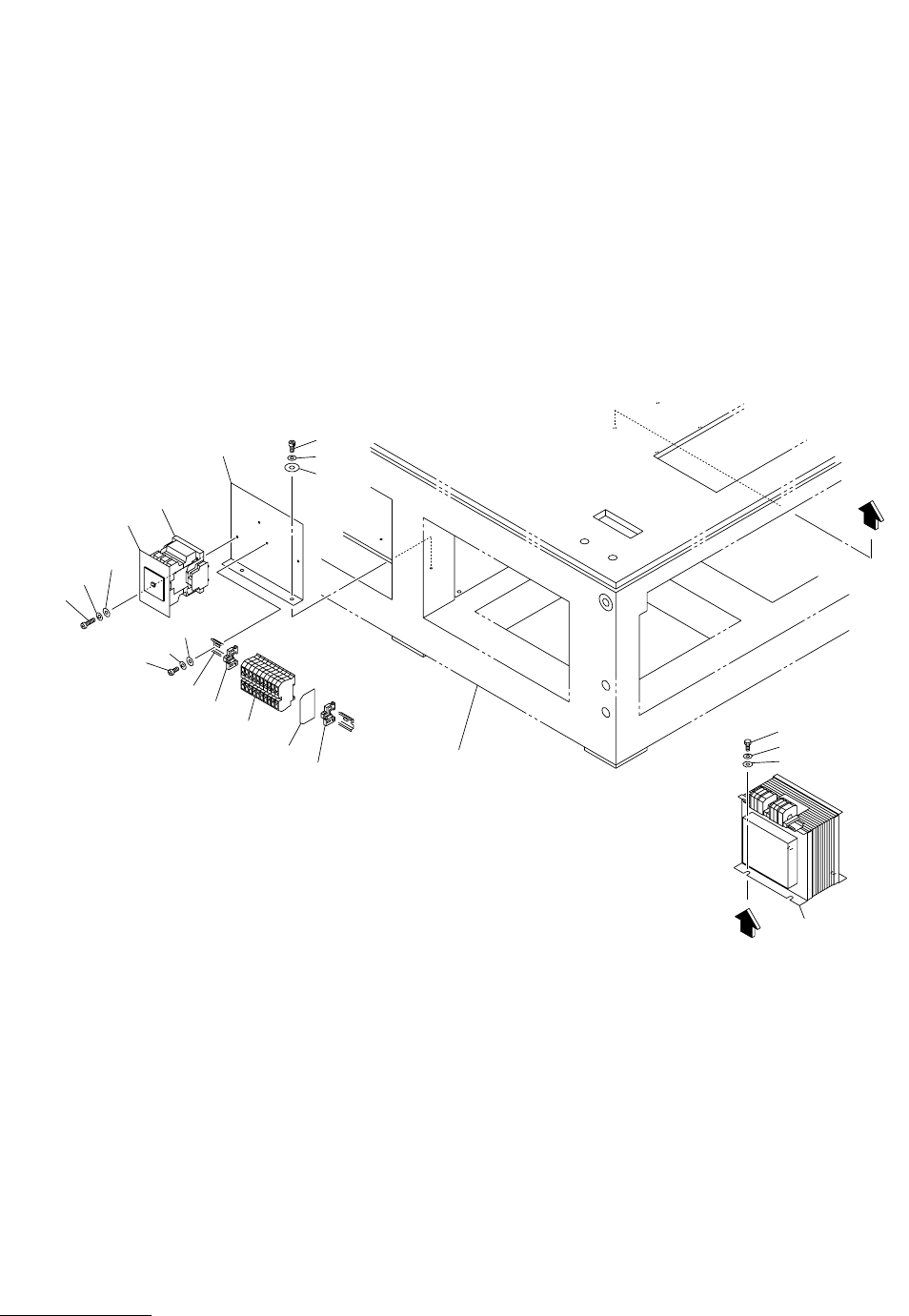

Fig. RL-3 ࡄࡢ࠻ࡦࠬ Transformer Power
Fig.RL-3
4797L
TCM-X300
287
288
289
251
295
291
261
262
299
See Fig.L-1
Key No.9
297
296
267
266
263
265
.
268
260
.
266
294
293
295
294
264
A
A
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
267
RL-3
251 630 086 2539 TRANSFORMER,POWER 1 T1,#ENT1-2K-TS 784RL-010-251
260 630 114 7697 EM-CONTACTOR 1 KM1 784RL-010-260
261 630 114 7765 COVER 1 784RL-010-261
262 630 092 5890 PANEL 1 784RL-010-262
263 630 092 2844 TERMINAL 10 784RL-010-263
264 630 092 2851 ACCESSORY,WIRING 1 784RL-010-264
265 630 092 2868 ACCESSORY,WIRING 7 784RL-010-265
266 630 049 3672 BRACKET,WIRING 2 784RL-010-266
267 630 089 6497 RAIL,WIRING 1 784RL-010-267
268 630 100 1357 COMP,CR 1 784RL-010-268
287 411 140 5303 BOLT HEX 6X12 4 784RL-010-287
288 411 008 2505 WASHER SPR 6 4 784RL-010-288
289 411 110 3100 WASHER F 6X11.5X1.6 4 784RL-010-289
291 411 162 1505 SCR PAN 4X20 2 784RL-010-291
293 411 042 3001 SCR PAN 4X10 2 784RL-010-293
294 411 008 1706 WASHER SPR 4 4 784RL-010-294
295 411 119 2104 WASHER V 4X9X0.8 4 784RL-010-295
296 630 000 7756 BOLT,HEX-SCT 2 784RL-010-296
297 411 141 6705 WASHER SPR 5 2 784RL-010-297
299 630 001 0220 WASHER 2 784RL-010-299
MODEL TCM-X300
0203-001
268
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-4
೨ᓟᎿ⒟ࠗࡦ࠲ࡈࠚࠬ
Input/Output Machine Interface
Fig.RL-4
4797L
TCM-X300
363
361
358
360
.
357
.
362
.
356
.
363
367
365
383
386
395
371
392
393
373
396
399
398
397
398
397
394
391
390
372
351
393
364
385
393
394
353
352
394
384
387
388
389
370
See Fig.L-1
Key No.9
373
359
