MODEL TCM-X300 021 1-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 291 SB-1 51 630 086 8722 CORD 1 X CN7- 784SB-010-051 52 630 087 0022 COR D (C RT 15P -15 P S T2 M) 1 X CN 5- 784SB-010-052 53 630 087 0046 CORD (…
MODEL TCM-X300
0211-001
290

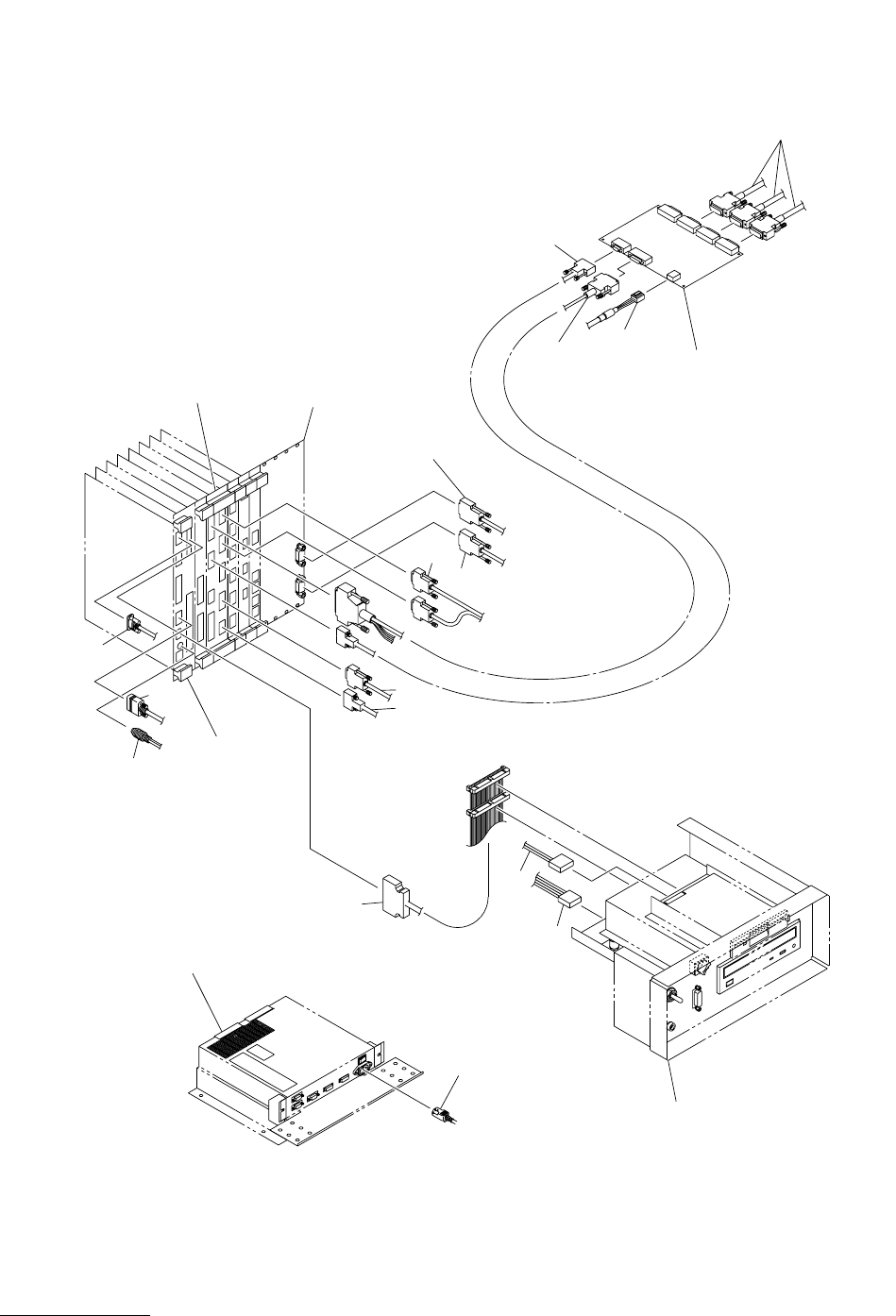

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-1 ᧄㇱ㧝 Main Body Section-1
Fig.SB-1
55
59
61
60
57
56
58
See Fig.RH-1
Key No.61
See Fig.SB-1
Key No.770
See Fig.RH-1
Key No.51
REC PCB
CPU1 PCB
LIGHTING CONTROLLER
See Fig.EB-8
Key No.752
TCM-X300
4797L
53
52
51
63
62
See Fig.RK-1
Key No.56
See Fig.RH-1
Key No.53
LCD-CONTROLLER
See Fig.MA-10
Key No.902-05
66
54
67
MODEL TCM-X300
0211-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
291
SB-1
51 630 086 8722 CORD 1 XCN7- 784SB-010-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 784SB-010-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 784SB-010-053
54 630 088 7877 CORD (SCJI 1.5M) 1 XCN3- 784SB-010-054
55 630 085 3414 CORD 1 XCN28/29- 784SB-010-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 784SB-010-056
57 630 097 0661 CORD(SIO) 1 XCN26- 784SB-010-057
58 630 111 4859 CORD(MON1.5M) 1 XCN32- 784SB-010-058
59 630 092 9874 CORD(LIGHT) 3 CN1-,CN2-,CN3-, 784SB-010-059
60 630 106 4390 CORD (REC-PIO 2M) 1 XCN25- 784SB-010-060
66 630 109 3413 ASSY,CORD (X200SB105) 1 XCN35-XCN80 784SB-010-066
67 630 108 1861 CORD 1 784SB-010-067
MODEL TCM-X300
0211-001
292

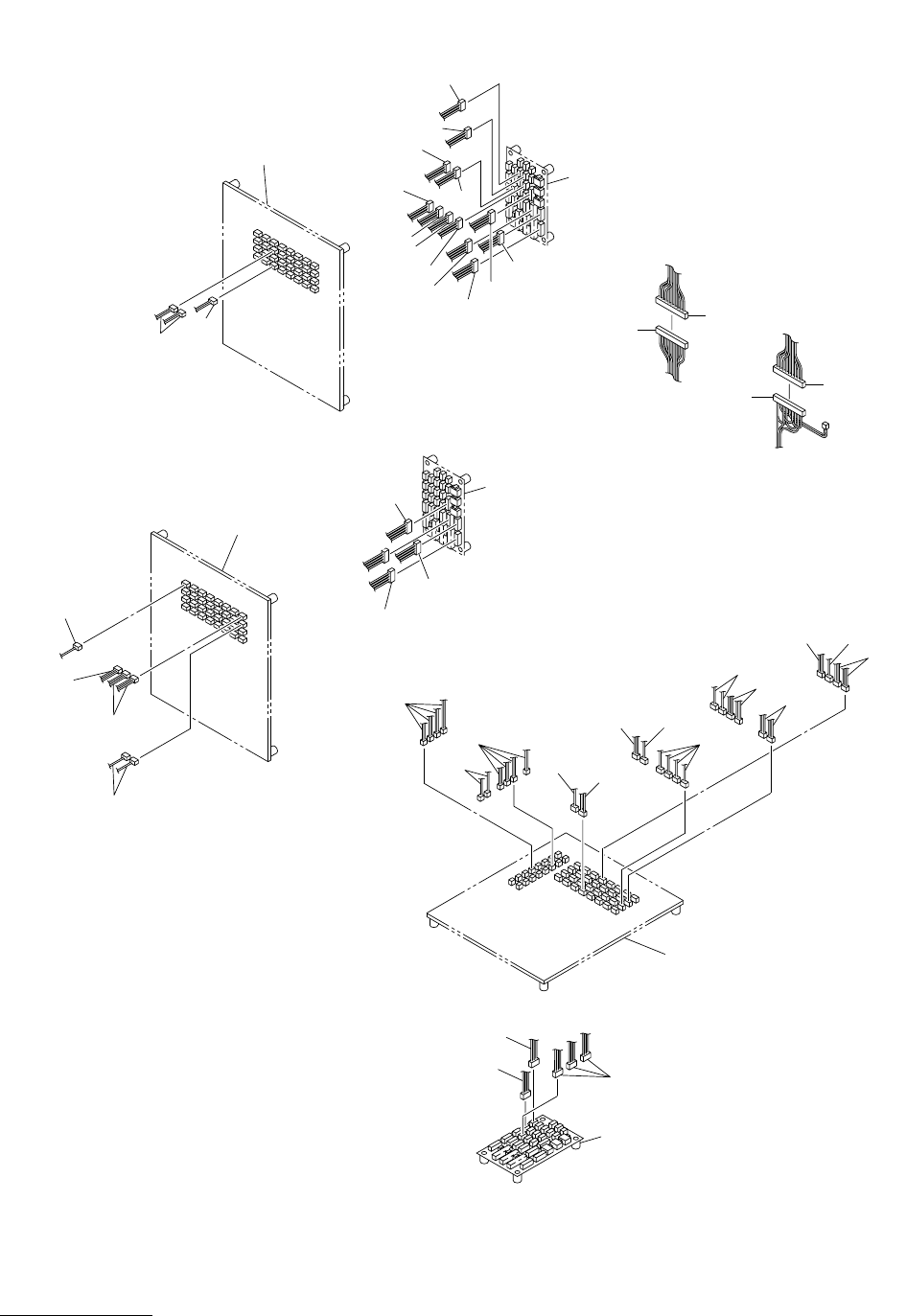

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-2
F1,2ޔF3,4 ၮ᧼ޔXY ၮ᧼
F1,2,F3,4 P.C.B., XY P.C.B.
Fig.SB-2
TCM-X300
188
190
189
191
168
171
See Fig.RL-5
Key No.455
F1,2 PCB
179
172
179
173
See Fig.RL-5
Key No.455
F3,4 PCB
See Fig.RM-4
Key No.353
193
187
194
190
188
184
186
187
187
187
184
190
192
188
XY PCB
See Fig.RL-5
Key No.467
UB01
178
180
170
177
183
182
197
See Fig.RM-4
Key No.359
UB01
See Fig.RL-5
Key No.467
UB01
154
156
160
159
162
166
169
157
151
152
170
167
