MODEL TCM-X300 021 1-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 295 SB-4 35 1 630 092 4626 ASSY ,CORD (X200MOT F1) 1 - X CN 10 5 784SB-010-351 35 2 630 092 4633 ASSY ,CORD (X200MOT F2) 1 - X CN 10 9 784SB-010-…
MODEL TCM-X300
0211-001
294
ࠤࡉ࡞㈩✢ CABLE WIRING

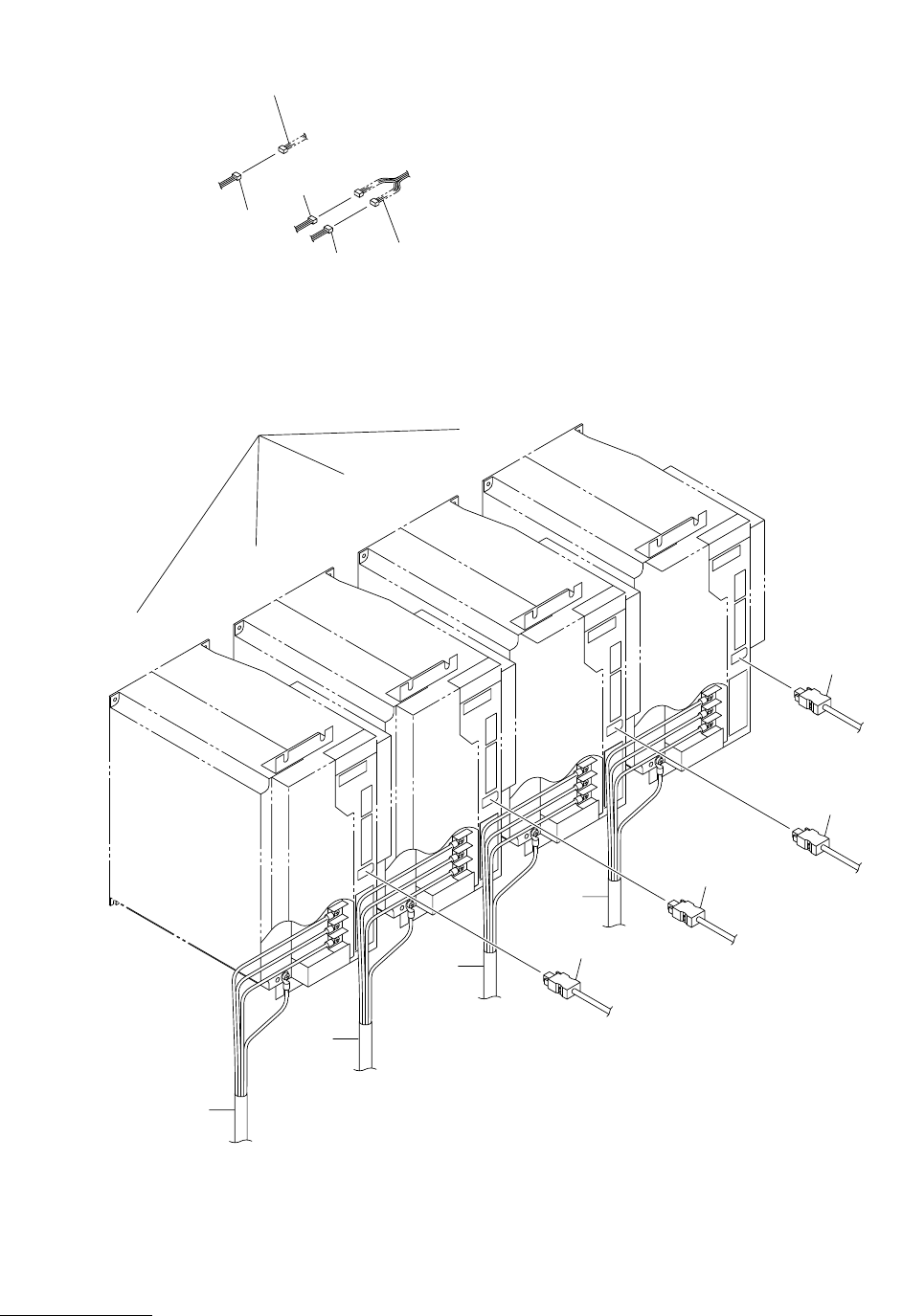

Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers
Fig.SB-4
360
359
361
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
See Fig.SB-2
Key No.173
See Fig.SB-2
Key No.172
TCM-X300
4797L
353
357
352
356
351
355
MODEL TCM-X300
0211-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
295
SB-4
351 630 092 4626 ASSY,CORD (X200MOT F1) 1 -XCN105 784SB-010-351
352 630 092 4633 ASSY,CORD (X200MOT F2) 1 -XCN109 784SB-010-352
353 630 092 4640 ASSY,CORD (X200MOT F3) 1 -XCN113 784SB-010-353
354 630 092 4657 ASSY,CORD (X200MOT F4) 1 -XCN117 784SB-010-354
355 630 104 9595 CORD (LINEAR 3.9M) 1 XCN106-XCN107 784SB-010-355
356 630 104 9601 CORD (LINEAR 3.4M) 1 XCN110-XCN111 784SB-010-356
357 630 104 9618 CORD (LINEAR 4.1M) 1 XCN114-XCN115 784SB-010-357
358 630 104 9601 CORD (LINEAR 3.4M) 1 XCN118-XCN119 784SB-010-358
359 630 116 1914 ASSY,CORD(BPH 3.5M) 1 -BPH57 784SB-010-359
360 630 116 1914 ASSY,CORD(BPH 3.5M) 1 -BPH58 784SB-010-360
361 630 116 1914 ASSY,CORD(BPH 3.5M) 1 -BPH59 784SB-010-361
MODEL TCM-X300
0211-001
296
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-5 H2,H3 ၮ᧼ޔH1 ၮ᧼ H2,H3 P.C.B., H1 P.C.B.
Fig.SB-5
488
487
465
467
470
469
472
471
481
480
482
476
475
477
479
451
452
486
455
458
459
454
460
462
461
459
483
458
457
453
454
455
H3 PCB
See Fig.RM-1
Key No.66
See Fig.RM-4
Key No.353
H1 PCB
See Fig.SB-2
Key No.172
TCM-X300
4797L
489
468
469
471
473
469
469
471
474
473
See Fig.RM-1
Key No.66
H2 PCB
491
490
467
465
465
490
See Fig.RM-1
Key No.55
