P-208-001 - 第309页

MEMO

MODEL TCM-X300

0211-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

306

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

SB-8

785 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN84-XCN83 784SB-010-785

786 630 109 3352 ASSY,CORD (AE-LINK 2.0M) 1 XCN88-XCN85 784SB-010-786

787 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN90-XCN89 784SB-010-787

788 630 109 3338 ASSY,CORD (AE-LINK 3.5M) 1 XCN92-XCN91 784SB-010-788

789 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN94-XCN93 784SB-010-789

790 630 109 3345 ASSY,CORD (AE-LINK 3.0M) 1 XCN96-XCN95 784SB-010-790

791 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN98-XCN97 784SB-010-791

792 630 109 3598 ASSY,CORD (X200RG2) 1 XCN99- 784SB-010-792

793 630 112 0775 ASSY,CORD(APMD 1.0M) 1 APMD28(CX)CN2,APMD29(CY)CN2-

784SB-010-793

MEMO

MODEL TCM-X300

0211-001

308

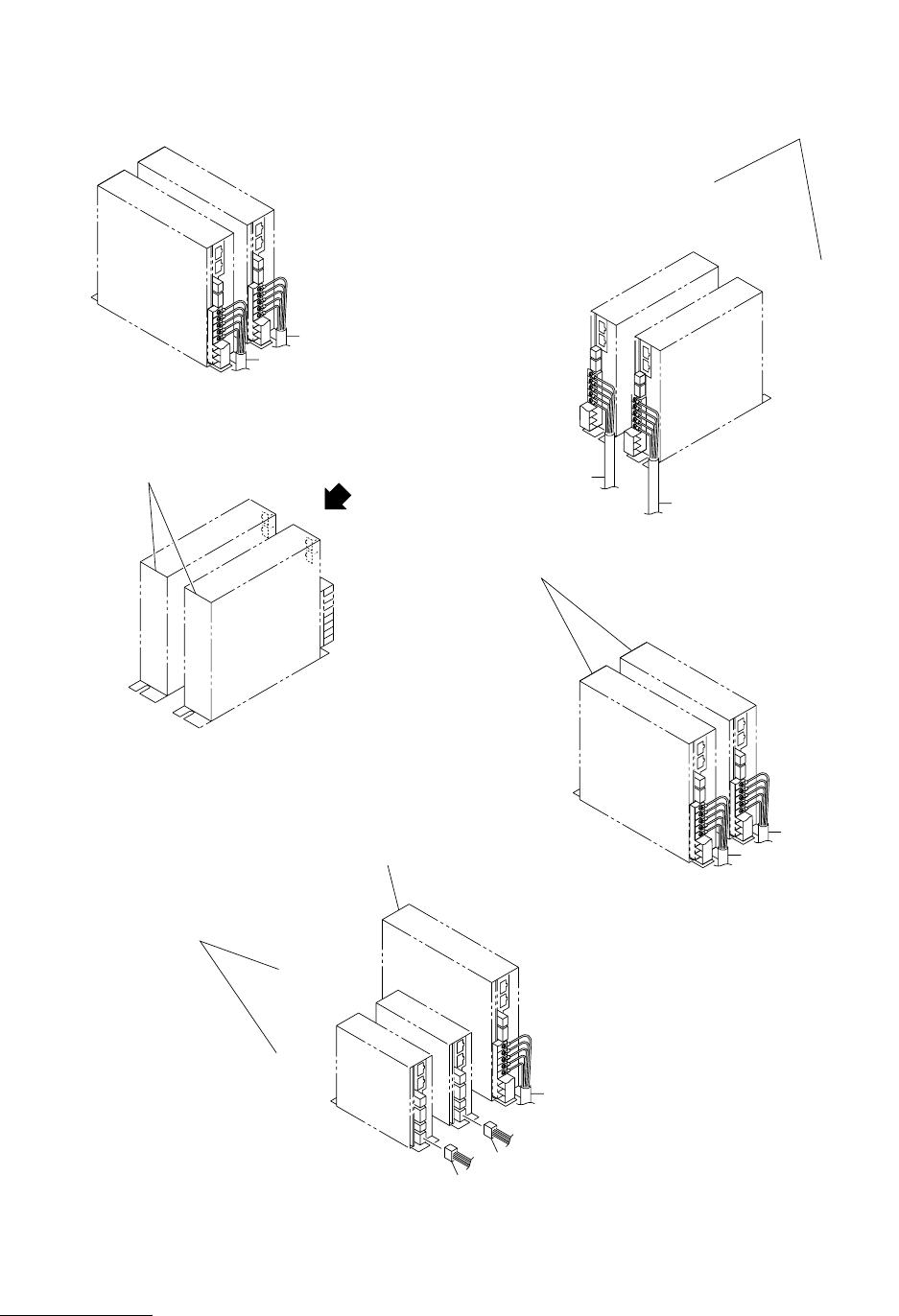

ࠤ࡯ࡉ࡞㈩✢ CABLE WIRING

Fig. SB-9 ࡄ࡞ࠬࡕ࡯࠲࠼࡜ࠗࡃ Pulse Motor Drivers

Fig.SB-9

853

TCM-X200-002

4797A-002

See Fig.H-3

Key No.257

See Fig.RM-2

Key No.152

See Fig.G-3

Key No.257

APMD29

(CY)

APMD22

(L2CV)

APMD28

(CX)

APMD16

(LCVW)

VIEW"A"

APMD17

(RCVW)

APMD26

(R2CV)

See Fig.RL-2

Key No.153

See Fig.RL-2

Key No.152

APMD13(TR)

APMD14

(CHW)

APMD19

(BPC)

852

851

855

856

859

858

857

860
