P-208-001 - 第63页
MODEL TCM-X300 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 61 EC-1 1 630 093 1402 B LO CK( CUTT ER BASE) 1 784 E C -0 1 0- 0 01 2 630 000 8029 B OL T ,HEX-SCT 3 78 4 E C - 0 1 0- 0 0 2 3 4 1 1 14 1 3 10 0…
MODEL TCM-X300
0211-002
60
ࠞ࠶࠲ㇱ CUTTER SECTION

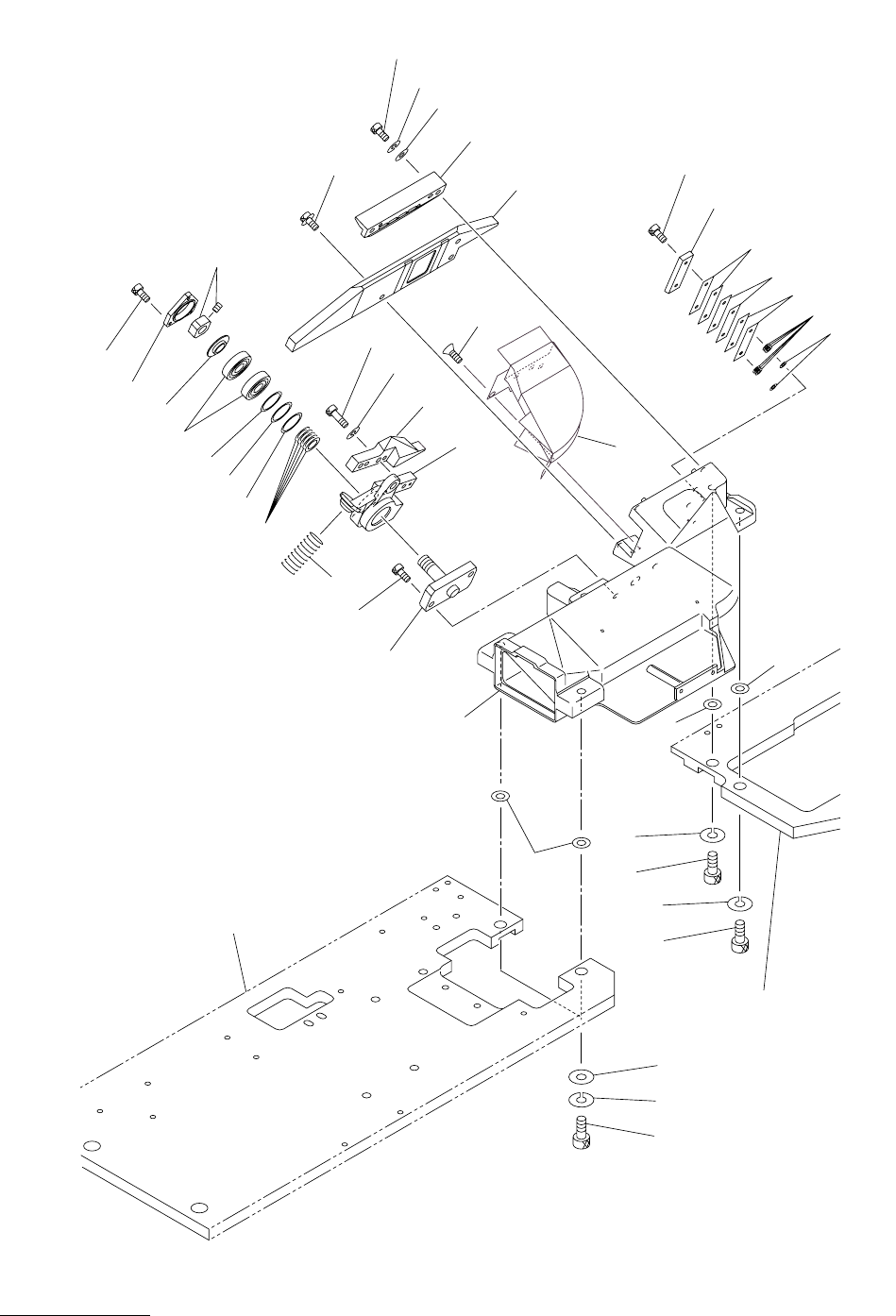

Fig. EC-1 ࠞ࠶࠲ࡌࠬ Cutter Base
See Fig.E-1
Key No.23
See Fig.E-1
Key No.5
9
3
2
3
37
36
35
40
41
38
29
7
26
28
33
25
24
20
21
27
22
23
19
17
16
15
18
39
14
13
12
2
3
4
8
7
6
1
30
5
Fig.EC-1
4797L-002
TCM-X200-003
TCM-X300-002
4797A-003
30
30
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
61
EC-1
1 630 093 1402 BLOCK(CUTTER BASE) 1 784EC-010-001
2 630 000 8029 BOLT,HEX-SCT 3 784EC-010-002
3 411 141 3100 WASHER SPR 8 4 784EC-010-003
4 411 141 4503 WASHER V 8X17X1.6 2 784EC-010-004
5 630 116 7886 PLATE(CUTTER) 1 784EC-010-005
6 630 000 7763 BOLT,HEX-SCT 2 784EC-010-006
7 411 141 6705 WASHER SPR 5 4 784EC-010-007
8 411 141 4107 WASHER V 5X10X1 2 784EC-010-008
9 630 000 8012 BOLT,HEX-SCT 1 784EC-010-009
12 630 116 6438 PLATE 1 784EC-010-012
13 630 089 7432 BOLT 3 784EC-010-013
14 630 092 7993 PIN,HINGE 1 784EC-010-014
15 630 033 7242 BEARING,PARTS(SHIM RING) 1 T0.5 784EC-010-015
16 630 033 7259 BEARING,PARTS(SHIM RING) 1 T0.3 784EC-010-016
17 630 033 7266 BEARING,PARTS(SHIM RING) 1 T0.1 784EC-010-017
18 630 087 2255 RING(0.02T) 5 T0.02 784EC-010-018
19 630 092 9294 BEARING,RADIAL 2 784EC-010-019
20 630 005 0868 BEARING,PARTS(LOCK NUT) 1 784EC-010-020
21 630 086 1488 COLLAR 1 784EC-010-021
22 630 116 1129 BOX 1 784JE-010-022
23 411 002 3201 SCR FLT 3X8 2 784JE-010-023
24 630 086 1471 PLATE 1 784EC-010-024
25 630 000 7527 BOLT,HEX-SCT 3 784EC-010-025
26 630 000 7749 BOLT,HEX-SCT 2 784EC-010-026
27 630 089 3007 LEVER 1 784EC-010-027
28 630 114 4443 PLATE(CUTTER) 1 784EC-010-028
29 630 092 0802 PLATE(BACK UP) 1 784EC-010-029
30 630 115 1731 COLLAR 4 T0.5 784EC-010-030
33 630 087 3412 SPRING,COMP 1 784EC-010-033
35 630 092 0758 BEARING,PARTS(SHIM RING) 2 T0.1 784EC-010-035
36 630 092 0765 BEARING,PARTS(SHIM RING) 2 T0.15 784EC-010-036
37 630 092 0772 BEARING,PARTS(SHIM RING) 2 T0.2 784EC-010-037
38 630 000 7510 BOLT,HEX-SCT 2 784EC-010-038
39 630 000 7879 BOLT,HEX-SCT 2 784EC-010-039
40 630 106 7476 RING(0.02T) 6 T0.02 784EC-010-040
41 630 112 1468 RING(0.01T) 2 T0.01 784EC-010-041
MODEL TCM-X300
0203-001
62
ࠞ࠶࠲ㇱ CUTTER SECTION
Fig. EC-2 ࠞ࠶࠲ࡠ࠶࠼ Cutter Rod
See Fig.EC-1
Key No.27
See Fig.KC-3
Key No.210
126
119
118
117
121
120
112
113
114
115
116
111
102
110
109
108
107
106
See Fig.E-1
Key No.23
Fig.EC-2
4797L
TCM-X300
TCM-X200
4797A
