Head Module 4.1.4. Carri er Ass’y NO. P ART NO. P A RT NAME Q ’TY TYPE REMARK 1 J7154099B RIGHT SIDE PLA TE 1 HARN ESS-HEAD002  2 J7154100B LEFT SIDE PLA TE 1 J7154100B  3 J 7154267A HARNESS PLA TE 1 J7154267A  4 J 71…

Samsung Component Placer SM321 Service Manual

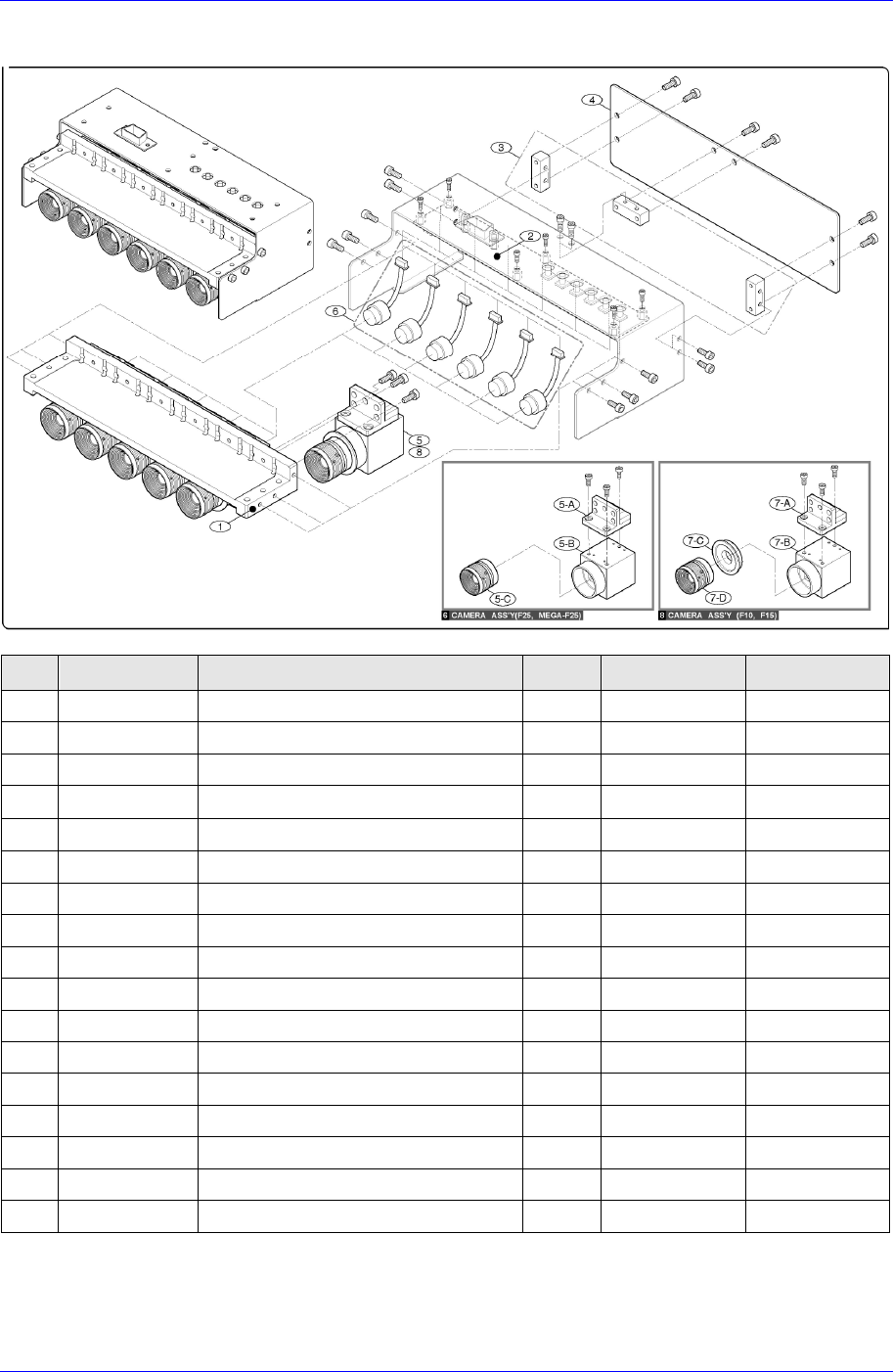

4.1.3. Fly Camera Ass’y

NO. PART NO. PART NAME Q’TY TYPE REMARK

AMERA BRACKET 1 J7155534A FLY C 1 J7155534A 

2 J90551016A C 1  AMERA COVER BOARD ASS’Y J90551016A

3 J7159265A J7159265A  COVER JOINT 3

4 J7155537A C J7155537A  AMERA REAR COVER 1

ASS’Y5 J90551006A FLY CAMERA ONE KIT (F25) 6 J90551006A 

 J90551009A FLY CAMERA ONE KIT ASS’Y (MEGA-F25) 6 J90551009A 

5-A J7155535A CAMERA HOLDER 1 J7155535A 

5-B J6751014A CCD CAMERA 1 VCC-G20E20 

5-C J9059208A LENS ASS’Y(FOV25) 1 J9059208A 

6 J9083161A FLYING CAMERA I/F CABLE ASS’Y 6 SM-VIS011 

7 J90551008A FLY CAMERA ONE KIT ASS’Y (F10) 6 J90551008A 

 J90551007A FLY CAMERA ONE KIT ASS’Y (F15) 6 J90551007A 

7-A J7155535A CAMERA HOLDER J7155535A OPTION 1

1 7-B J6751014A CCD CAMERA VCC-G20E20

7-C J7155550A COUPLER 1 J7155550A 

ASS’Y (FOV10) 7-D J9059203C LENS 1 J9059203C 

 J9059068C LENS ASS’Y (FOV15) 1 J9059068C 

4-6

Head Module

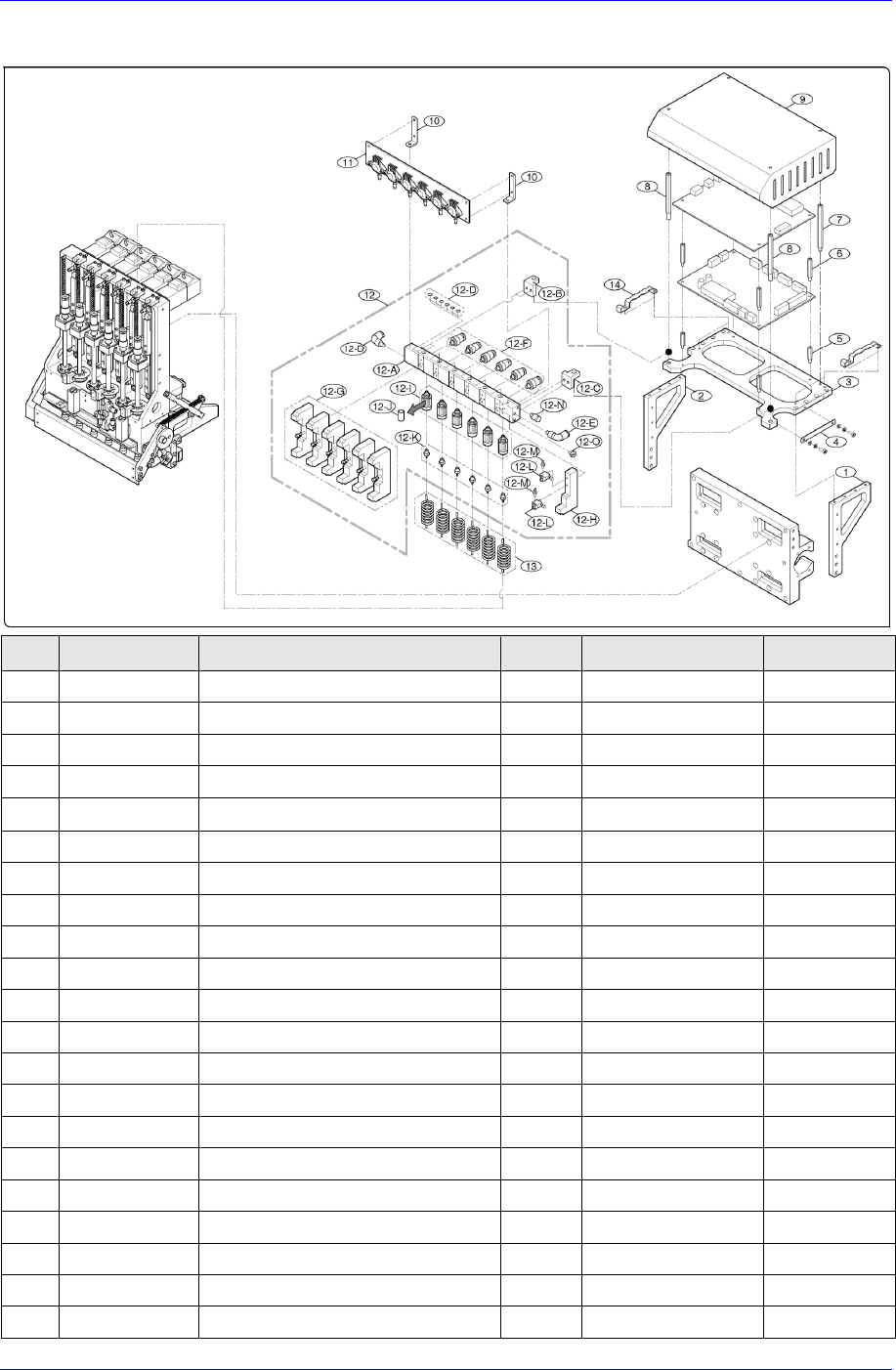

4.1.4. Carrier Ass’y

NO. PART NO. PART NAME Q’TY TYPE REMARK

1 J7154099B RIGHT SIDE PLATE 1 HARNESS-HEAD002 

2 J7154100B LEFT SIDE PLATE 1 J7154100B 

3 J7154267A HARNESS PLATE 1 J7154267A 

4 J7154105A SIDE CABLE TIE 2 HARNESS-HEAD013 

5 J6103023A HEX SUPPORT 20 4 M3X20 (BOLT-NUT) 

6 J6103011A HEX SUPPORT 30 4 M3X30 (BOLT-NUT) 

7 J7055660A HEAD COVER SUPPORT-R 4 J7055660A 

8 J7055661A HEAD COVER SUPPORT-F 1 J7055661A 

9 J7155569A HEAD TOP COVER 1 J7155569A

10 J7055662A VACUUM SENSOR BRACKET 2 J7055662A

11 J9060412A HEAD VACUUM SENSOR SUB BOARD 1 REV 1.1

12 J9055246D AIR MODULE 1 J9055246D

12-A J 1 J71551001A 71551001A MANIFOLD

12-B J 7155544A FOOT BRACKET-L 1 J7155544A 

545A FOOT BRACKET-R 1 J7155545A 12-C J7155 

12-D J J7155546A  7155546A INSERT 6

12-E J6711260A ONE TOUCH FITTING 2 FSE04-M5C 

12-F J671 O1261A ONE T UCH FITTING 6 FSC04-M5C 

12-G J6702048A SOLENOID

J6702049A SOLENOID

VALVE 6 VA01PEP34-1U-F 

12-H VALVE 1 RCS242-M3-D24NP

12-I J 6 J9058090A 9058090A FILTER ASSY

4-7

Samsung Component Placer SM321 Service Manual

NO. PART NO. PART NAME Q’TY TYPE REMARK

12-J J7458002A FILTER ELEMENT 6 LF-M5-60-Z-ELEMENT

12-K J6711262A MINI FITTING 6 BC-03-M5 

12-L J6703039A SPEED CONTROLLER 2 SPR-Z-M3N 

12-M J6711263A MINI FITTING 2 BE-04-M3 

12-N J6705009A SILENCER 1 AS-5 

12-O J6712016A PLUG 1 N220 1900J 

13 J6713022B COIL TUBE(POLYURETHANE) 6 J6713022B 

14 J7155571A TOP TIE MOUNT 1 J7155571A 

4.2. Flying Vision

4.2.1. Flying Vision 替换代表事例

由于头， Flying Vision被损坏时

Fl g

为贴装微小部件，替换成其他配戴FOV的摄像机时

4.2.2. 必要工具

T Wre r Hex Wrench

4.2.3. Flying Vision 替换次序

该替换次序以Flying Vision的 Moduel单位替换为前提。

部冲击

yin Camera 影像输出出现异常时

nch (其他提供工具) o

Flying Vision

Flying Camera

Outer Illumination

4-8
