Electric Device 1 1-7

Samsung Component Placer SM321 Service Manual

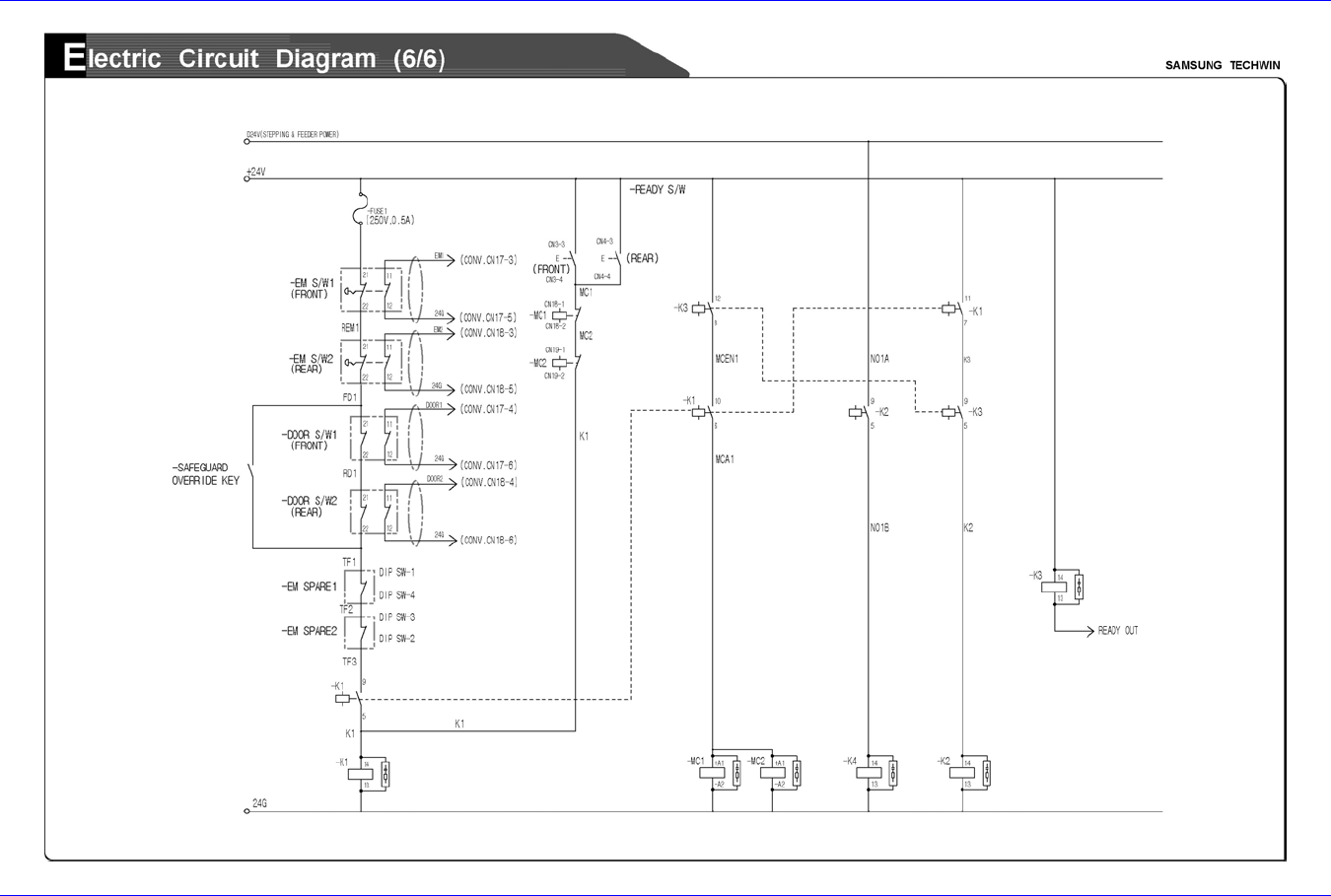

11-6

Electric Device

11-7

Samsung Component Placer SM321 Service Manual

11-8

NO. PART NO. PART NAME Q’TY TYPE REMARK

1 J9080658C MAIN POWER CABLE ASS’Y  SM_PW001 

2 J9080659A MAIN POWER INPUT CABLE ASS’Y  SM_PW002 

3 J9080660C MCCB_NF1 CABLE ASS’Y  SM_PW003 

4 J9080661A NF1_MAIN SWITCH CABLE ASS’Y  SM_PW004 

5 J9083146A MAIN SWITCH_TRANS CABLE ASS’Y  SM21-PW005 

6 J9080663A TRANS_CP1,2,3 CABLE ASS’Y  SM_PW006 

7 J9080664A CP1,2_TB1 CABLE ASS’Y  SM_PW007 

8 J9080665A CP3_TB1_MC2 CABLE ASS’Y  SM_PW008 

9 J9080666A MC1,2_TB1 CABLE ASS’Y  SM_PW009 

10 J9080667A FRONT MONITOR/PC POWER CABLE ASS’Y  SM_PW010 

11 J9080668B TB1_PS#1,PS#2 POWER CABLE ASS’Y  SM_PW011 

12 J9080669A FAN POWER CABLE ASS’Y  SM_PW012 

13 J9080670A FAN(SERVO) POWER CABLE ASS’Y  SM_PW013 

14 J9080672A Z1,Z2 SERVO POWER CABLE ASS’Y  SM_PW015 

15 J9080673A Z3,Z4 SERVO POWER CABLE ASS’Y  SM_PW016 

16 J9080674A Z5,Z6 SERVO POWER CABLE ASS’Y  SM_PW017 

17 J9080675A SW,WD SERVO POWER CABLE ASS’Y  SM_PW018 

18 J9080676A X,Y2 SERVO POWER CABLE ASS’Y  SM_PW019 

19 J9080677A Y1 SERVO POWER CABLE ASS’Y  SM_PW020 

20 J9083147A CONVEYOR PACK B/D CABLE ASS’Y  SM21-PW021 

21 J9083148A STEPPING DRIVER POWER CABLE ASS’Y  SM21-PW022 

22 J9083149A DC24V MAIN POWER CABLE ASS’Y  SM21-PW025 

23 J9083150A TRANSFORMER INPUT EXT.CABLE ASS’Y  SM21-PW030 
