Electric Device 1 1-11 11.4. Electric Device

Samsung Component Placer SM321 Service Manual

11-10

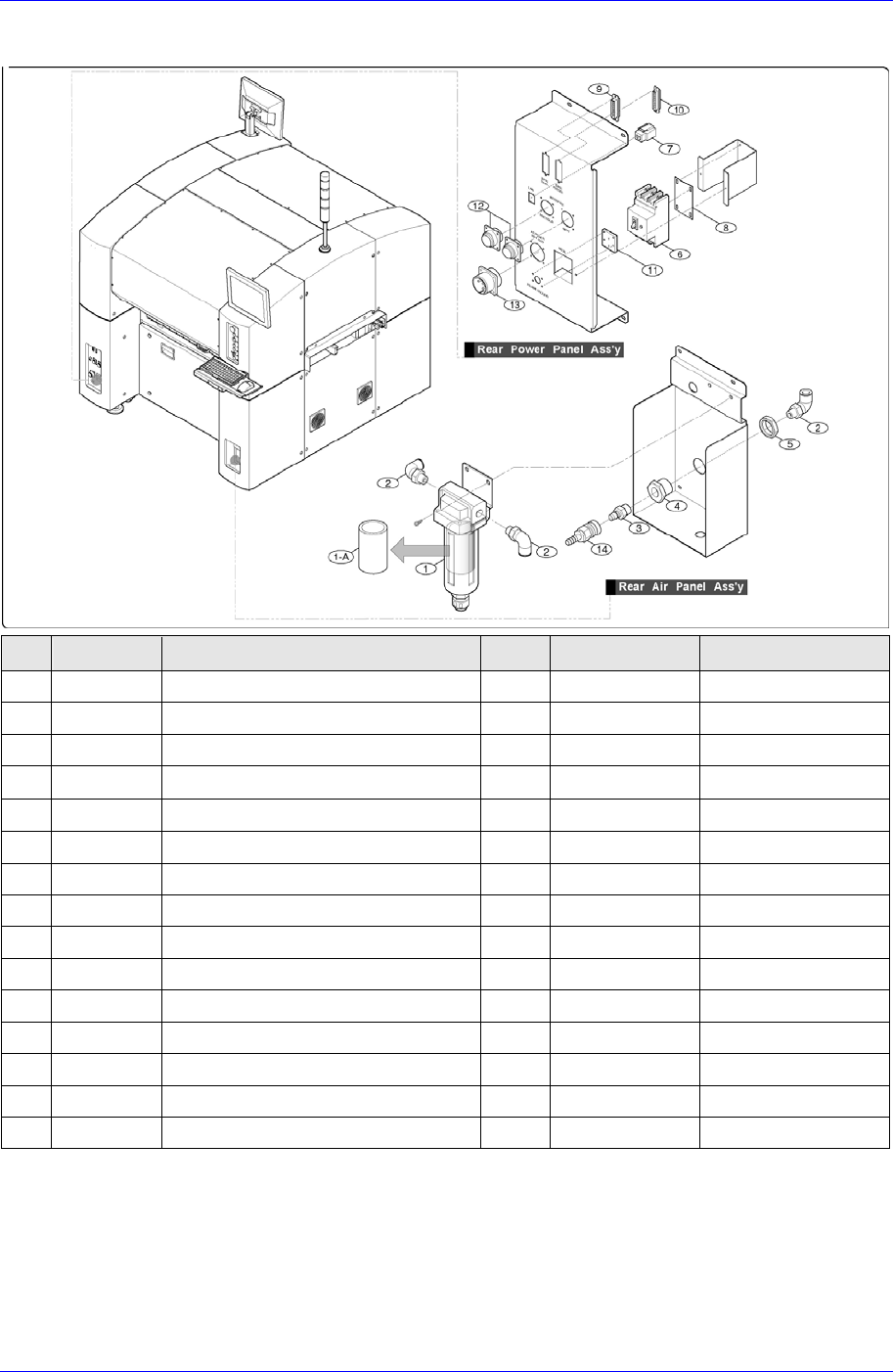

11.3.2. Rear Function Panel Ass’y

NO. PART NO. PART NAME Q’TY TYPE REMARK

1 J6708016A AIR FILTER 1 AF40-04BC 1

1-A J6708018A FILTER ELEMENT 1 AF40P-060S 1-A

2 J1301187 ELBOW FITTING 3 PL12-04 2

3 J1300862 COUPLER (CORK) 1 CM24 3

4 J2101163 NIPPLE-QC 1 0131-611035 4

5 J2101164 NIPPLE-QC NUT 1 0131-611036 5

6 J3603020A MAIN CIRCUIT BREAKER 1 GV2-ME20 6

7 J3713061A CONNECTOR 1 555376-1 7

8 J3716070A PANEL 1 GV2-AF02 8

9 J9083151A #1 TRAY FEEDER CABLE ASSY  SM-VM001 9

10 J9083152A #2 TRAY FEEDER CABLE ASSY  SM-VM002 10

11 J7152027A GROUND TERMINAL 1 J7152027A 11

12 J9080774A INLINE IN/OUT CABLE ASSY  SM-CV006 12

13 J9080659A MAIN POWER INPUT CABLE ASSY  SM-PW002 13

14 J7500010A COUPLER 1 J7500010A 14

Electric Device

11-11

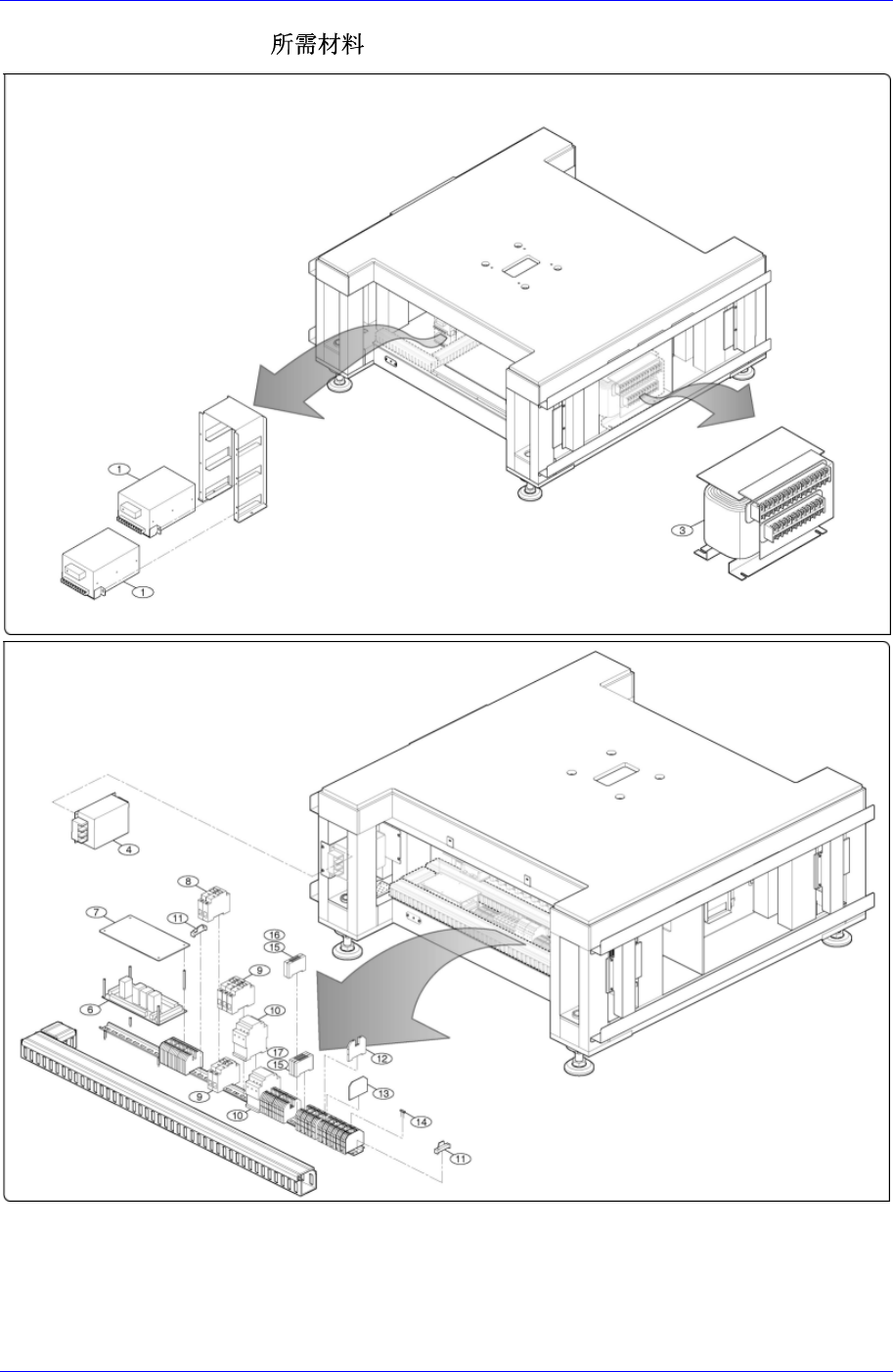

11.4. Electric Device

Samsung Component Placer SM321 Service Manual

11-12

NO. PART NO. PART NAME Q’TY TYPE REMARK

1 J4402007A POWER SUPPLY 2 MR KOR4-H

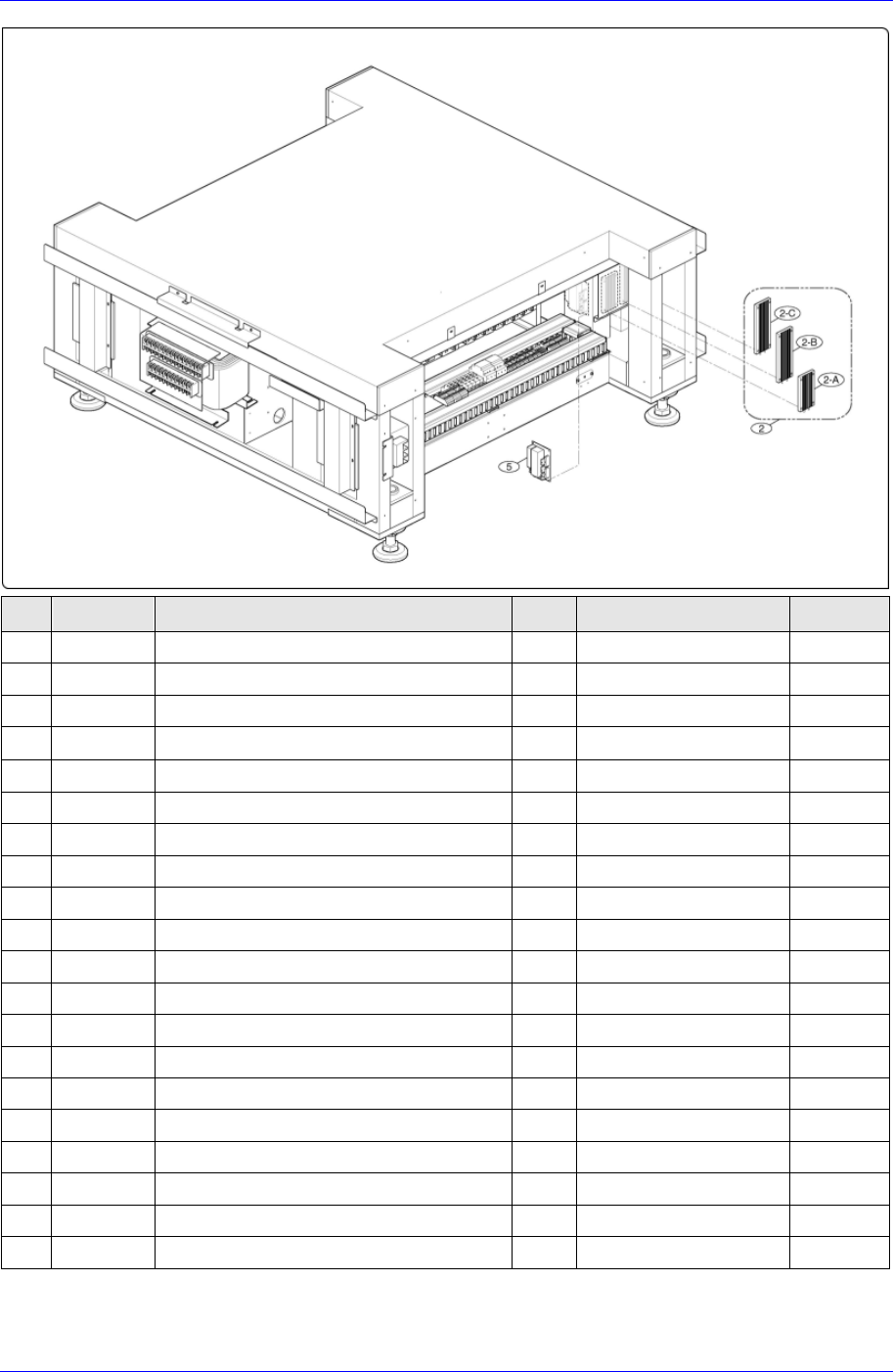

2 J9080834A REGENERATIVE RESISTOR CABLE ASS’Y  SM_MD037

2-A J9083208A X-REGENERATIVE RESISTOR CABLE ASS’Y  IRN100S-X

2-B J9083209A Y1-REGENERATIVE RESISTOR CABLE ASS’Y  IRN150S-Y1

2-C J9083210A Y2-REGENERATIVE RESISTOR CABLE ASS’Y  IRN150S-Y2

3 J2605009A TRANSFORMER 1 4.7KVA, 3PHASE

4 J2901009A NOISE FILTER 1 P3B4020-EA(3PH,20A)

5 J9060014B CONVEYOR PACK BOARD ASS’Y 1 30-CONV3-IO BOARD(2)

6 J9060400A SAFETY CONTROL & DC POWER BOARD 1 J9060400A

7 J7251007A BOARD COVER 1 J7251007A

8 J3603015A CIRCUIT PROTECTOR 2 C60A-2P-C16(23812)

9 J3603016A CIRCUIT PROTECTOR 1 C60A-3P-C16(23825)

10 J3501040A MAGNETIC CONTACTOR 2 LC1D096BD, DC24V, 1A1B

11 J3716042A STOPPER 2 UA-51

12 J3716044A TEMINAL BLOCK 45 WDU 2.5

13 J3716046A END PLATE 11 WAP2.5-10

14 J3716047A CROSS CONNECTION 6 ZQV2.5

15 J3716067A FUSE TERMINAL BLOCK 5 ASK 1

16 J3601019A FUSE 2 250V 10A

17 J3601018A FUSE 3 250V 5A
