Samsung Component Plac er SM321 Service Manual 11-12 NO. P ART NO. P ART NA ME Q’TY TY PE REMARK 1 J4402007A P OWER SUPPL Y 2 MR KOR4-H 2 J9080834A REGENERA TIVE RESIST OR CABLE ASS’Y SM_MD037 2-A J9083208A X -REGENERA…
Electric Device
11-11
11.4. Electric Device
Samsung Component Placer SM321 Service Manual
11-12
NO. PART NO. PART NAME Q’TY TYPE REMARK
1 J4402007A POWER SUPPLY 2 MR KOR4-H
2 J9080834A REGENERATIVE RESISTOR CABLE ASS’Y SM_MD037
2-A J9083208A X-REGENERATIVE RESISTOR CABLE ASS’Y IRN100S-X
2-B J9083209A Y1-REGENERATIVE RESISTOR CABLE ASS’Y IRN150S-Y1
2-C J9083210A Y2-REGENERATIVE RESISTOR CABLE ASS’Y IRN150S-Y2
3 J2605009A TRANSFORMER 1 4.7KVA, 3PHASE
4 J2901009A NOISE FILTER 1 P3B4020-EA(3PH,20A)
5 J9060014B CONVEYOR PACK BOARD ASS’Y 1 30-CONV3-IO BOARD(2)
6 J9060400A SAFETY CONTROL & DC POWER BOARD 1 J9060400A
7 J7251007A BOARD COVER 1 J7251007A
8 J3603015A CIRCUIT PROTECTOR 2 C60A-2P-C16(23812)
9 J3603016A CIRCUIT PROTECTOR 1 C60A-3P-C16(23825)
10 J3501040A MAGNETIC CONTACTOR 2 LC1D096BD, DC24V, 1A1B
11 J3716042A STOPPER 2 UA-51
12 J3716044A TEMINAL BLOCK 45 WDU 2.5
13 J3716046A END PLATE 11 WAP2.5-10
14 J3716047A CROSS CONNECTION 6 ZQV2.5
15 J3716067A FUSE TERMINAL BLOCK 5 ASK 1
16 J3601019A FUSE 2 250V 10A
17 J3601018A FUSE 3 250V 5A
Electric Device
11-13
11.4.1. Power Supply
无法输入各种 24V电源时
VME RACK 及传感器类启动不良(PC除外)
I/F bord类启动不良
11.4.1.1. 必要工具
十字十字形(+)螺丝刀, 一字一字形(-)螺丝刀
T Wrench or Hex Wrench
11.4.1.2. Power Supply 替换次序

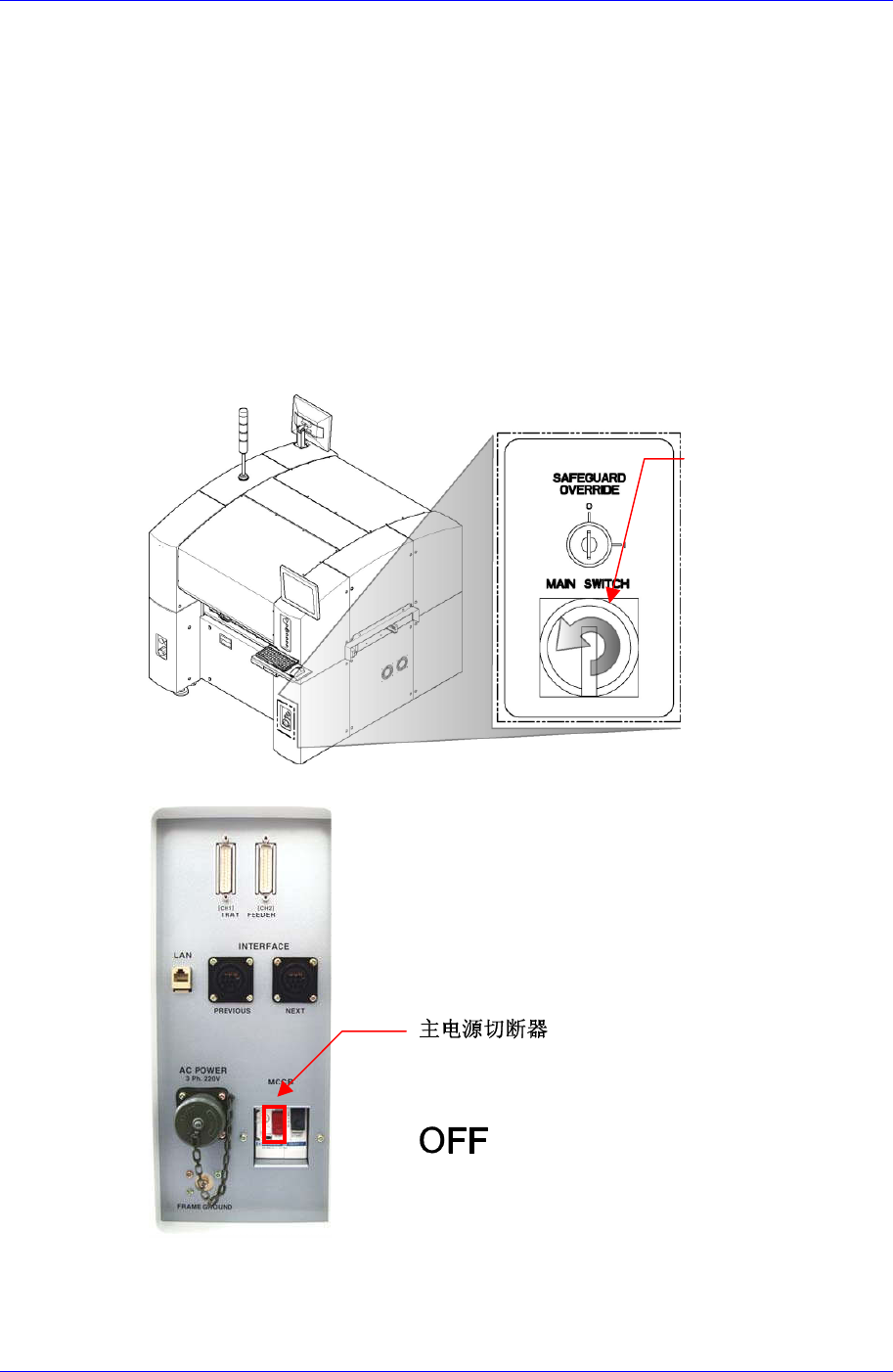

1. 正常关闭PC后关闭设备前面的Main Switch。
2. 请务必关闭设备后面的MCB完全切断电源。
3. 利用十字十字形(+)螺丝刀分离设备前面盖。
4. 请分离连接在Power Supply的电缆。
Main Switch 关闭方
向(逆时针方向)
(Main Circuit Breaker)
