Multilayer Ceramic Capacitor
- 24 -

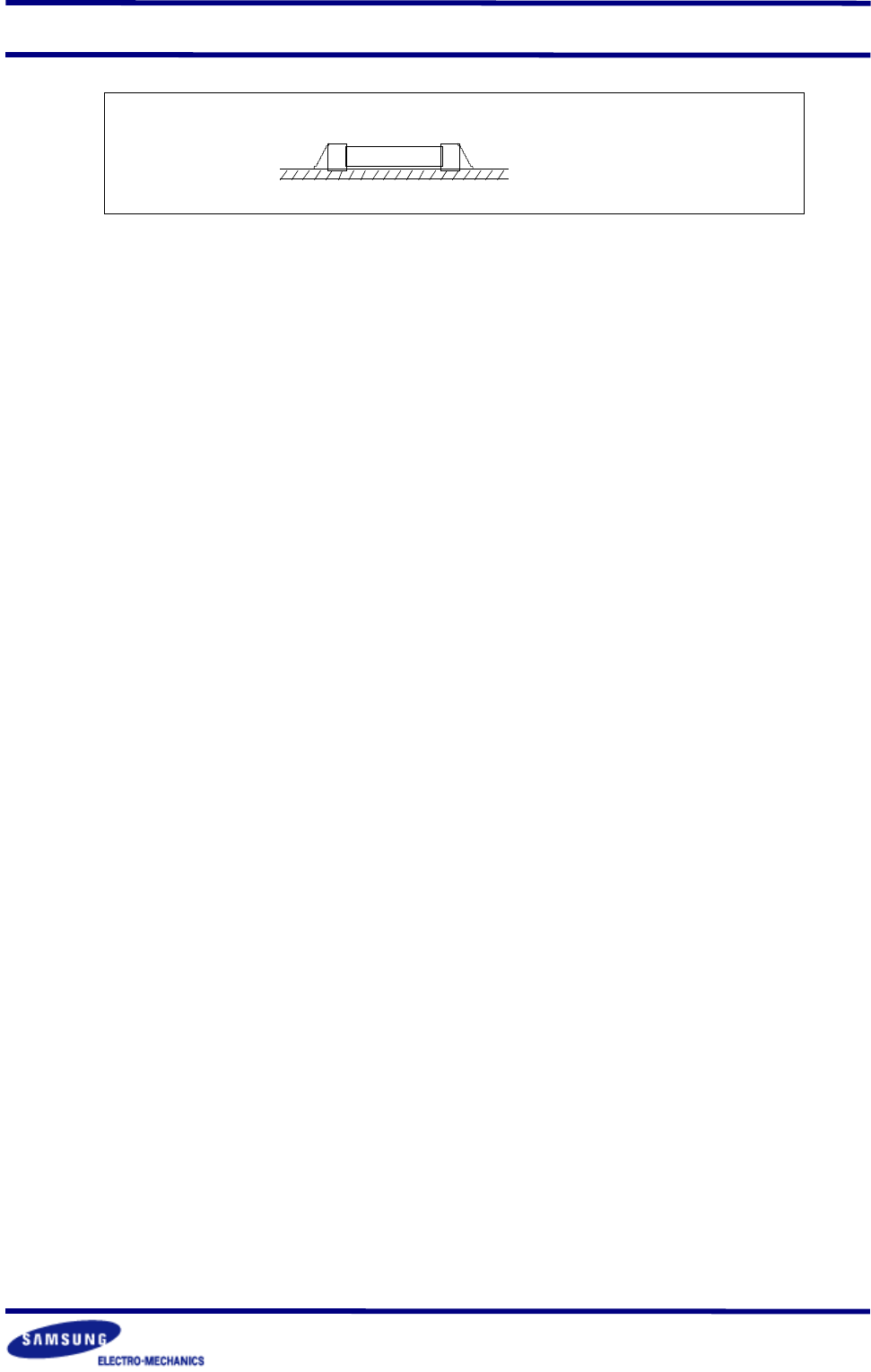

Good
▶
Cooling
Natural cooling using air is recommended. If the chips are dipped into solvent for cleaning,
the temperature difference(
△
T) must be less than 100
℃
6-6. Cleaning
If rosin flux is used, cleaning usually is unnecessary. When strongly activated flux is used,
chlorine in the flux may dissolve into some types of cleaning fluids, thereby affecting the chip
capacitors. This means that the cleaning fluid must be carefully selected, and should always
be new.
▶
Notes for Separating Multiple, Shared PC Boards.
A multi-PC board is separated into many individual circuit boards after soldering has been
completed. If the board is bent or distorted at the time of separation, cracks may occur in the
chip capacitors. Carefully choose a separation method that minimizes the bending of the
circuit board.
Multilayer Ceramic Capacitor
- 25 -
■
CROSS REFERENCE
P/N COMPANY SAMSUNG AVX
JOHANSO
N
KEMET KYOCE RA MURATA NOVACAP PANASONIC ROHM
TAIYO
- YUDEN
TDK
VITRAMO
N
①
COMPANY MODEL(MLCC)
CL - - C CM GRM - ECJ MCH MK C VJ
②
SIZE
(EIA/JIS)
0201(0603)
03 - - - 03 33 - Z - 063 0603 -
0402(1005)
05 0402 R07 0402 05 36 0402 0 15 105 1005 0402
0603(1608)
10 0603 R14 0603 105 39 0603 1 18 107 1608 0603
0805(2012)
21 0805 R15 0805 21 40 0805 2 21 212 2012 0805
1206(3216)
31 1206 R18 1206 316 42-6 1206 3 31 316 3216 1206
1210(3225)
32 1210 S41 1210 32 42-2 1210 4 32 325 3225 1210
1808(4520)
42 1808 R29 1808 42 - 1808 - - - 4520 1808
1812(4532)
43 1812 S43 1812 43 43-2 1812 - 43 432 4532 1812
2220(5750)
55 - - 2220 55 44-1 2221 - - 550 5650 -
③
TEMPERATURE
CHARACTERISTIC
COG(NPO)
C A N G CG COG/CH N C A C COG/CH A
P2H(N150)
P S - - P P2H - P - P PH -
R2H(N220)
R 1 - - R R2H - R - R RH -
S2H(N330)
S 3 - - S S2H - S - S SH -
T2H(N470)
T O - - T T2H - T - T TH -
U2J(N750)
U Z - - U U2J - U UJ U UJ -
S2L
L Y - - SL SL - G SL SL SL -
X7R
B C W R(X) X7R X7R B B C BJ X7R(B) Y(X)
Z5U
E E Z U - Z5U Z - E - Z5U U
Y5V
F G Y V Y5V Y5V Y F F F Y5V -
④
NOMINAL CAPACITANCE
EX) 103=10,000
㎊
221=220
㎊
225=2,200,000
㎊
=2.2
㎌
1R5=1.5
㎊
010=1
㎊
⑤
CAPACITANCE TOLERANCE
B:
±
0.1
㎊
C:
±
0.25
㎊
D:
±
0.5
㎊
F:
±
1% G:
±
2% J:
±
5% K:
±
10% M:
±
20% Z:-20~+80%
⑥
RATED
VOLTAGE
6.3V
Q 6 - 9 06 6.3 - 0J - J 0J -
10 V
P Z 100 8 10 10 - 1A 4 L 1A -
16 V
O Y 160 4 16 16 160 1C 3 E 1C J
25 V
A 3 250 3 25 25 250 1E 2 T 1E X
50 V
B 5 500 5 50 50 500 1H 5 U 1H A
100 V
C 1 101 1 100 100 101 2A 1 - 2A B
200V
D 2 201 2 200 200 201 2D - - - C
250V
E V - - 250 250 251 - - - 2E -
500V
G 7 501 - 500 500 501 - - - - E
630V
H - - - 630 630 - - - - 2J -
1000V
I A 102 - 1000 1K 102 - - - 3A G
2000V
J G 202 - 2000 2K 202 - - - 3D -
3000V
K H 302 - 3000 3K 302 - - - 3F H
4000V
- J - 4000 - 402 - - - - -
⑦
TERMINATION
NICKEL BARRIER
N T V C A (GRM) N - (MCH) - - X
Ag/Pd
P 1 - - B (GR) P - (MC) - - F
⑧
PACKAGE
BULK(VINYL)
B 9 (NONE) - B PB * X - B B B
PAPER TAPING
C 2, 4 T, R - T, L PT T E,V,W K, L T T C, P
PLASTIC TAPING
E 1, 3 E, U - H, N PT - F, Y P, Q T - T, R
BULK CASE
P 7 - - C PC - C C - - G
Multilayer Ceramic Capacitor
- 26 -
▷
SAMSUNG : CL 31 B 102 K B N C
① ② ③ ④ ⑤⑥⑦ ⑧
▷
AVX :12065C103KAT2A
②⑥③④⑤ ⑦⑧
▷
JOHANSON : 500 R18 W 103 K B 4 T
⑥ ② ③④⑤⑦ ⑧
▷
KEMET : C 1206 C 103 K 5 R A C
①② ④⑤⑥③ ⑦
▷
KYOCERA : CM 316 X7R 103 K 50 A T
①②③④⑤⑥⑦⑧
▷
MURATA : GRM 42-6 R 103 K 50 PT
① ② ③④⑤⑥⑧
▷
NOVACAP : 1206 N 272 J 101 N X T M
②③④⑤⑥⑦ ⑧
▷
PANASONIC : ECJ V 1H 103 K B H
①⑧⑥ ④⑤③②
▷
ROHM : MCH 31 5 C 103 K K
①⑦ ② ⑥ ③ ④ ⑤ ⑧
▷
TAIYO-YUDEN:UMK316B103K-T
⑥① ②③ ④⑤ ⑧
▷
TDK : C 3216 X7R 1H 103 K T
①②③⑥④⑤⑧
▷
VITRAMON : VJ 1206 Y 103 K X A A T
①②③④⑤⑦⑥ ⑧
