PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
35.62 Technical Reference Manual Chapter Issue 3 Jan 08
Figure 35-15 Vortex Plus Underscreen Cleaner
Lift Solenoid
Filter Housing
Vortex Plus - Mechanical Detail
(covers removed)
Oscillation Motor
Solvent Pump
Vacuum Pressure Switch
Drive Belt
Drive Pulley
Oscillator Assembly
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 3 Jan 08 Technical Reference Manual 35.63
Figure 35-16 Underscreen Cleaner
View from Left Side of Machine
Camera Y Linear
Bearing Guide Rail
(in 2 positions)
USC Linear
Bearing Block
(in 2 positions)
USC Magnet
(in 2 positions)
USC Home Sensor
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
35.64 Technical Reference Manual Chapter Issue 3 Jan 08

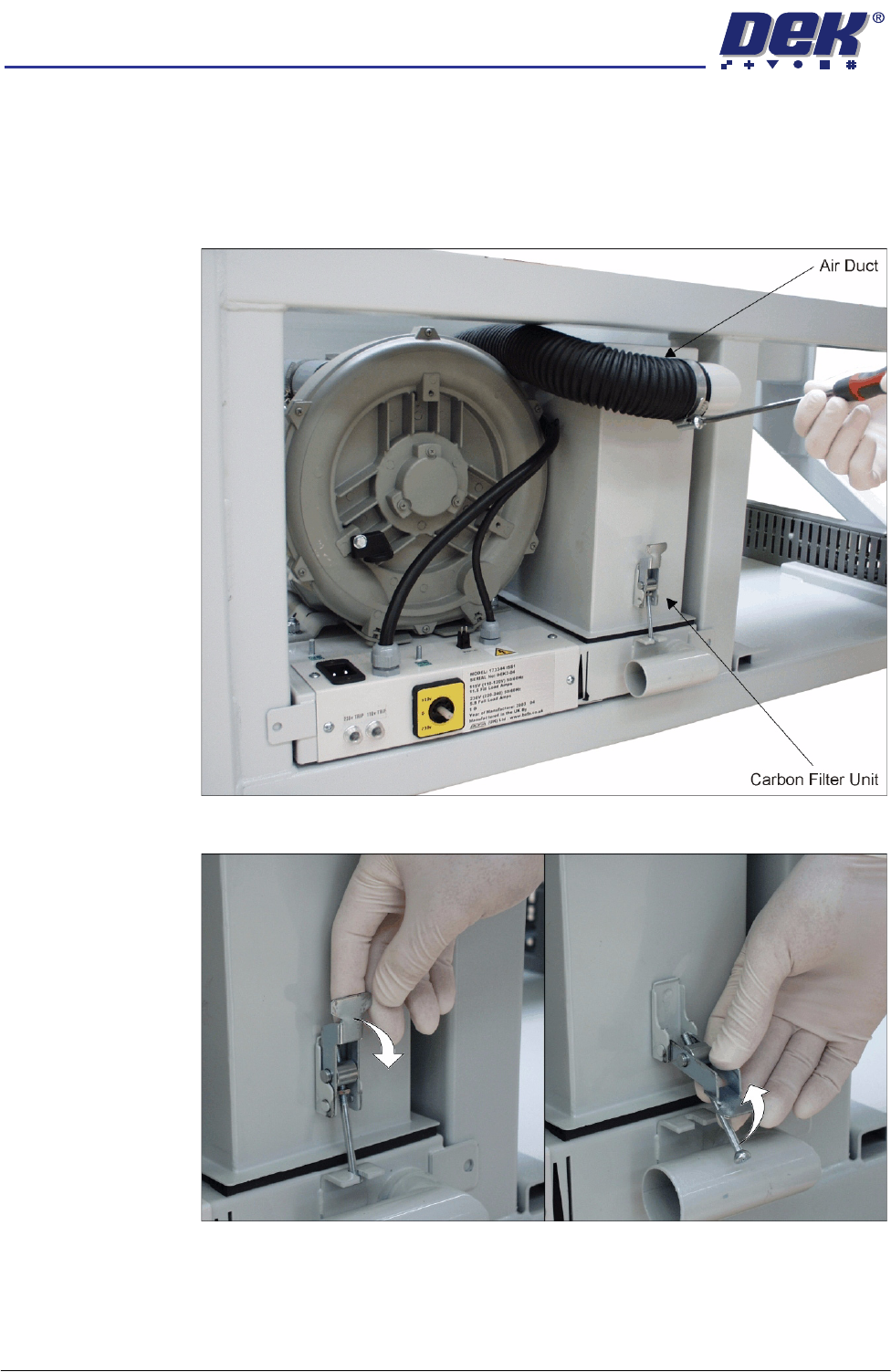

VF35i Vacuum
Filtration Unit
To replace any of the filters in the Vacuum Filtration Unit, carry out the following:
1. Ensure the machine is switched OFF.
2. Remove the machine front panel.
3. Remove the air duct from the carbon filter unit using a screwdriver or box
spanner to release the securing clip.
4. Release the filter retaining clip to detach the filters from the base unit.
