PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 3 Jan 08 Technical Reference Manual 35.67
3. Disconnect the mains connector from the vacuum filtration unit.
4. Using an 8mm spanner, remove the two nuts on both earth bonding points
and disconnect the earth wires.
5. Using a 4mm Allen key, remove the four securing screws, two on the left
side and two on the right side of the vacuum filtration unit.
6. Slide the vacuum filtration unit part way out of the machine and undo the
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
35.68 Technical Reference Manual Chapter Issue 3 Jan 08

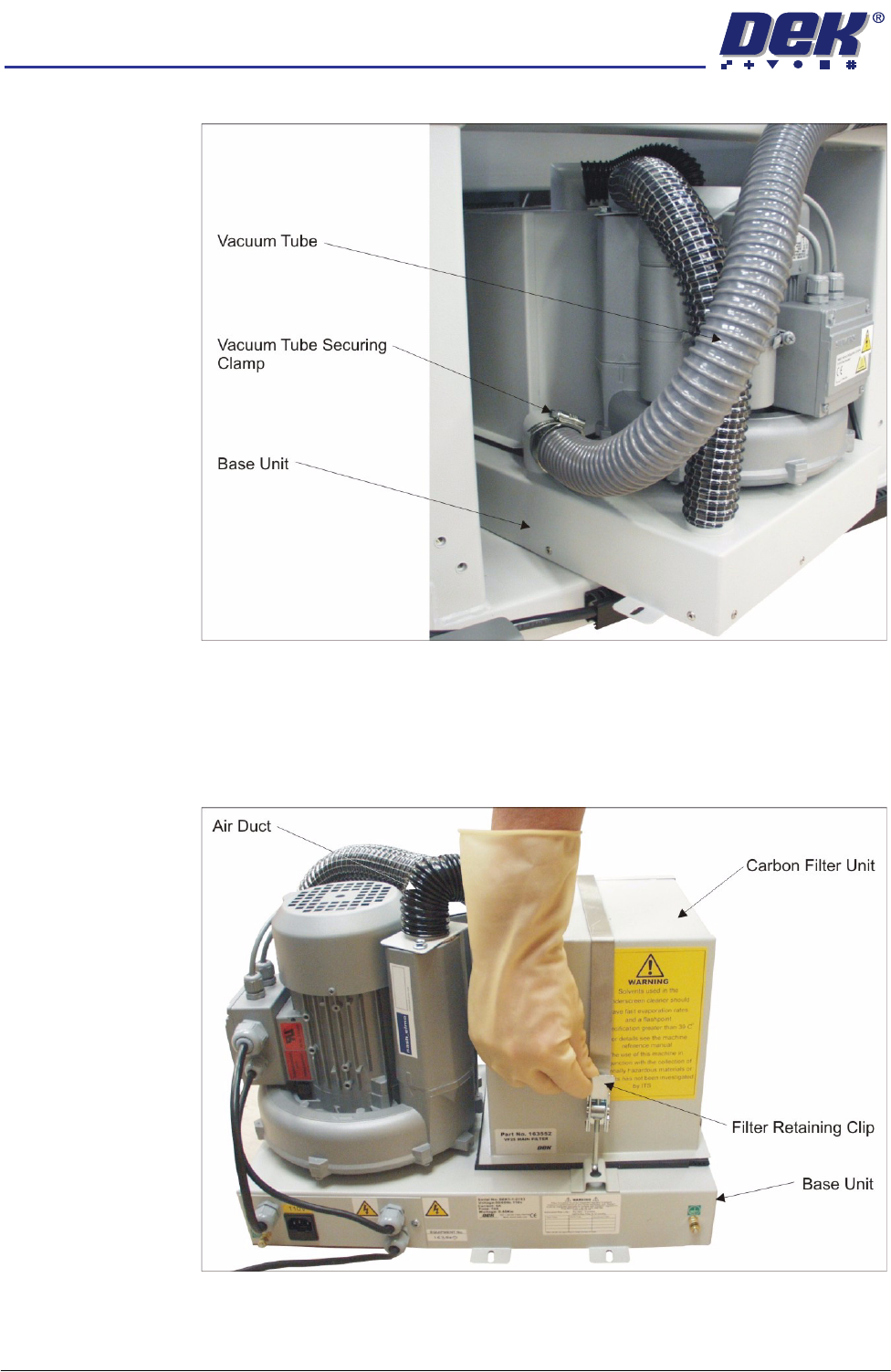

vacuum tube securing clamp.
7. Pull off the vacuum tube from the base unit.
8. Carefully slide the vacuum filtration unit out of the machine ensuring that the
cables do not snag and place the unit on the floor.
9. Release the filter retaining clip to detach the carbon filter unit from the base
unit.
10. Remove the air duct from the carbon filter unit.
11. Turn the carbon filter unit upside down.
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 3 Jan 08 Technical Reference Manual 35.69

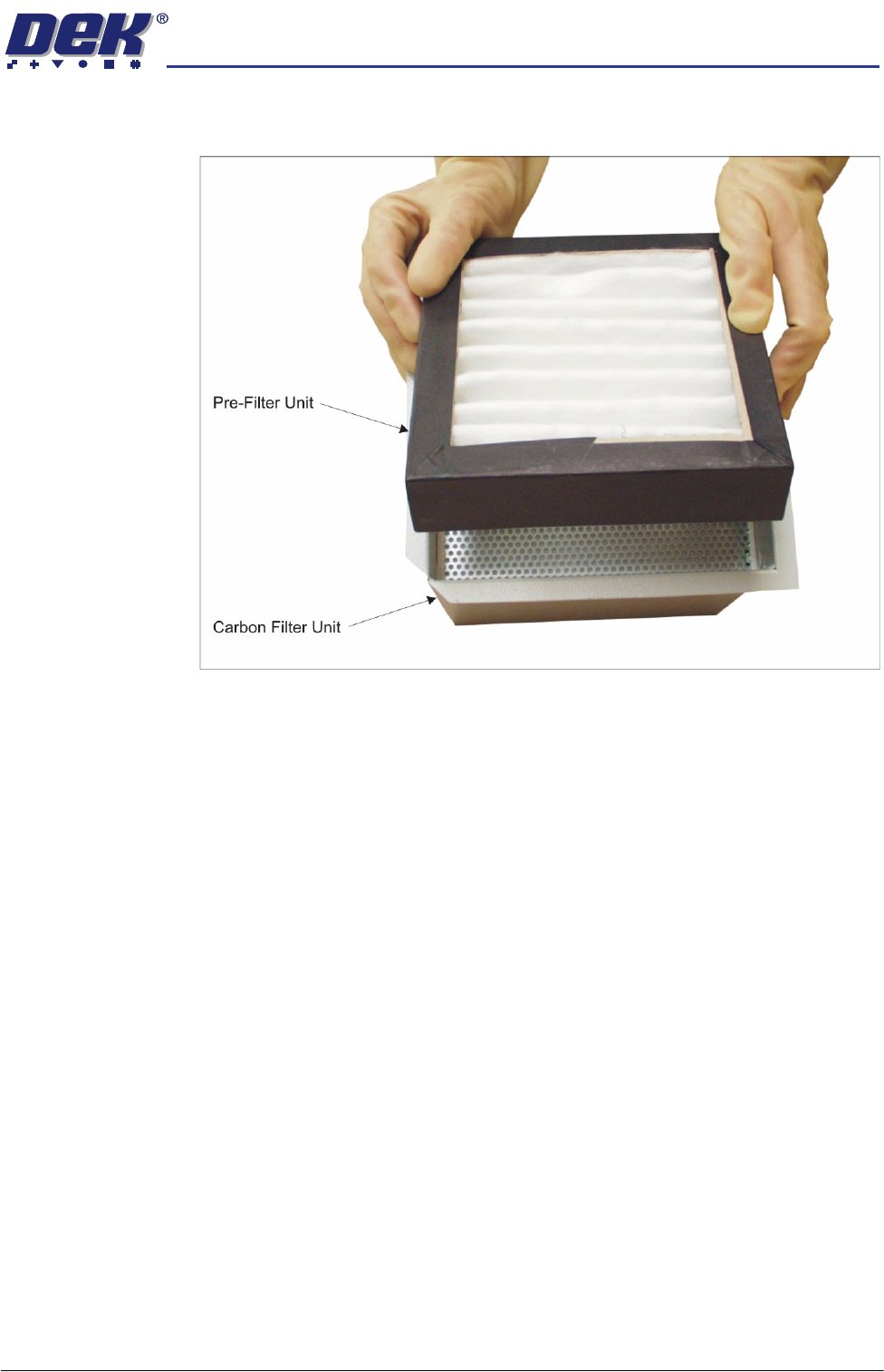

12. To separate the pre-filter unit from the carbon filter unit, pull the pre-filter
upwards using the pre-filter frame.
13. Replace the carbon\pre-filter as required and refit the pre-filter into the
carbon filter unit.
14. Refit the air duct to the carbon filter unit.
15. Refit the carbon filter unit to the vacuum filtration unit.
16. Secure the carbon filter unit using the filter retaining clip.
17. Slide the vacuum filtration unit back into the machine approximately halfway
and refit the vacuum tube.
18. Locate the vacuum filtration unit over its four securing holes and secure to
the base of the machine using the four securing screws.
19. Reconnect the two earth leads and the mains connector.
20. Refit the panel removed in Step 2.
