N67xx DUT Power Supply Installation 1-13

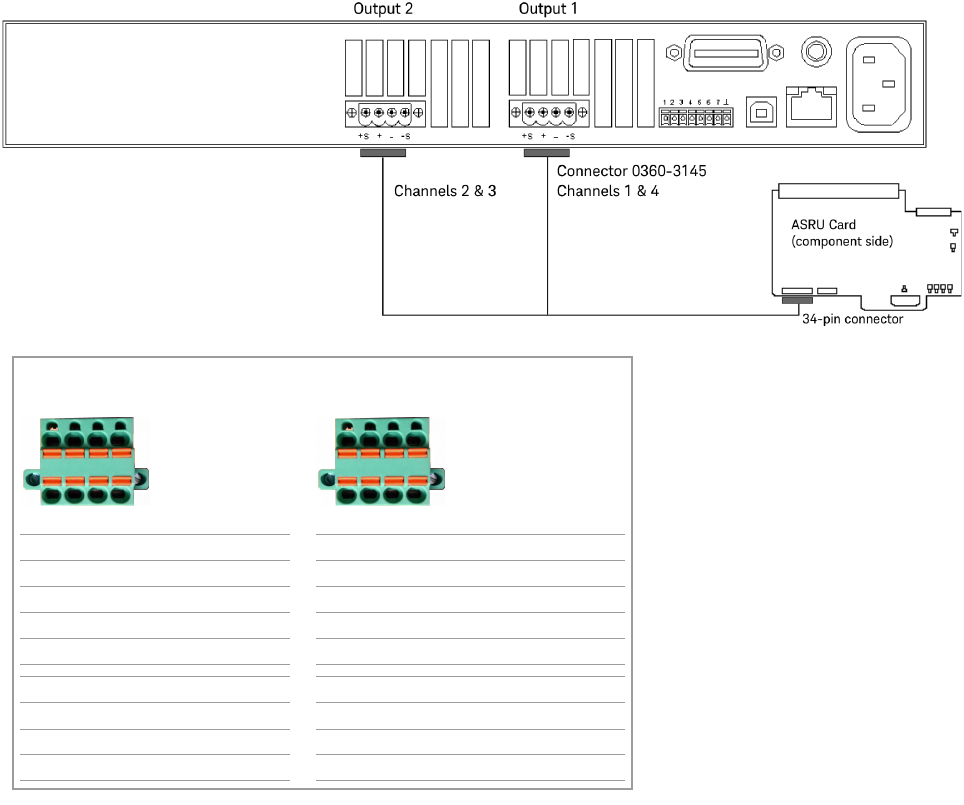

Figure 1-8 N6752 output connections – Channels 1 through 4

Channels 2 & 3 Channels 1 & 4

P/S Label on cable Cable color P/S Label on cable Cable color

+S G1 BLU +S J1 BLK

+ G2 BLU/WHT + J2 BLK/WHT

– G3 GRN/WHT – J3 BRN/WHT

–S G4 WHT –S J4 WHT

+S H1 RED +S F1 GRN

+ H2 RED/WHT + F2 RED, WHT/RED

– H3 ORN/WHT – F3 BLK, WHT/BLK

–S H4 WHT –S F4 WHT

G1 G2 G3 G4

H1 H2 H3 H4

F1 F2 F3 F4

J1 J2 J3 J4

1-14 N67xx DUT Power Supply Installation

Connecting to the Utility Card

The Utility Card provides an additional two channels of high current output

(channels 7–8). The power supply connector on the card is J601.

Table 1-4 Connector A to J601 on Utility Card

Pin Wire Color Wire Size Con/Terminal

1 VIO 24 CH7 S+

2 WHT 24 CH7 S–

3RED/BRN12

4BRN 12

5RED/ORN12

6ORN 12

7 BLK/BRN 12

8BLK 12

9 RED/BLK 12

10 RED 12

11 WHT 24 CH8 S–

12 GRN 24 CH8 S+

CH7 –

CH7 +

CH8 +

CH8 –

N67xx DUT Power Supply Installation 1-15

Figure 1-9 N6752 output connections – Channels 7 and 8 (Utility Card)

Channel 8 Channel 7

P/S Label on cable Cable color P/S Label on cable Cable color

+S CH8 S+ GRN +S CH7 S+ VIO

+ CH8 + BLK/BRN

BLK

+ CH7 + RED/ORN

ORN

– CH8 - RED/BLK

RED

– CH7 - RED/BRN

BRN

–S CH8 S- WHT –S CH7 S- WHT

+–

–

CH8

+–

–

CH7
