14
Placement heads
Nozzle changer

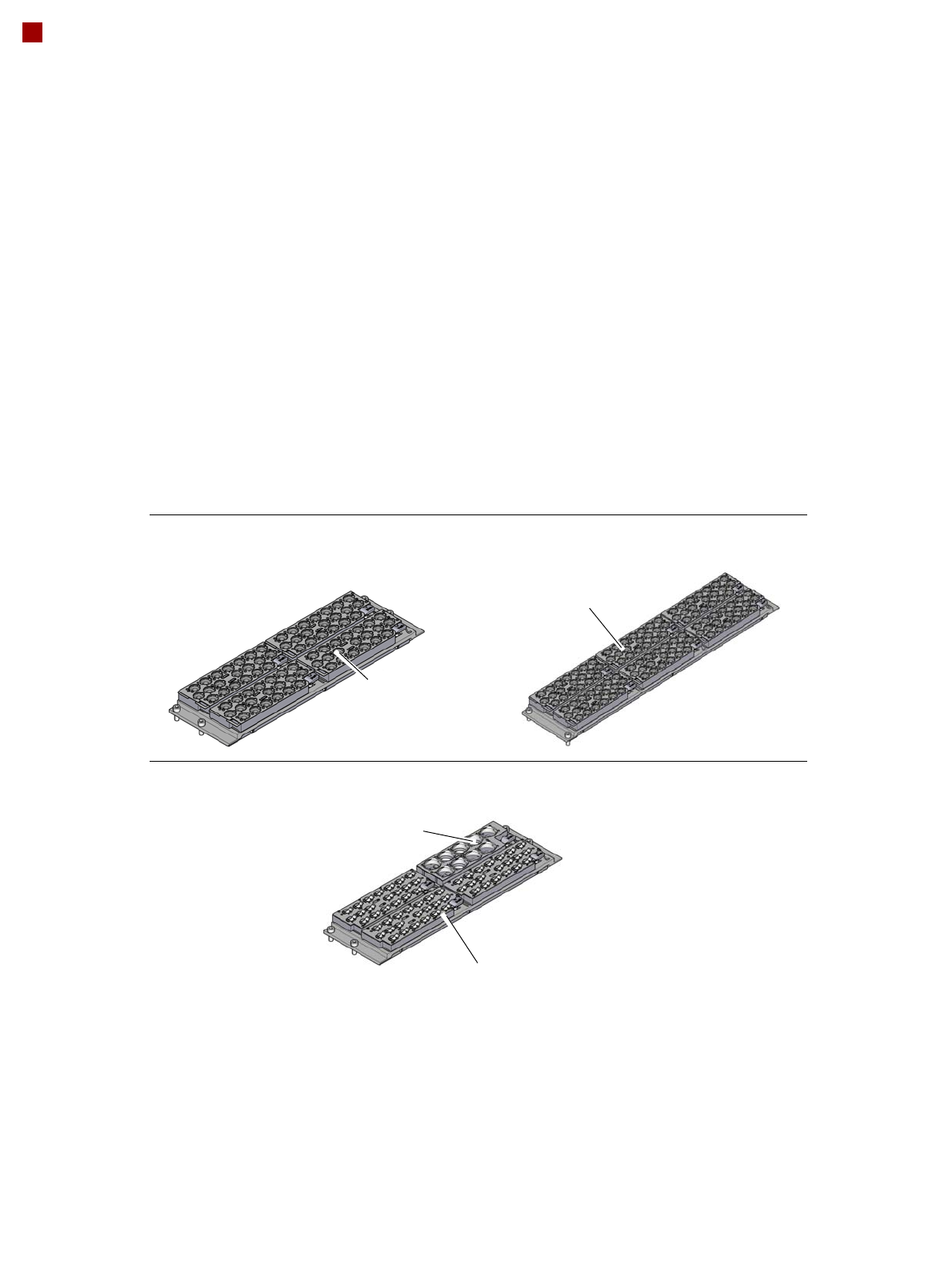

Nozzle changer for the SIPLACE SpeedStar
Nozzle changer for the SIPLACE MultiStar
4 magazines for 20 nozzles of
type 40xx
6 magazines for 20 nozzles of
type 40xx
Magazine for 9 nozzles of
type 28xx
Magazine for 20 nozzles of type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit. This checks whether the nozzle magazines
are seated correctly on the mount. In addition, the nozzle changer recognizes whether the
magazines are for 40xx, 20xx or 28xx nozzles by the code.
15
Placement heads
Nozzle changer
Technical data
Nozzle changer for the SIPLACE SpeedStar
Number of magazines
a
SIPLACE X4 S micron
SIPLACE X4i S micron
a) All magazines in the nozzle changer must be configured.
6
4
Number of nozzle garages
SIPLACE X4 S micron
SIPLACE X4i S micron
120
80
Nozzle types 40xx
Nozzle changer for the SIPLACE MultiStar
Number of magazines
a
SIPLACE X4 S micron
SIPLACE X4i S micron
6
4
Maximum number of nozzle garages
SIPLACE X4 S micron
SIPLACE X4i S micron
120
80
Standard configuration
SIPLACE X4 S micron
SIPLACE X4i S micron
80 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
60 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types
40xx, 11xx, 12xx
20xx, 28xx
16
Board conveyor

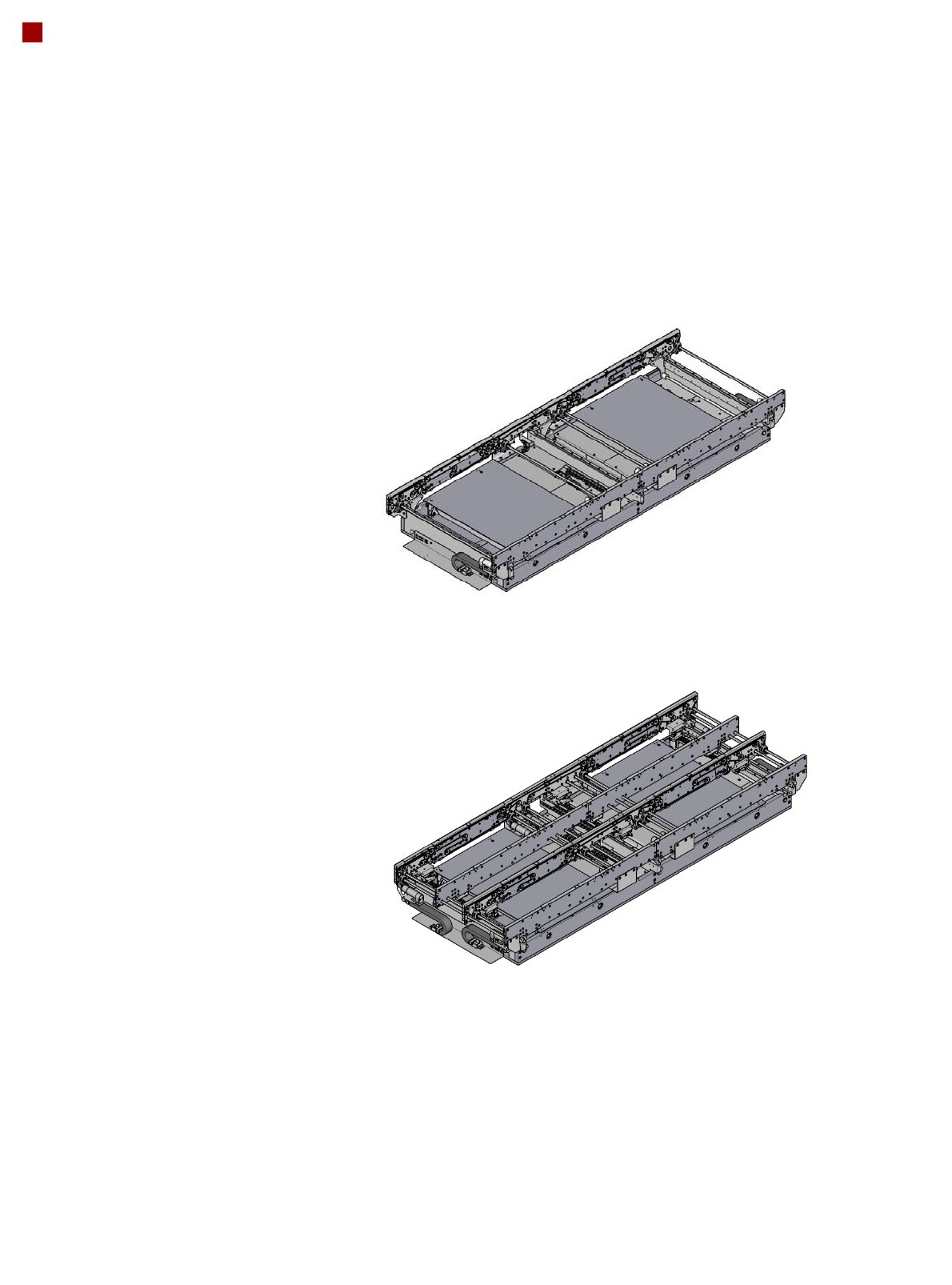

Single and flexible dual conveyor
Single conveyor
When using a single con-
veyor, boards are moved
behind one another, along a
conveyor lane and into the
placement machine, where
they are placed. This con-
veyor variant is particularly
suitable for very wide boards.
Flexible dual conveyor
To keep the range of PCBs to
be processed as wide as
possible - whilst maintaining
maximum productivity - the
flexible SIPLACE dual con-
veyor allows you to choose
between single conveyor
mode and dual conveyor
mode. In the dual conveyor,
two boards are moved into
the placement machine and
placed either at the same
time (synchronous mode) or
alternatively (asynchronous
mode). This makes it possi-
ble to process the top and
bottom sides of a board in
one line.
Single conveyor
