38 SIPLACE station software General The diversity of functions and applications in the station software illustrates the extreme flexibility of our machines. This software supports operators in the ir daily work, helping …
37

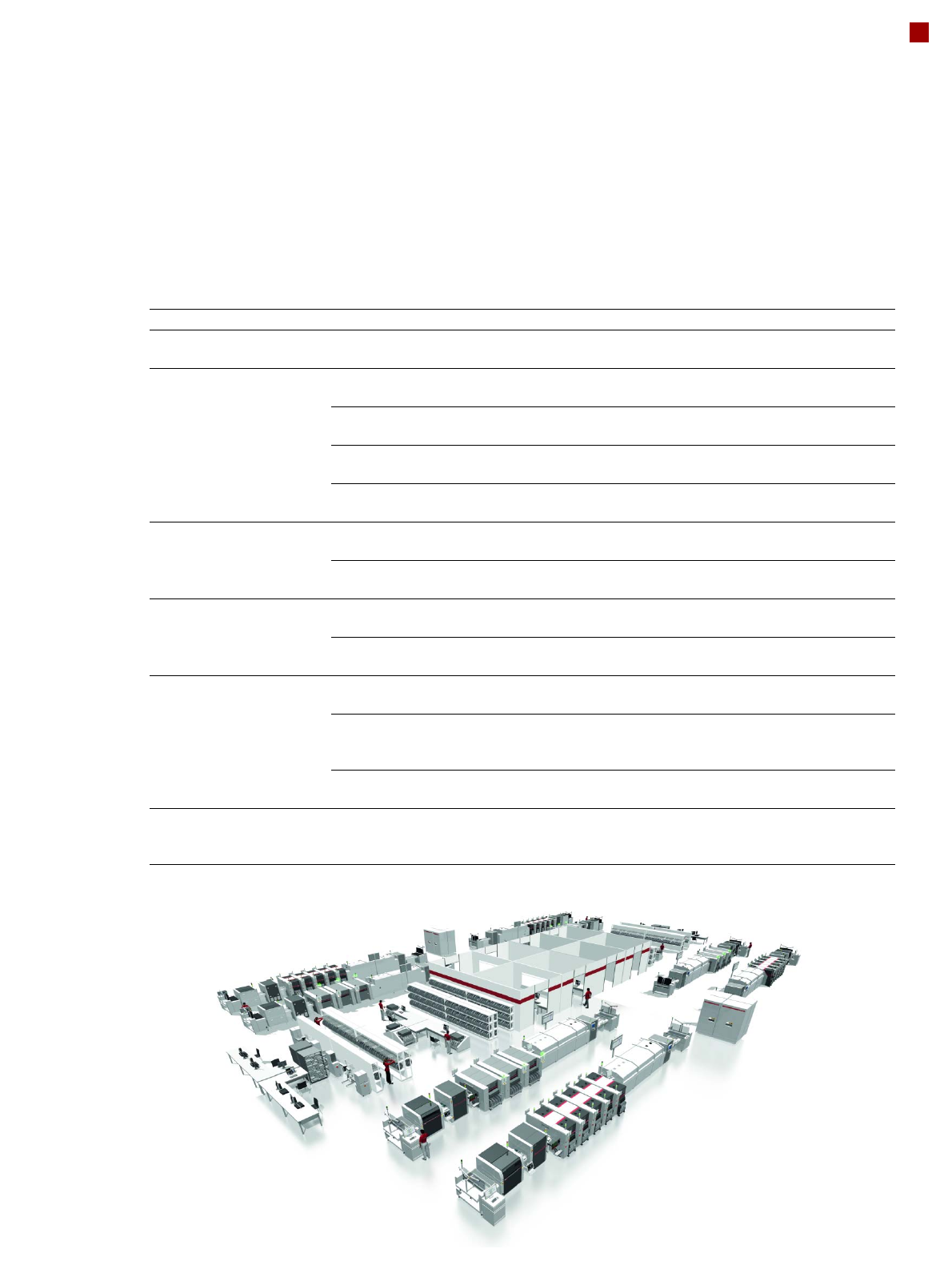

ASM Software Products
Overview
Workflows ASM Software Product Standard Option
Station operation and con-
trol
SIPLACE station software X
Product definition,
optimization and line con-
trol
SIPLACE Pro
One application for all programming tasks
X
SIPLACE SiCluster Professional / SiCluster Multiline
Fully automatic product grouping
X
SIPLACE LED Pairing
Simple placement of LEDs with multiple classes
X
ASM EDM
Convenient data management for placement programs
X
Production monitoring &
process control
ASM OIS
Operator Information System
X
SIPLACE Explorer
Line monitoring system
X
Setup verification & trace-
ability
ASM Setup Center
Avoid setup errors with reliable setup verification
X
ASM Traceability
Traceability of the placement processes
X
Material Management ASM Line Monitor
Line based view of material consumption at a glance
X
ASM Material Manager
Control and optimize the management of SMD material at your
production plant
X
SIPLACE Material Setup Assistant
Optimize setup preparation and material flow offline
X
Factory Integration
ASM OIB
Seamless integration of SIPLACE software solutions with third
party systems
X
38
SIPLACE station software
General
The diversity of functions and
applications in the station
software illustrates the
extreme flexibility of our
machines. This software
supports operators in their
daily work, helping them to
simplify processes on the
machine and to increase pro-
ductivity along the line. Three
different user levels ensure
that each operator has
access to the information
and options required to per-
form his specific work on the
machine.
Our station software is con-
tinuously equipped with new
features so that we are sure
to keep pace with our cus-
tomers' needs.
The benefits of the station
software at a glance:
Quick access to all
machine functions and
systems
Whether maintenance tasks,
calibration or board conveyor
functions, the station soft-
ware gives you quick and
easy access to everything
you need.
Best in Class" NPI Feature
New products need to be
produced error-free right
from the very first board.
SIPLACE fully satisfies this
requirement with its
SIPLACE station software.
For example, unknown com-
ponent shapes can be
described in detail in only a
few minutes with the Compo-
nent Shape Wizard. If you
need to correct pickup and
nozzle positions, this is
quickly and conveniently
possible with the station soft-
ware and can even be trans-
ferred to SIPLACE Pro when
necessary
Very user-friendly design
The intuitive and structured
design of the station software
helps the user to complete
his tasks quickly and effi-
ciently during the placement
process.
Highly robust in the place-
ment process
The station software is
equipped with many func-
tions to keep the placement
process stable and running
reliably, despite changing
conditions.
This includes self-repair rou-
tines for nozzles and feeder
modules, automatic recogni-
tion of board warpage, self-
repair routines for fiducial
recognition and much more.
39
Technical data
Electrical ratings and compressed air supply
SIPLACE X4 S micron / X4i S micron
Electrical ratings
Supply voltage Fuse
Main power supply 3 x 360 V~ to 3 x 480 V~ ± 10 %; 50/60 Hz
3 x 200 V~ to 3 x 240 V~ ± 10 %; 50/60 Hz
a
a) With options package
Mains power connection Cable 5 x 4 mm² with CEKON connector (3 x 360 V~ to 3 x 480 V~)
Cable 5 x 4 mm² (3 x 200 V~ to 3 x 240 V)
Energy consumption
With a vacuum pump
b
b) Vacuum pump for C&P20 head only.
With two vacuum pumps
b
Without vacuum pumps
c
c) Optional
Nominal apparent power 2.50 kVA 3.85 kVA 1.30 kVA
Nominal active power 1.70 kW 2.45 kW 1.00 kW
Compressed air supply
Compressed air pressure
values
p
min
p
max
0.5 MPa = 5.0 bar
1.0 MPa = 10 bar
Operating pressure 0.48 MPa ± 0.025 MPa (4.8 bar ± 0.25 bar)
Compressed air connec-
tion
R 3/4" inner thread (pipe thread) with 1/2" hose connection
Compressed air consumption
a
a) Average consumption values.
Placement head configuration Compressed air
consumption
b
with vacuum pump
b) Under normal atmospheric conditions at 20°C and 1013 hPa.
Compressed air
consumption
without vacuum
pump
c
c) Optional
SIPLACE X4 S micron
C&P20 M / C&P20 M / C&P20 M / C&P20 M 260 Nl/min 990 Nl/min
SIPLACE X4i S micron
C&P20 M / C&P20 M / C&P20 M / C&P20 M
C&P20 M / C&P20 M / CPP / CPP
260 Nl/min
370 Nl/min
990 Nl/min
720 Nl/min
Compressed air specification
Particle size 0.1 µm
Particle density 0.1 mg/m³
Maximum oil content
(class 1)
Particle density 0.01 mg/m³
Pressure dewpoint
(class 4)
Dewpoint + 3°
