43 Technical data Maneuvering radii for the X component trolleys Maneuvering radius R 600 mm Distance L1: Machine center to outer edge of X co mponent trolley 1470 mm Distance L2: Machine center to wall 2070 mm

Technical data

Placement machine dimensions

Placement machine center of gravity

X = 0 mm

Y = 0 mm

Z = 630 mm

Technical data

Maneuvering radii for the X component trolleys

Maneuvering radius R 600 mm

Distance L1: Machine center to outer edge of X component

trolley

1470 mm

Distance L2: Machine center to wall 2070 mm

Technical data

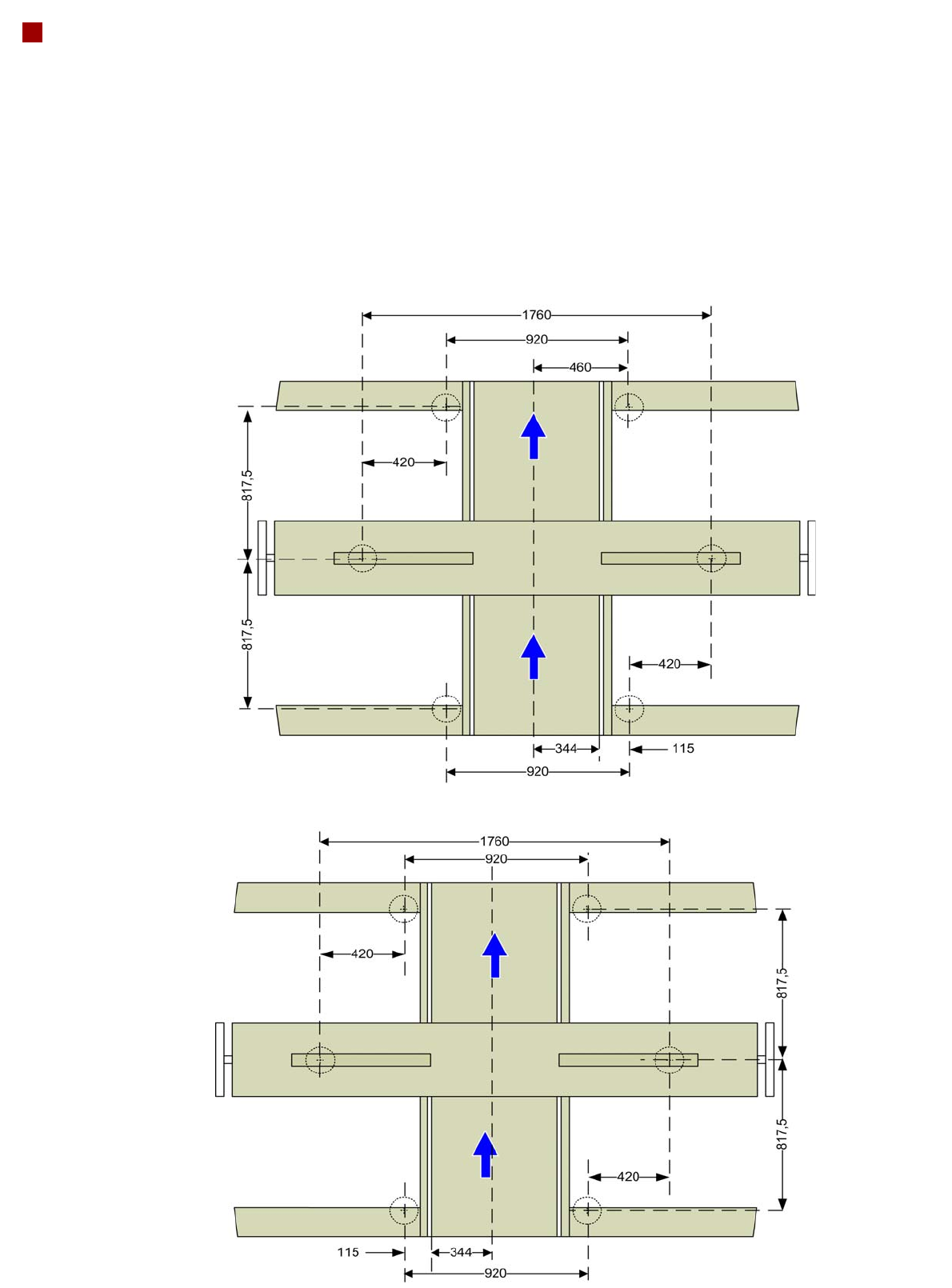

Spacing distances for single conveyor

Fixed conveyor side at maxi-

mum right position

a) The value depends on the position of the fixed side. See table of adjustable side positions on page 19. All dimen-

sions in millimeters.

Fixed conveyor side at maximum

left position
