6 SIPLACE X4 S micron / X4i S micron Machine description Intelligent placement solu- tions for maximum stan- dards Maximum flexib ility, top per- formance or placement qual- ity: the SIPLACE X4 S micron / X4i S micron ha…
5

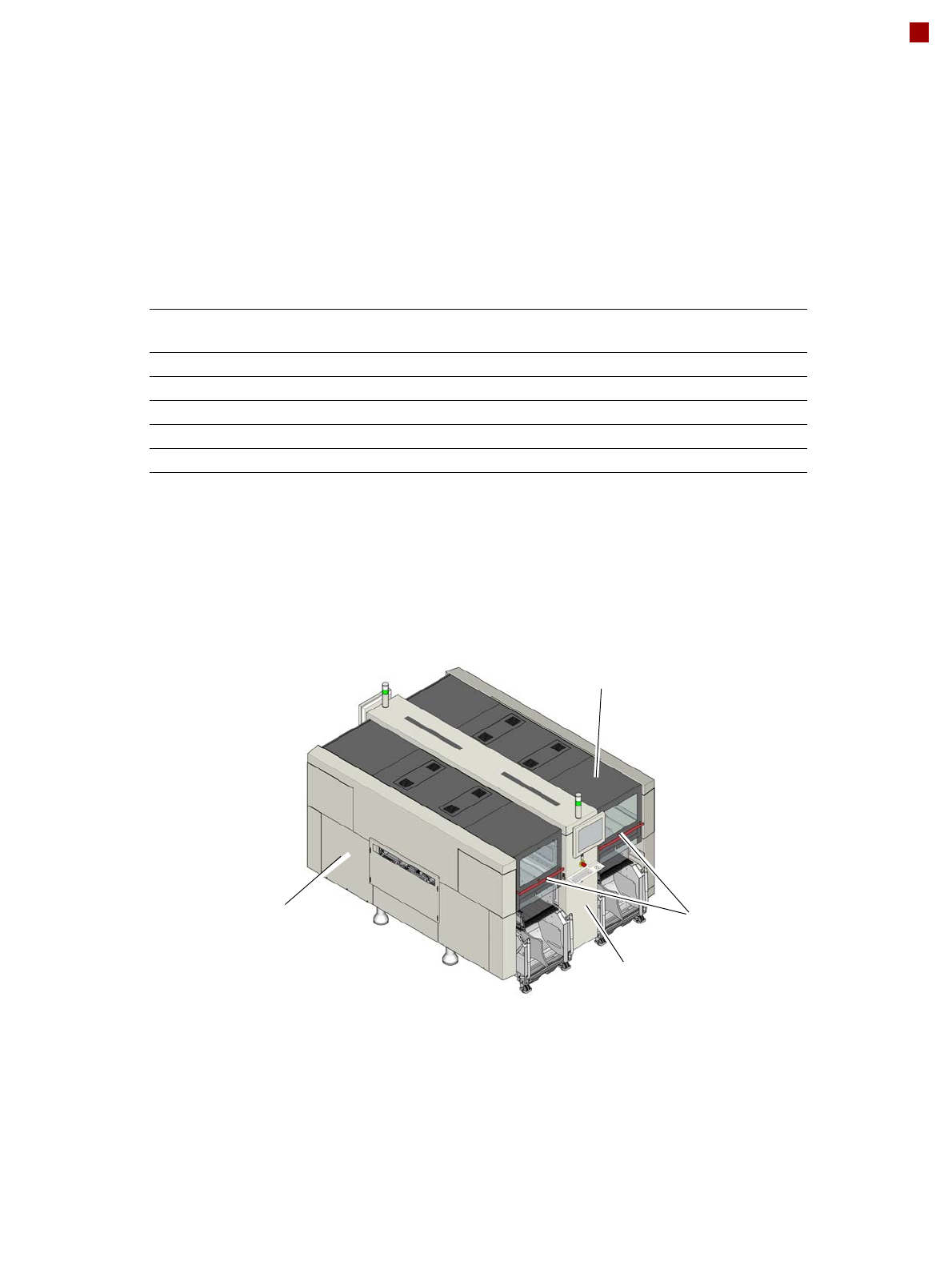

Overview of technical data
Maximum values
Placement performance
Theoretical value 135,500 comp./h
Component range 03015 mm - 6 mm x 6 mm
Placement accuracy ± 20 µm, (3
σ)
Feeding capacity (component trolley X) 160 feeder modules 8 mm X
Board format (length
a
x width)
a) Long board up to 650 mm available on request.
450mm x 560mm
Camera 6 illumination levels
Machine protection:
Telegray (RAL 7047)
Machine colors
Covers: Telegray
(RAL 7047)
Covers: Pearl dark gray
(RAL 9023 )
Handles: Ruby red
(RAL 3003)
6
SIPLACE X4 S micron / X4i S micron
Machine description
Intelligent placement solu-
tions for maximum stan-
dards
Maximum flexibility, top per-
formance or placement qual-
ity: the SIPLACE X4 S
micron / X4i S micron has
state-of-the-art technology to
master any challenge arising
in SMT production. It offers
all the innovations and fea-
tures to ensure efficient elec-
tronics production today and
in the future, and provides
previously unavailable ways
to increase both efficiency
and productivity.
Maximum accuracy
For enhanced accuracy, the
SIPLACE X4 S micron / X4i
S micron is fitted with high-
resolution scales on the main
axes and the C&P20 M head.
Maximum placement accu-
racy for every need
The compact design of the
SIPLACE X4 S micron / X4i S
micron forms the ideal basis
for new, future-oriented pro-
duction concepts which keep
pace with dynamically devel-
oping customer require-
ments, without the need for
time-consuming conver-
sions as in traditional SMT
production lines.
There are two different vari-
ants available.
• SIPLACE X4 S micron
• SIPLACE X4i S micron
The numbers in the type
name indicate the number of
gantries used. Each gantry
has one placement head.
The SIPLACE X-Series cov-
ers the entire range of com-
mon components with only
two placement heads.
The ideal addition to the high
speed SIPLACE SpeedStar
is the SIPLACE Multistar
placement head.
The user benefits from differ-
ent PCB conveyor variants:
The single conveyor and
the flexible dual conveyor.
7

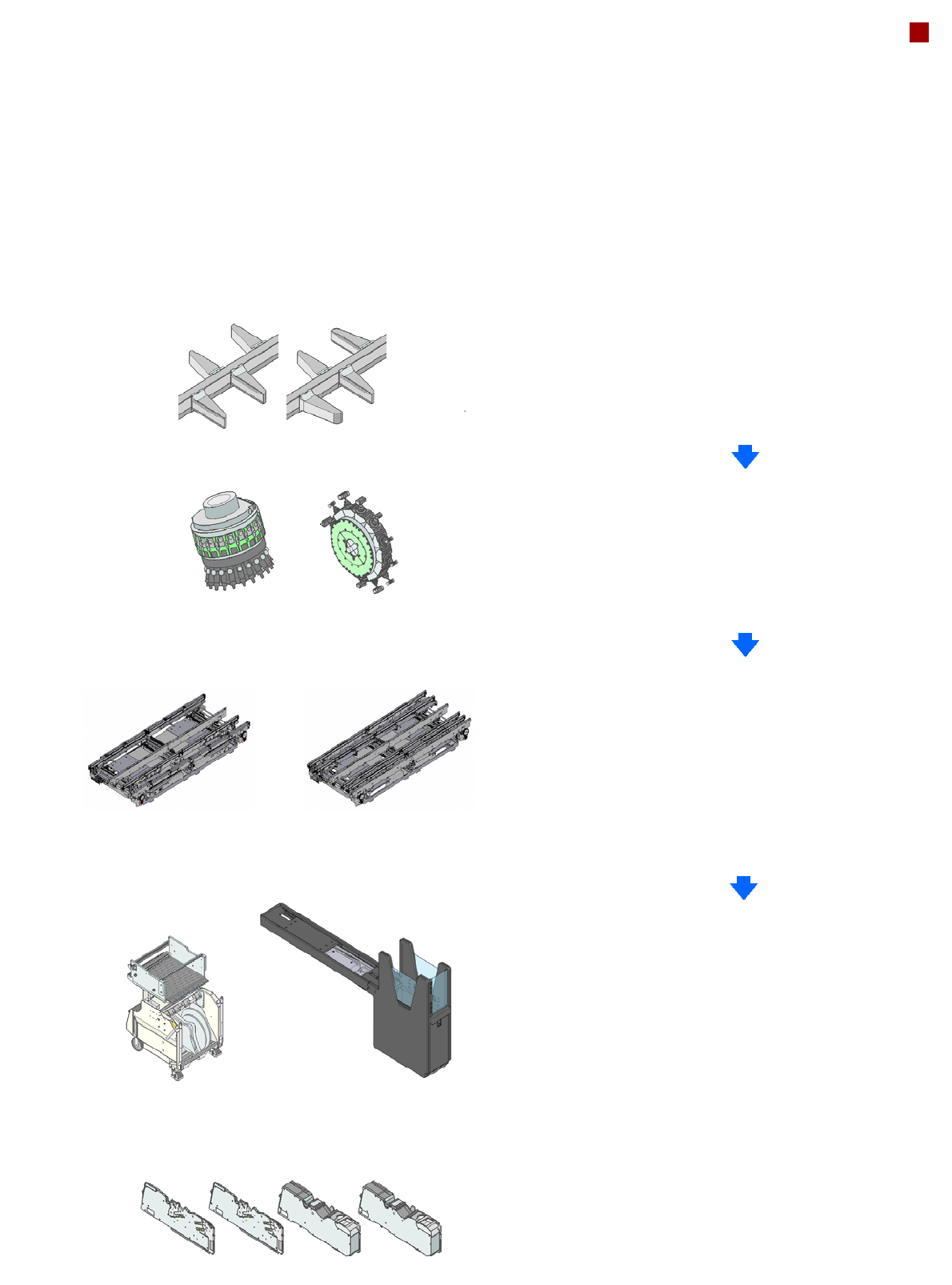

Modular machine concept
Overview
Placement machine without heads and compo-
nent trolleys
X4 S micron
X4i S micron
Selection of placement heads
SpeedStar (C&P20 M)
MultiStar (CPP)
Selection of conveyor
Single conveyor
Flexible dual conveyor
Selection of component infeed
Component trolley
JTF-S/JTF-M
Selection of feeder modules
X tape feeder modules
Linear Dipping Unit X
Label presenter
Reject conveyor
