Siplace productivity lift single conveyor (base: 00116310-03) Page 5 / 8 18.11.2021
Siplace productivity lift single conveyor (base: 00116310-03)
Page 4 / 8 18.11.2021
Siplace productivity lift single conveyor (base: 00116310-03)
Page 5 / 8 18.11.2021
Siplace productivity lift single conveyor (base: 00116310-03)
Page 6 / 8 18.11.2021

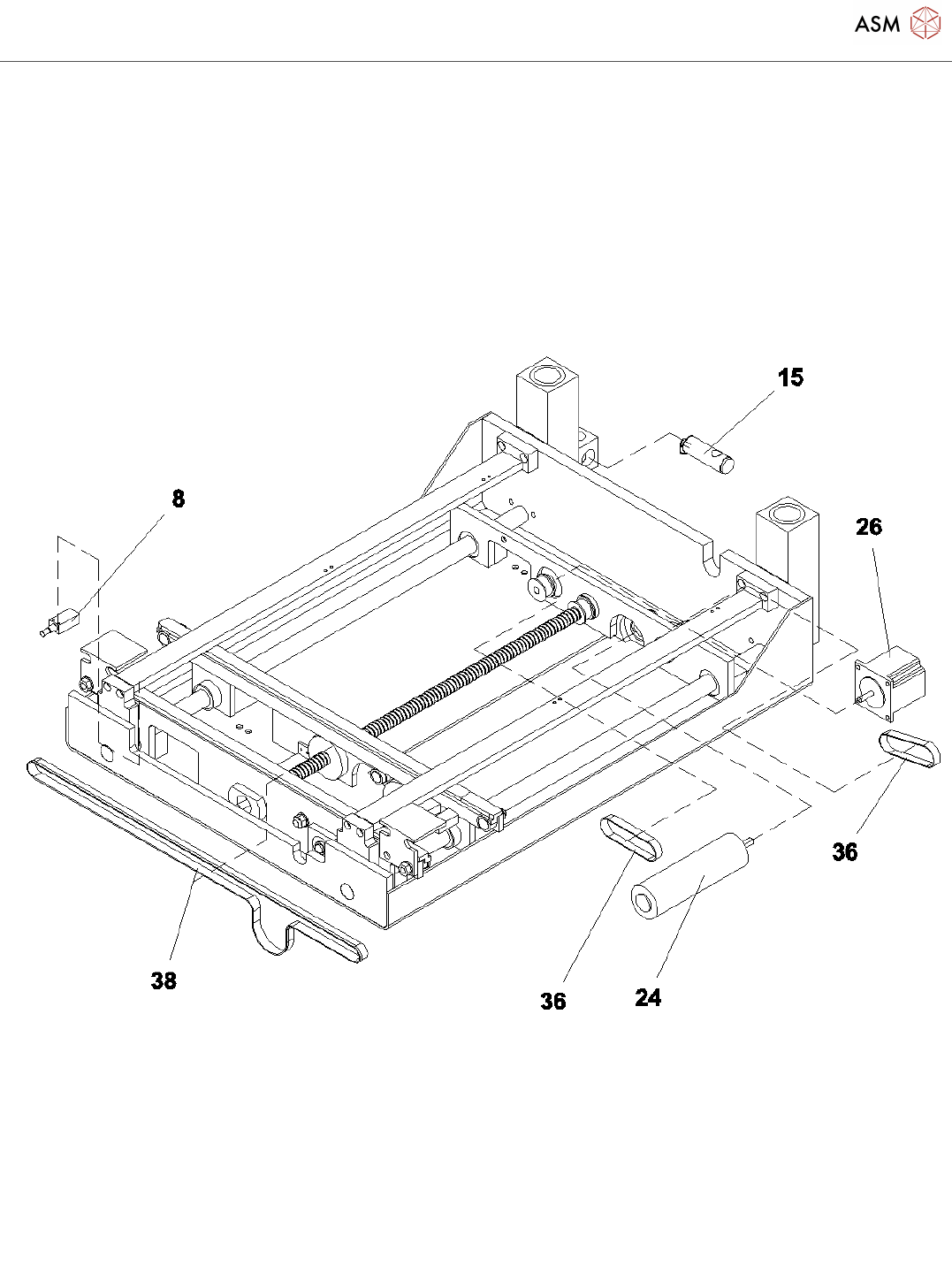

Pos. Item no. Description Part marking
00116326-01 SINGLE CONVEYOR (BASE:
00116310-03)
1 00347448-04 INTERFACE MODULE AMI 3.0 SPARE PART
2 00347449-01 RELAIS, PLUG-/PRINT- 5A SPARE
3 00347461-01 POWER PACK 15A 24V DC, PSU
500L24
Spare Part
4 00347475-02 OPTO-ELECTRONIC FOR STEP
MOTOR DKO, 24V
5 00347478-01 PROXIMITY SWITCH IQ10-03BPS-
KT1
Spare Part
6 00347478-01 PROXIMITY SWITCH IQ10-03BPS-
KT1
Spare Part
7 00347490-01 REFLECTION-LIGHT-SENSOR
WT4-2P330
Spare Part
8 00347490-01 REFLECTION-LIGHT-SENSOR
WT4-2P330
Spare Part
9 00348193-02 CONTROL UNIT CAN/MM101 SPARE PART
10 00348195-02 CONTROL PANEL CAN/P50 SPARE
11 00348197-01 PNEUMATIC CYL. UNIT
DNC-40-125-PPV-A
12 00348198-01 SOLENOID VALVE UNIT MYH-5/3G-
M5-L-LED
13 00349121-02 MICRO STEP POWER OUTPUT
K480216A-24
SPARE PART
14 00348192-02 SUPPLEMENT-CONTROL-MODUL,
CAN/MS1
Spare Part
15 00349541-01 CLAMPING CARTRIDGE UNIT
KP-12-600
SPARE PART
16 00352706-01 LAMP 36V 5W PRODUCTIVITY LIFT WEAR PART
17 00352857-01 DC-MOTOR WL 1 BG 62X60 SG80 Spare Part
18 00352858-01 MOTOR CONTROLLER SCA-B4-70-10 Spare Part
19 00352859-01 OPTO ELECTRONIC MAXI-MW-8-30 Spare Part
20 00352860-02 SAFETY RELAY SNE 4004 K-A SPARE
21 00352881-02 SAFETY RELAY SNO 4003 K-A SPARE
22 00352882-01 VALVE MYH-3-M5-L-LED SPARE
23 00352883-01 TOOTHED BELT 2000-5M-25 HDT Wear Part
24 00353549-01 DC-MOTOR GL42X40,PLG42K
32:1SCREENED SPL
SPARE PART
25 00353549-01 DC-MOTOR GL42X40,PLG42K
32:1SCREENED SPL
SPARE PART
