- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 401-27910 OCC_ASSY 4 2 401-27911 OCC_LENS_ASSY (1) 3 401-27914 CAMERA LENS ASSY (1) 4 401-27905 OCC_LENS_BRACKET (1) 5 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (2) 6 SM…
- -

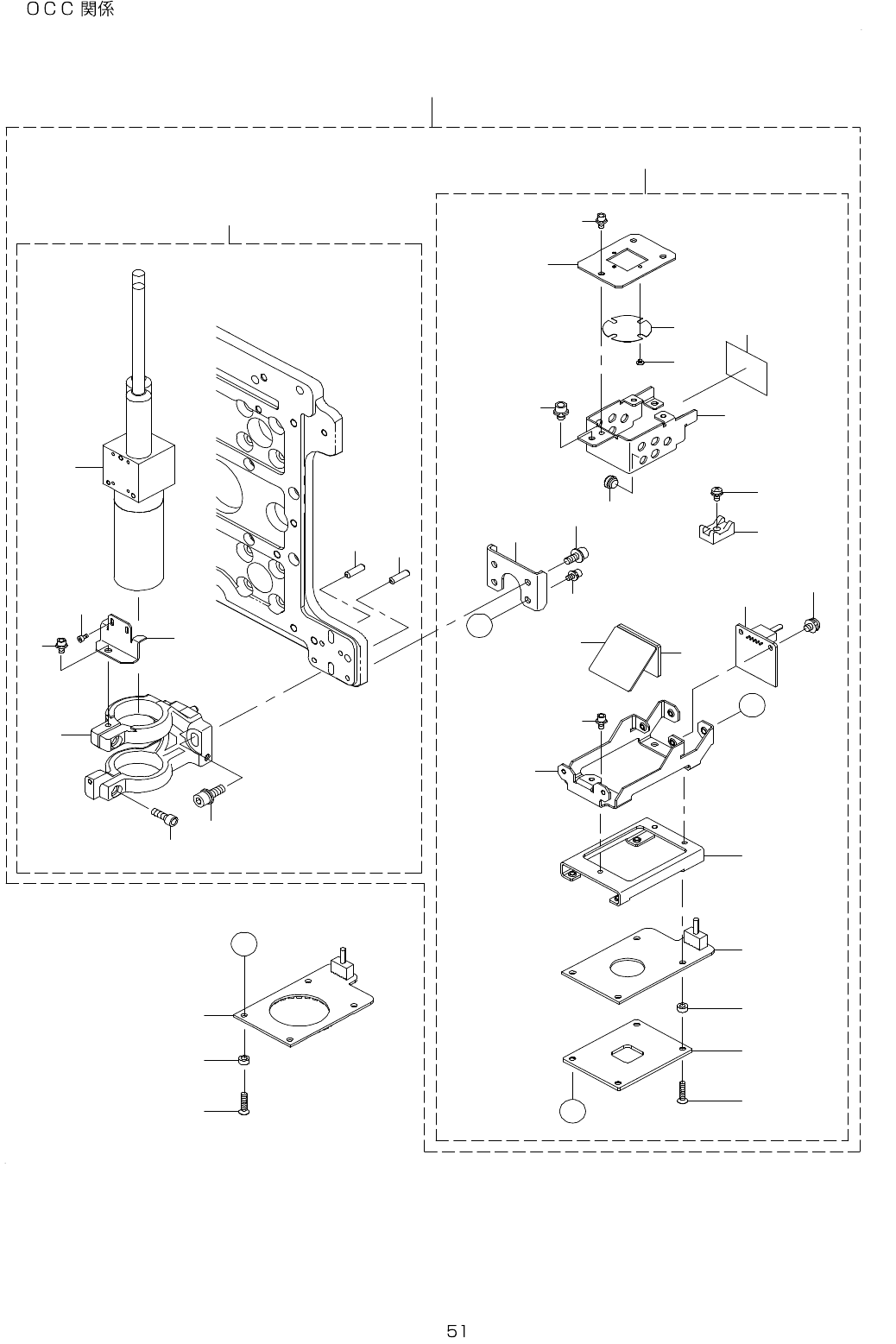

26.OCC COMPONENTS
3 5
6
1 9
2 0
2 1
1 6
3 2
3 1
3 0
2 7
1 4
2 6
2 4
2 5
3 4
1 2
1 3
2 8
4
8
3
A
5
A
5
7
9
1 0
2
1 5
1 7
2 3
2 2
2 9
3 3
1 1
3 6
3 8
3 7
1 8
B
B
1
- -

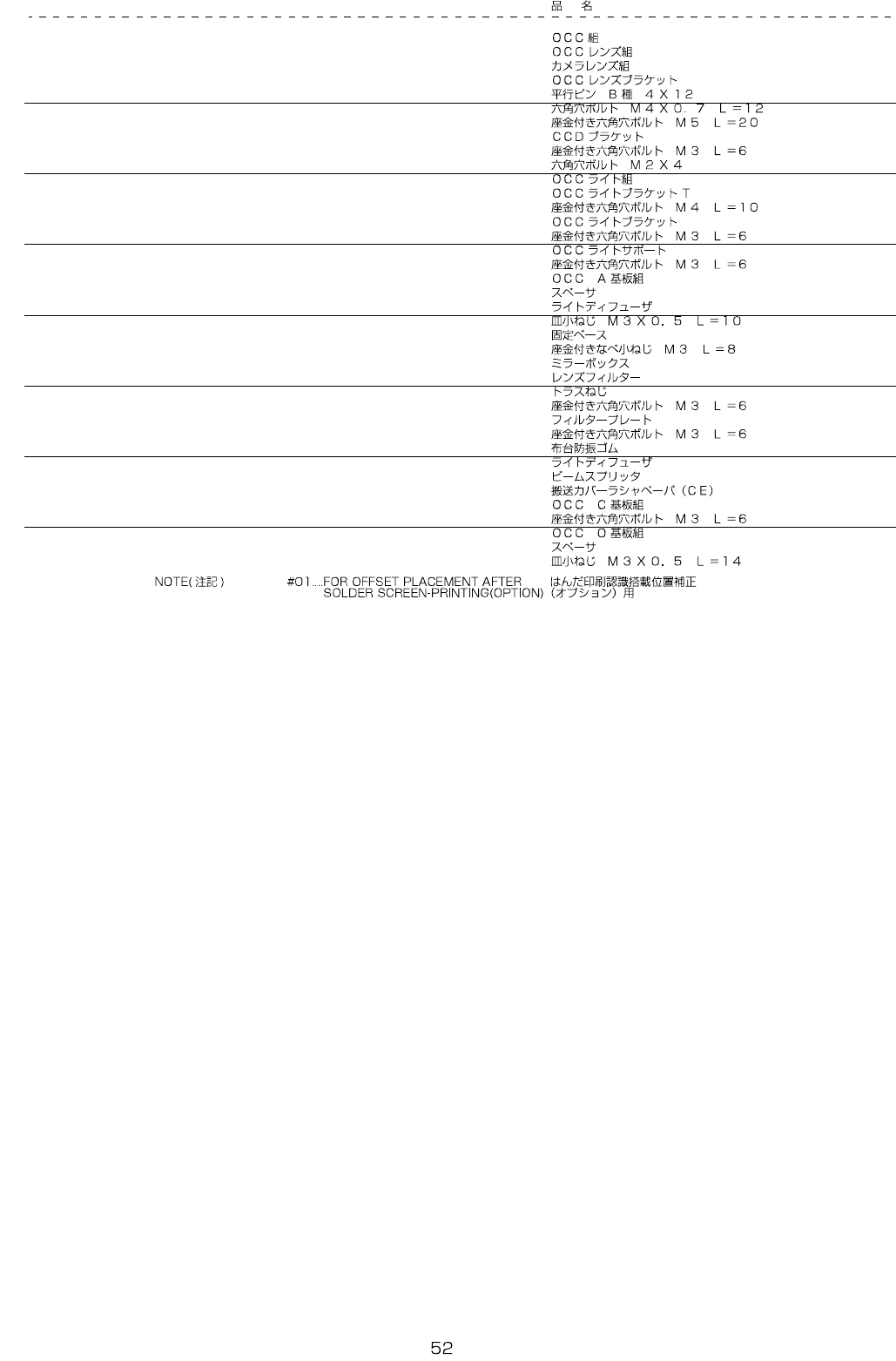

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-27910 OCC_ASSY 4
2 401-27911 OCC_LENS_ASSY (1)
3 401-27914 CAMERA LENS ASSY (1)
4 401-27905 OCC_LENS_BRACKET (1)
5 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (2)
6 SM-6041202-TN SCREW M4X0.7 L=12 (2)
7 SL-6052092-TN SCREW M5 L=20 (2)
8 401-27901 CCD_BRACKET (1)
9 SL-6030692-TN SCREW M3 L=6 (1)
10 SM-6020402-TN SCREW M2X4 (2)
11 401-27912 OCC_LIGHT_ASSY (1)
12 401-27896 OCC_LIGHT_BRKT_T (1)
13 SL-6041092-TN SCREW M4 L=10 (2)
14 401-27902 OCC_LIGHT_BRACKET (1)
15 SL-6030692-TN SCREW M3 L=6 (2)
16 401-27897 OCC_LIGHT_SUPPORT (1)
17 SL-6030692-TN SCREW M3 L=6 (3)
18 401-28878 OCC A PCB ASM (1)
19 HX-0033500-0G SPACER (4)
20 401-27900 LIGHT_DIFFUSER (1)
21 SM-1031001-SC SCREW M3X0.5 L=10 (4)
22 HX-0029400-00 FIXED BASE (1)
23 SL-4030891-SC SCREW M3 L=8 (1)
24 401-27898 MIRROR BOX (1)
25 400-43896 LENS FILTER (1)
26 SM-0020201-SC SCREW M2 L=2 (3)
27 SL-6030692-TN SCREW M3 L=6 (3)
28 401-27899 FILTER_PLATE (1)
29 SL-6030692-TN SCREW M3 L=6 (3)
30 118-04606 RUBBER PLUG (10)
31 400-14040 LIGHT DIFFUSER (1)
32 400-14037 BEAM SPRITTER (1)
33 E1143-721-000 WOOLEN CLOTH PAPER (1)
34 401-28879 OCC C PCB ASM (1)
35 SL-6030692-TN SCREW M3 L=6 (2)
36
#01
401-28880 OCC O PCB ASM 4
37
#01
HX-0033500-0G SPACER 16
38
#01
SM-1031401-SC SCREW M3X0.5 L=14 16
- -

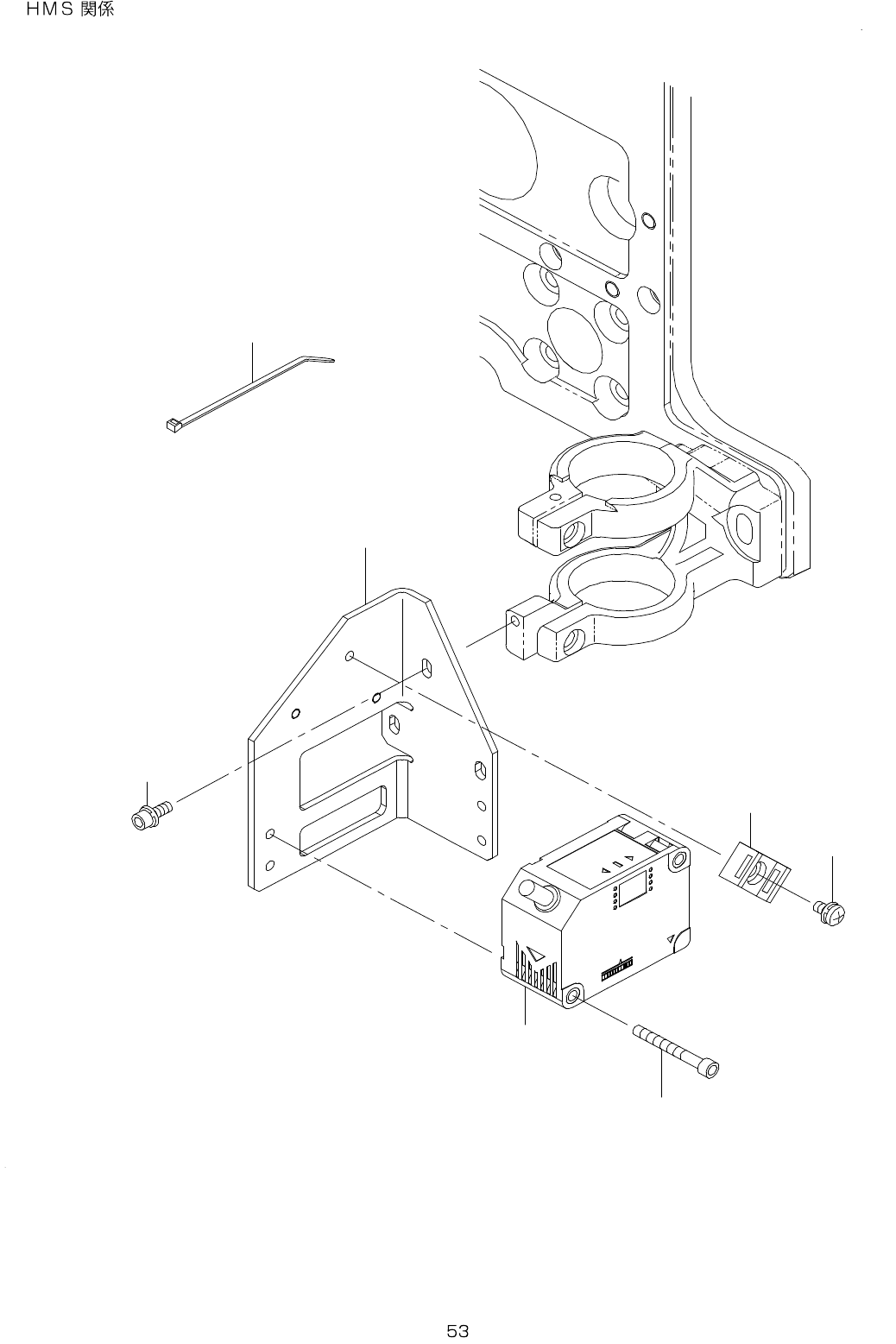

27.HMS COMPONENTS
6
2
1
3
4
5
7
