- - 48. FCS C OMPON EN TS 1 9 1 7 6 1 5 1 8 7 9 2 6 1 4 1 6 1 4 1 5 1 3 2 3 2 5 2 4 1 1 2 3 4 1 5 8 1 0 2 0 2 2 2 7 2 8 2 9 3 0 3 4 3 5 2 1 3 1 3 3 1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-29626 RS232C BOARD 1
2 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
3 401-29949 IS BODY COMMON ASM(RX-6) 1
4 400-73032 4 PORT MPC (1)
5 SL-4030891-SC SCREW M3 L=8 (4)
6 401-28739 MPC_BRACKET 1
7 SL-4030891-SC SCREW M3 L=8 4
8 400-73033 SWITCHING HUB 1
9 SL-4040891-SC SCREW M4X8 4
10 400-97737 ETF_POSITION_BARCODE_SEAL 2
- -

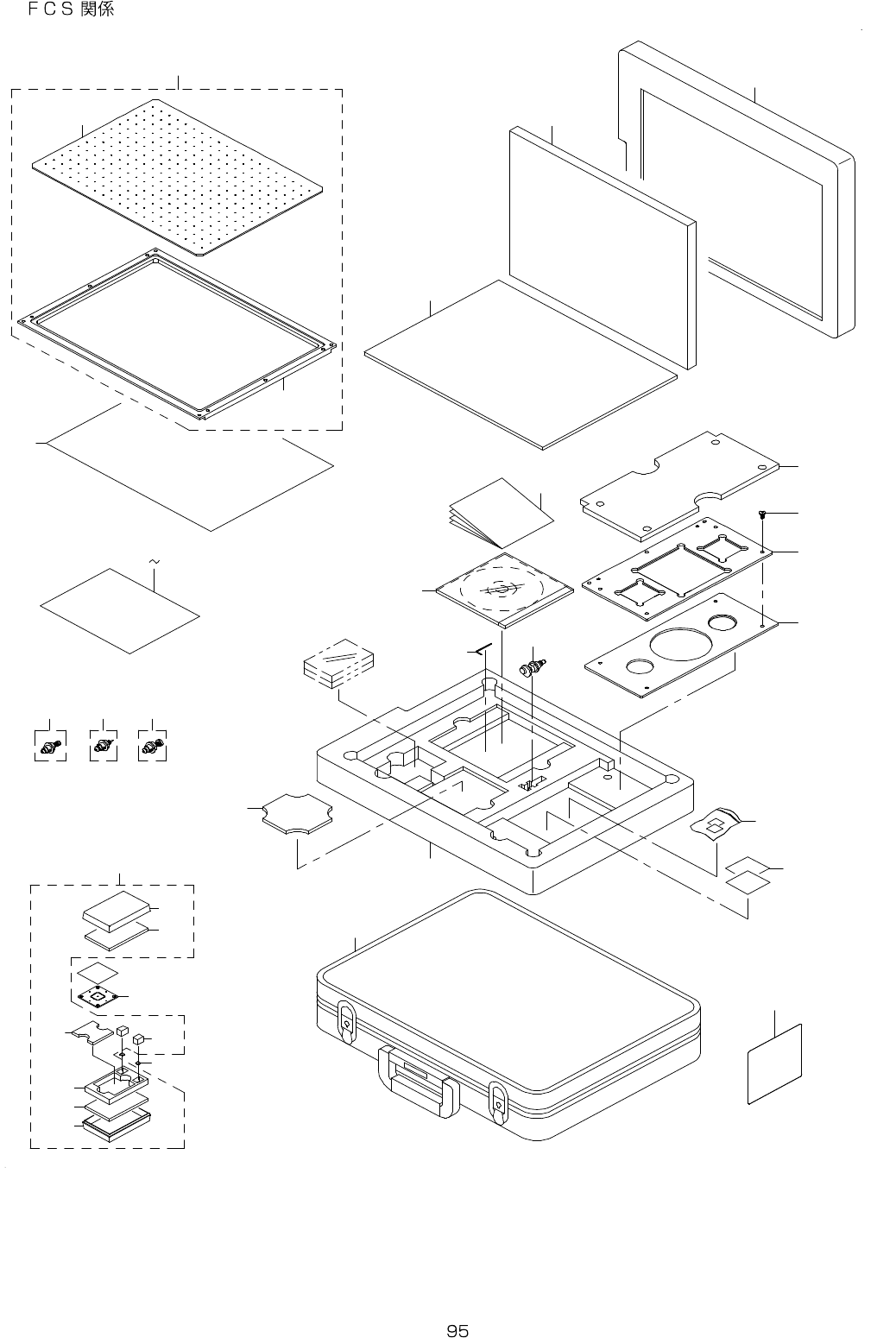

48.FCS COMPONENTS
1 9
1 7
6
1 5
1 8
7
9
2 6
1 4
1 6
1 4
1 5
1 3
2 3
2 5
2 4
1 1
2
3
4
1
5
8
1 0
2 0
2 2
2 7
2 8
2 9
3 0
3 4 3 5
2 1
3 1 3 3
1 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28130 FCS_GLASS_PWB_ASM_RX-6 1
2 401-28131 GLASS_PLATE_FCS (1)
3 401-28132 GLASS_PLATE_FRAME_B (1)
4 400-27196 DRAWING PAPER 1
5 401-28142 JIG_TRAY_B 1
6 400-20304 FCS JIG CHIP B 2
7 400-27147 SILICON SHEET 2
8 401-28143 JIG_TRAY_U 1
9 401-32592 FCS CARRYING CASE 1
10 401-32593 INNER_PACKAGE_C 1
11 400-66811 INNER PACKAGE B 1
12 401-28154 LOW_HEAD_SCREW_M4 7
13 400-27316 FCS JIF CHIP CASE 1
14 400-27312 FCS JIG CHIP HOLDER (1)
15 400-27313 INNER A (2)
16 400-27314 INNER B (1)
17 400-27315 INNER C (2)
18 400-27410 INNER D (1)
19 400-11453 CAL PIECE G 1
20 401-28152 JIG_NOZZLE_LNC120 1
21 401-11970 LAMINATING_SEAL 1
22 401-28134 ADHESIVE_SHEET 48
23 400-01344 NOZZLE ASSEMBLY 506 1
24 400-66812 CUSHION A 1
25 400-66813 CUSHION B 1
26 400-27235 TRAYSEE 1
27 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
28 401-32594 CUSHION_C 1
29 401-33186 ENTRY_CD_ASM 1
30 401-32599 CUSHION_D 1
31
#01
401-33122 FCS INSTRUCTION MANUAL(RX-6_ST) 1
32
#02
401-33123 FCS INSTRUCTION MANUAL(RX-6_EN) 1
33
#03
401-33124 FCS INSTRUCTION MANUAL(RX-6_CH) 1
34 400-01339 NOZZLE ASSEMBLY 501 12
35 400-44239 NOZZLE ASSEMBLY 508C 2
