60.E REPLACING OVERALL CHANGER TRUCK EF COMPONENTS(3)
9
9
1 9
2 1
1 7
1 5
1 7
1 5
8
3 1
1 2
1 4
2 3
3 2
2 0
2 0
2 0
1 6
1 6
1 9
1 8
1 8
1 8
1 8
1 8
1 7
1 5
1 7
1 5
1 7
1 7
1 7
1 7
1 8
1 3
1 8
1 8
1 9
2 0
2 0
2 2
1 3
3 1
2 7
2 7
1 0
1 1
2 5
2 6
2 4
2 4
2 8
2 9
3 0
2 7
2 7
1 5
1 5
1 5
1 5
4 0
4 3
4 3
4 4
4 4
4 1
4 2
3 9
4
3
5
2
7
1
6
7
2 8
2 9
2
5 2
4 5
2 0
3 3
3 4
3 3
3 4
3 5
3 6
3 5
3 6
4 8
4 9
4 9
4 6
4 7
6 1
5 4
5 5
5 6
5 7
5 8
5 9
6 0
5 3
5 0
5 1
3 8
A
A
6 2
2 7
3 7
3 2
3 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28077 TAPE_GUIDE_ASM(TROLLEY) 1
2 SM-3041052-TN SCREW M4 L=10 (4)
3 400-94372 TAPE GUIDE BR C (1)
4 400-93594 ETF POSITION LABEL(40) (1)
5 401-10310 TAPE_GUIDE_BR_L (1)
6 401-10311 TAPE_GUIDE_BR_R (1)
7 SL-6061092-TN SCREW M6 L=10 (4)
8 401-28078 REEL_HOLDER_ASM(TROLLEY) 1
9 401-10291 REEL FIXING BAR40 (2)
10 401-28016 TRASH_BOX_HOLDER_L (1)
11 401-28017 TRASH_BOX_HOLDER_R (1)
12 SM-1031001-SC SCREW M3X0.5 L=10 (20)
13 401-10285 TAPE HOLDER PL (2)
14 E1612-706-C00 REEL SH (20)
15 SM-0030601-SC SCREW M3X6 (8)
16 400-94863 TAPE SUPPORT (2)
17 400-84674 REEL SUPPORT ANGLE (8)
18 SL-4030691-SC SCREW M3 L=6 (16)
19 400-94862 TAPE HOLDER BR 1 (3)
20 SL-4041091-SC SCREW M4 L=10 (20)
21 400-94864 TAPE HOLDER HANDLE (1)
22 SL-6051092-TN SCREW M5 L=10 (2)
23 400-84676 SEPARATION PLATE (20)
24 401-28045 TRASH_BOX_HOLDER_S (2)
25 401-34168 CASTER_BRACKET_L_S (1)
26 401-34169 CASTER_BRACKET_R_S (1)
27 SM-6040602-TN SCREW (12)
28 400-98844 ADJUSTER_FOOT (2)
29 NM-6080001-SC NUT M8X1.25 TYPE1 (2)
30 401-19292 ETF_POSITION_LABEL(40)_2 (2)
31 400-94860 TH CASTER (2)
32 401-28018 TH_LOCK_PLATE (2)
33 400-49671 COVER CUSHION (2)
34 SM-4030601-SC SCREW M3X0.5 L=6 (2)
35 401-10284 TH_ROLLER (2)
36 NM-6060001-SC NUT M6X1 TYPE1 (2)
37 401-07819 VCS_AA_CLOTHES_PAPER (0.5)
38 401-28076 TROLLEY_SAFETY_COVER_ASM 1
39 401-28011 TROLLEY_SAFETY_COVER_R (1)
40 401-28101 TROLLEY_SAFETY_COVER_L (1)
41 401-10309 TS_COVER_SD (1)
42 SL-6061092-TN SCREW M6 L=10 (1)
43 400-94723 TOROLLEY_COV_BR (1)
44 SL-6061092-TN SCREW M6 L=10 (2)
45 SM-3040652-TN SCREW M4 L=6 (1)
46 HX-0033900-0F SPACER (2)
47 SM-3081252-TN SCREW M8 L=12 (1)
48 401-28012 CONNECTOR_A_COVER (1)
49 SM-3040652-TN SCREW M4 L=6 (5)
50 401-28019 TROLLEY_SAFETY_COVER_R_B (1)
51 SL-6040892-TN SCREW M4 L=8 (2)
52 SL-4040891-SC SCREW M4X8 (2)
53 401-28071 E_CONNECTOR_A_ASM 1
54 401-28013 CONNECTOR_A_BR_E (1)
55 HX-0029400-00 FIXED BASE (1)
56 SM-4040601-SC SCREW M4X0.7 L=6 (1)
57 SL-6061292-TN SCREW M6 L=12 (2)
58 400-28833 COLLAR (1)
59 SM-6061402-TN SCREW (1)
60 HX-0031400-0B SPIRAL TUBE (0.7)
61 SM-6030802-TN SCREW (2)
62 401-34167 TRASH_BOX_ASM_S 1
- -

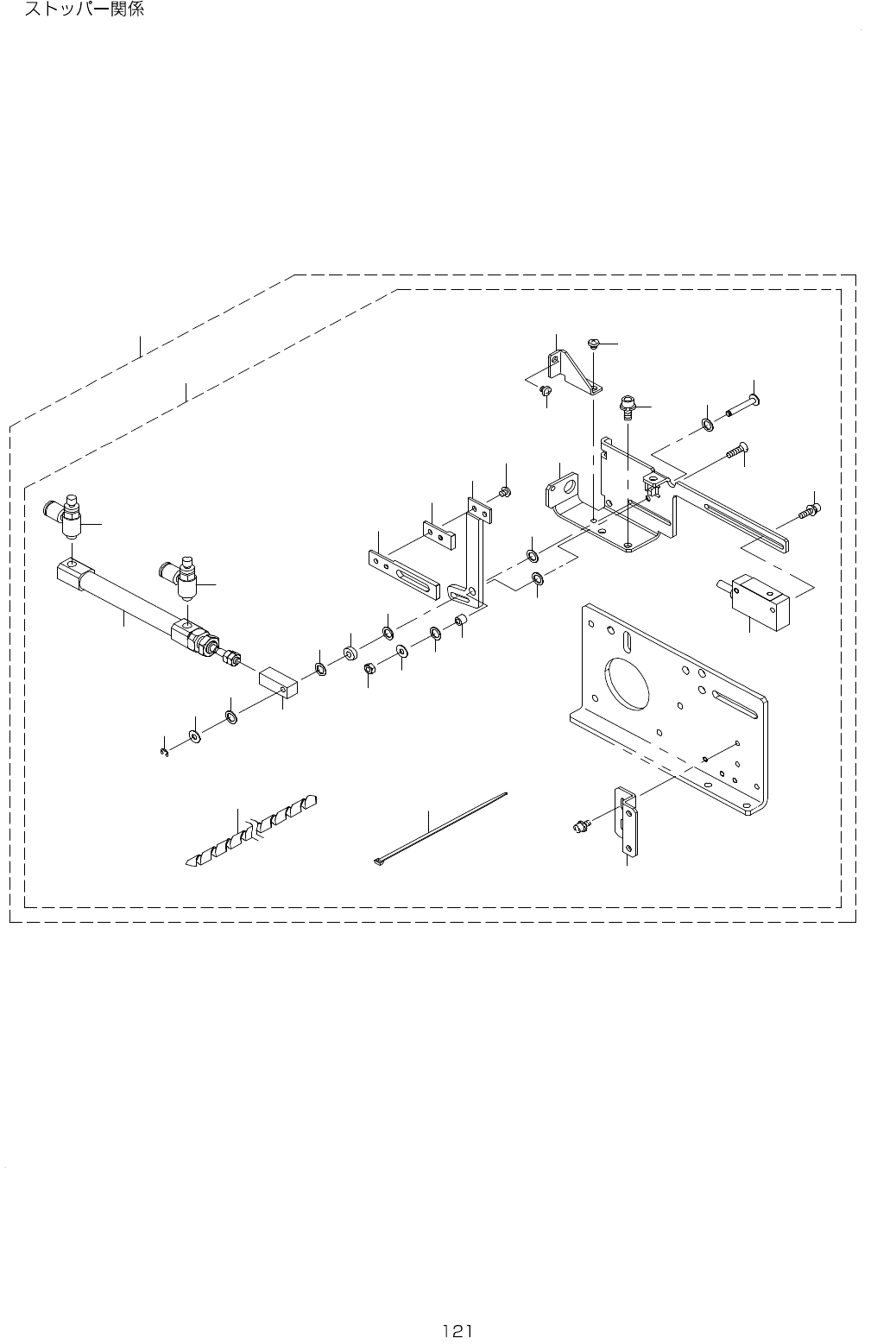

61.STOPPER COMPONENTS
