- - 62 .IF S - NX (VE R6.0 0_CA N) CO M PONE NTS 6 7 8 5 2 2 4 3 4 4 3 4 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-65223 STOPPER_OP_ASM 1
2 401-65224 STOPPER_UPPER_L_ASM (1)
3 401-55824 STOPPER_BU_PIN_SENSOR_BRACKET (1)
4 401-62653 STOPPER_BRACKET_RIB_L (1)
5 401-56968 STOPPER SENSOR ASM (1)
6 SM-1031201-SC SCREW M3X0.5 L=12 (1)
7 401-56583 HOLD_PLATE (1)
8 SL-6041092-TN SCREW M4 L=10 (2)
9 401-56852 STOPPER_L (1)
10 401-55822 STOPPER_CHIP_ST (1)
11 401-55823 STOPPER_CHIP_XL (1)
12 SM-5030355-SN SCREW (4)
13 401-62655 STOPPER_BRACKET_L (1)
14 401-56586 STOPPER_PIN (1)
15 401-56584 STOPPER_COLLOR (1)
16 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
17 WP-0330516-SC WASHER 3.3X8X0.5 (2)
18 SL-6031092-TN SCREW M3 L=10 (2)
19 401-62652 STOPPER_COLLAR_U (1)
20 L175E-421-000 STOPPER CREVICE (1)
21 E2039-721-000 WASHER A (7)
22 RE-0200000-K0 E-RING 2 (1)
23 401-56585 AIR_CYRINDER (1)
24 PC-0105080-00 SPEED CONTROLLER (2)
25 HX-0031400-00 SPIRAL TUBE (0.4)
26 EA-9500B02-00 CABLE BAND (10)
- -

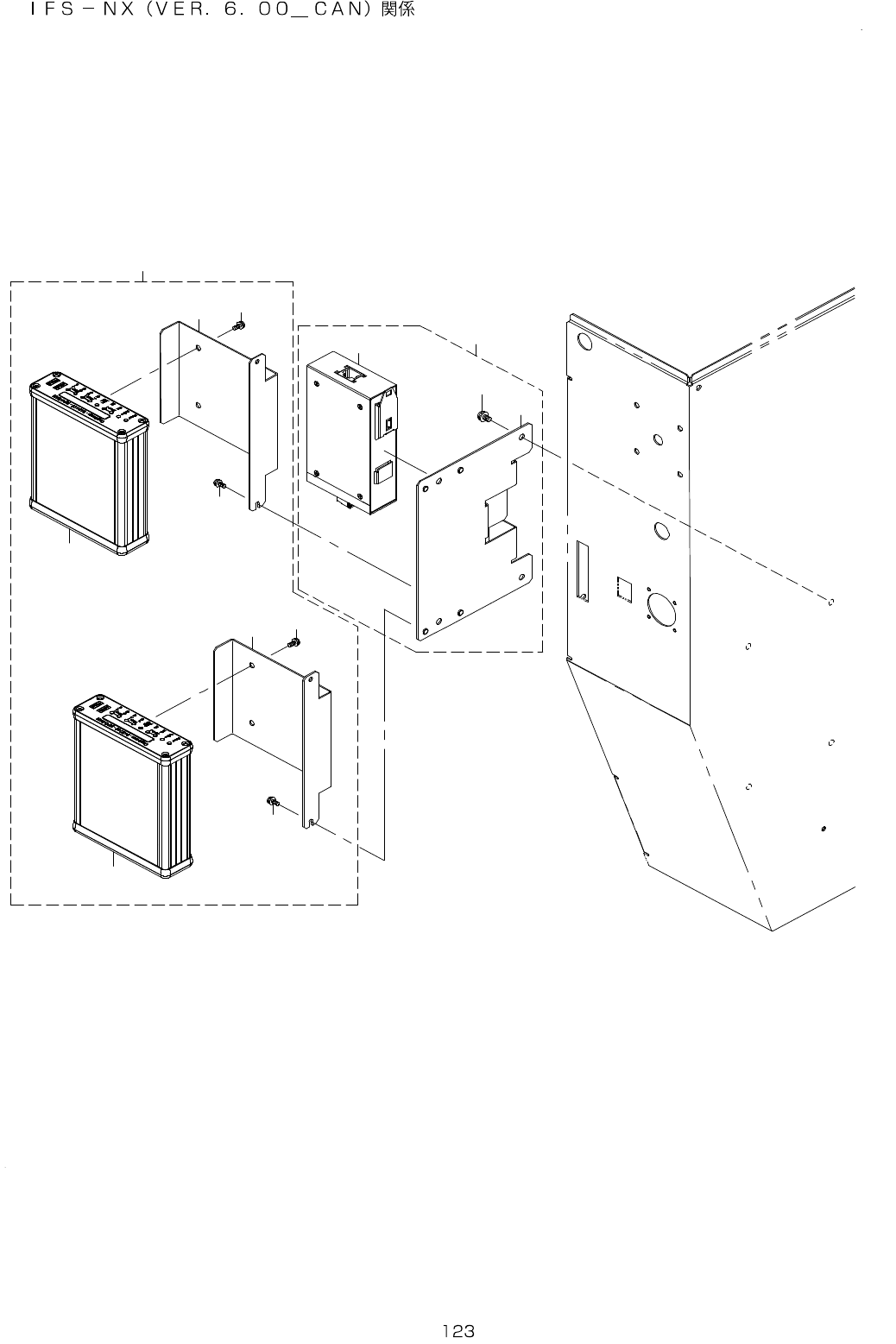

62.IFS-NX(VER6.00_CAN) COMPONENTS
6
7
8
5
2
2
4
3
4
4
3
4
1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-75927 IFS-NX_CAN_OP_BODY_COMMON_ASM(RX-6) 1
2 401-69048 MPC-CAN (2)
3 401-75609 MPC_BR (2)
4 SL-4030891-SC SCREW M3 L=8 (12)
5 401-75926 HUB_BOX_ASSEMBLY 1
6 401-75608 MPC_BASE (1)
7 SL-4040891-SC SCREW M4X8 (4)
8 400-73033 SWITCHING HUB (1)
