11.COVER COMPONENTS(4)(AFTER M/C REV.C)
3 8
6
4
5
1 0
8
9
A
A
1 1
1 2
1 4
1 7
1 8
1 9
2 0
7
2 1
2 3
2 4
2 2
2 7
2 6
2 5
2 8
2 9
3 1
3 0
1 6
1 3
4 4
4 3
4 3
4 1
4 2
5 0
4 9
3 9
4 0
4 5
4 6
4 7
4 8
2
4 9
4 2
5 0
4 8
4 0
3 9
4 5
4 7
1
4 6
3 6
3 4
1 7
3 5
1 5
3 3
7 2
7 4
5 9
6 0
6 2
6 4
6 5
6 5
6 6
6 6
6 5
6 6
6 6
6 6
6 5
6 5
6 5
6 7
6 5
6 6
6 5
6 3
6 6
6 9
7 0
7 1
5 8
5 7
7 3
7 5
7 6
7 7
8 5
8 5
8 5
8 5
8 5
7 8
7 9
8 5
8 5
8 0
8 1
8 2
8 3
8 4
9 2
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 7
8 7
8 8
8 9
9 0
9 1
9 3
9 4
9 5
9 6
5 3
9 7
5 2
9 8
9 95 3
9 7
9 9
5 2
1 0 0
5 4
5 5
6 1
8 6
B
B
C
C
8 9
5 6
D
D
E
E
6 8
3
5 1
3 7
3 2
- -

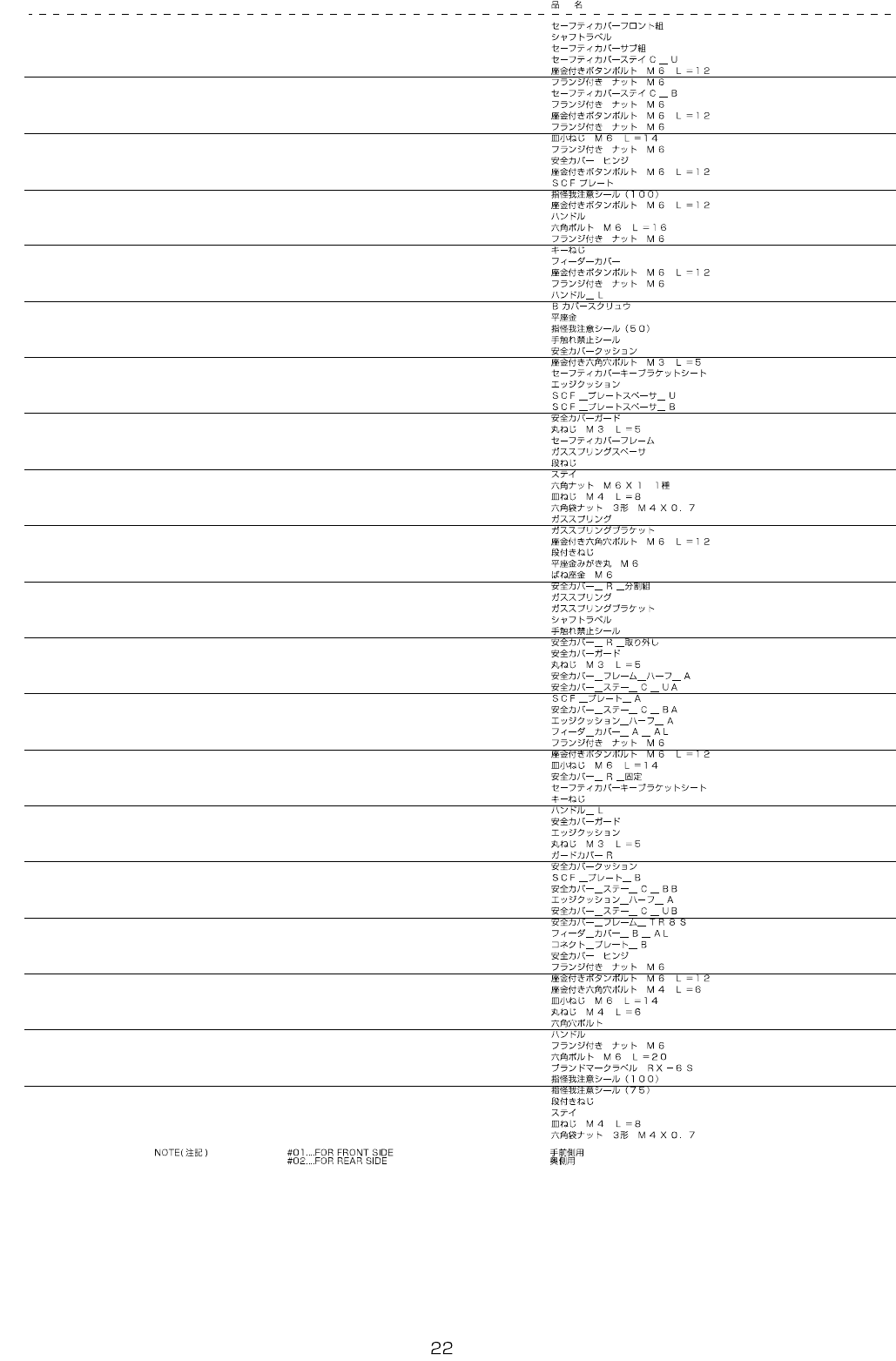

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
401-28812 SAFETY_CO VER_F_ASM 1
2 E3065-729-000 SHAFT LABEL (1)
3 401-28785 SAFETY_COVER_SUB_ASM (1)
4 401-28775 SAFETY_COVER_STAY_C_U (1)
5 SL-3061232-TN SCREW M6 L=12 (10)
6 NM-3060810-SF FLANGE NUT M6 (10)
7 401-28776 SAFETY_COVER_STAY_C_B (1)
8 NM-3060810-SF FLANGE NUT M6 (2)
9 SL-3061232-TN SCREW M6 L=12 (2)
10 NM -3060810-SF FLANGE NUT M6 (2)
11 SM-1061401-SE SCREW M6 L=14 (2)
12 NM -3060810-SF FLANGE NUT M6 (2)
13 E1318-715-000 SAFETY COVER HINGE (2)
14 SL-3061232-TN SCREW M6 L=12 (8)
15 401-28779 SCF_PLATE (1)
16 CM -3002000-06 FINGER INJURY CAUTION LABEL (100) (1)
17 SL-3061232-TN SCREW M6 L=12 (11)
18 401-22998 HANDLE (1)
19 SM-9061613-SC SCREW M6 L=16 ( 2)
20 NM -3060810-SF FLANGE NUT M6 (4)
21 400-80490 KEY_SCREW (2)
22 401-28777 FEEDER_COVER (1)
23 SL-3061232-TN SCREW M6 L=12 (6)
24 NM -3060810-SF FLANGE NUT M6 (6)
25 401-13967 HANDLE_L (1)
26 400-81751 B_COVER_SCREW (2)
27 WP-0431005-SP PLAIN WASHER (2)
28 CM -3002000-04 FINGER INJURY CAUTION LABEL (50) (1)
29 E3858-715-000 SEAL (1)
30 401-32490 SC_CUSHION (1)
31 SL-6030592-TN SCREW M3 L=5 (2)
32 401-34197 SAFETY_COVER_KEY_BRACKET_SHEET (1)
33 401-28791 EDGE_CUSHION (1)
34 401-28796 SCF_PLATE_SPACER_U (1)
35 401-28797 SCF_PLATE_SPACER_B (1)
36 401-32488 SC_GUARD (2)
37 SM-3030552-TN SCREW M3 L=5 (2)
38 401-28771 SAFETY_COVER_FRAME (1)
39 401-28782 GAS_SPRING_SPACER (2)
40 401-28783 STEP_SCREW ( 2)
41 400-77321 STAY ( 1)
42 NM -6060001-SC NUT M6X1 TYPE1 (2)
43 SM-1040801-SN SCREW M4X0.7 L=8 (4)
44 NM -7040032-SC HEXAGONAL CAP NUT 3 M4X0.7 (2)
45 401-22999 GAS_SPRING (2)
46 401-28778 GS_BRACKET (2)
47 SL-6061292-TN SCREW M6 L=12 (4)
48 400-38381 STEP SCREW (2)
49 WP-0641601-SC WASHER M6 (2)
50 WS-0610002-KN SPRING WASHER M6 (2)
51
#02
401-56117 SAFETY_CO VER_R_SEPARATE_ASM 1
52 401-22999 GAS_SPRING (2)
53 401-28778 GS_BRACKET (2)
54 E3065-729-000 SHAFT LABEL (1)
55 E3858-715-000 SEAL (1)
56 401-56118 SAFETY_COVER_R_REMOVAL (1)
57 401-32488 SC_GUARD (1)
58 SM-3030552-TN SCREW M3 L=5 (1)
59 401-54719 SAFETY_COVER_FRAME_HALF_A ( 1)
60 401-54717 SAFETY_COVER_STAY_C_UA ( 1)
61 401-54705 SCF_PLATE_A (1)
62 401-54706 SAFETY_COVER_STAY_C_BA (1)
63 401-54711 EDGE_CUSHION_HALF_A (1)
64 401-54741 FEEDER_COVER_A_AL (1)
65 NM -3060810-SF FLANGE NUT M6 (20)
66 SL-3061232-TN SCREW M6 L=12 (26)
67 SM-1061401-SE SCREW M6 L=14 (2)
68 401-56119 SAFETY_COVER_R_FIXED (1)
69 401-34197 SAFETY_COVER_KEY_BRACKET_SHEET (1)
70 400-80490 KEY_SCREW (2)
71 401-13967 HANDLE_L (1)
72 401-32488 SC_GUARD (1)
73 401-28791 EDGE_CUSHION (1)
74 SM-3030552-TN SCREW M3 L=5 (1)
75 401-28811 COVER_GUARD_R (1)
76 401-32490 SC_CUSHION (1)
77 401-54707 SCF_PLATE_B (1)
78 401-54708 SAFETY_COVER_STAY_C_BB (1)
79 401-54712 EDGE_CUSHION_HALF_B (1)
80 401-54718 SAFETY_COVER_STAY_C_UB ( 1)
81 401-54738 SAFETY_COVER_FRAME_TR8S (1)
82 401-54742 FEEDER_COVER_B_AL (1)
83 401-54745 CONNECT_PL ATE_B (1)
84 E1318-715-000 SAFETY COVER HINGE (2)
85 NM -3060810-SF FLANGE NUT M6 (20)
86 SL-3061232-TN SCREW M6 L=12 (25)
87 SL-6040692-TN SCREW M4 L=6 (5)
88 SM-1061401-SE SCREW M6 L=14 (2)
89 SM-3040652-TN SCREW M4 L=6 (4)
90 SM-6040502-TN SCREW (1)
91 401-22998 HANDLE (1)
92 NM -3060810-SF FLANGE NUT M6 (2)
93 SM-9062003-SC SCREW M6 L=20 ( 2)
94 401-28789 BRAND_MARK_LABEL_RX-6S (1)
95 CM -3002000-06 FINGER INJURY CAUTION LABEL (100) (1)
96 CM -3002000-05 FINGER INJURY CAUTION LABEL (75) (1)
97 400-38381 STEP SCREW (2)
98 400-77321 STAY ( 1)
99 SM-1040801-SN SCREW M4X0.7 L=8 (4)
100 NM-7040032-SC HEXAGONAL CAP NUT 3 M4X0.7 (2)
- -
