- - 13. COV ER CO MPO NENTS (6) 7 6 3 6 4 5 6 1 2 9 1 1 1 2 1 0 1 1 8 6 7 6 7 1 3 1 3 1 6 2 0 2 0 1 7 1 8 1 9 2 0 1 4 1 5 2 1 2 7 2 6 2 4 2 3 2 6 2 5 2 6 2 2 4 1 3 3 3 8 3 9 2 9 3 0 3 1 3 2 3 4 3 5 3 5 3 6 3 7 4 0 2 8 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28348 COVER_SWITCH_ASM 2
2 401-34198 SAFETY_COVER_SWITCH_BRACKET (1)
3 NM-3040520-SC FLANGE NUT M4 (2)
4 SL-6042042-TN SCREW M4 L=20 (2)
5 EA-9500B02-00 CABLE BAND (2)
6 400-02254 COVER OPEN SW CABLE ASM (1)
7 SL-3061232-TN SCREW M6 L=12 8
8 401-28352 SAFETY_COVER_STOPPER_ASM 4
9 400-92371 STOPPER_SUPPORT_C (1)
10 SL-6040892-TN SCREW M4 L=8 (2)
11 SM-4030601-SN SCREW M3 X 6 (1)
12 400-49671 COVER CUSHION (1)
13 SL-4030691-SC SCREW M3 L=6 1
14 HX-0067100-0A GROMMET 0.09
15 401-28272 STUD_BOLT_B 4
16 401-28274 COVER_FRAME_INSIDE 2
17 401-28275 COVER_FRAME_FRONT_L 1
18 401-28276 COVER_FRAME_FRONT_R 1
19 401-28277 COVER_FRAME_REAR_L 1
20 401-28278 COVER_FRAME_REAR_R 1
21 401-28279 COVER_FRAME_C 2
22 401-28280 COVER_FRAME_S 2
23 401-28281 COVER_FRAME_SUL 2
24 401-28375 COVER_FRAME_SUR 2
25 401-28283 COVER_FRAME_LF 2
26 401-28284 COVER_FRAME_RF 2
27 401-28301 FRAME_SUPPORT 4
28 HX-0066900-0A GROMMET 0.22
29 HX-0067100-0A GROMMET 0.39
30 EA-9500B00-00 CABLE BAND 2
31 EA-9500B02-00 CABLE BAND 22
32 HX-0029400-00 FIXED BASE 21
33 NM-3040520-SC FLANGE NUT M4 24
34 SL-3061232-TN SCREW M6 L=12 12
35 SL-4030691-SC SCREW M3 L=6 21
36 SL-6040892-TN SCREW M4 L=8 2
37 SL-6061292-TN SCREW M6 L=12 24
38 SM-3040652-TN SCREW M4 L=6 16
39
#01
HX-0005500-0E RUBBER BUSHING 1
40 HX-0029400-00 FIXED BASE 1
41 401-28336 COVER_CUC_ASM 1
42 SM-4040601-SC SCREW M4X0.7 L=6 (14)
43 NM-3040520-SC FLANGE NUT M4 (16)
44 401-28285 COVER_CUC (1)
45 HX-0029400-00 FIXED BASE (14)
46 EA-9500B00-00 CABLE BAND (28)
47 SL-6040892-TN SCREW M4 L=8 (8)
48 401-29141 DC FAN ASM (8)
- -
13.COVER COMPONENTS(6)
7
6
3
6
4
5
6
1 2
9
1 1
1 2
1 0
1 1
8
6 7
6 7
1 3
1 3
1 6
2 0
2 0
1 7
1 8
1 9
2 0
1 4 1 5
2 1
2 7
2 6
2 4
2 3
2 6
2 5
2 6
2 2
4 1
3 3
3 8
3 9
2 9
3 0
3 1
3 2
3 4
3 5
3 5
3 6
3 7
4 0
2 8
5 4
4 3
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 1
5 1
5 2
5 2
5 3
4 2
5 9
5 6
5 7
5 7
5 8
6 8
5 5
5 6
5 7
5 7
5 9
5 8
5 5
6 8
6 1
6 1
6 2
6 3
6 4
6 4
6 4
6 5
6 5
6 5
6 0
6 6 6 9
1 1
- -

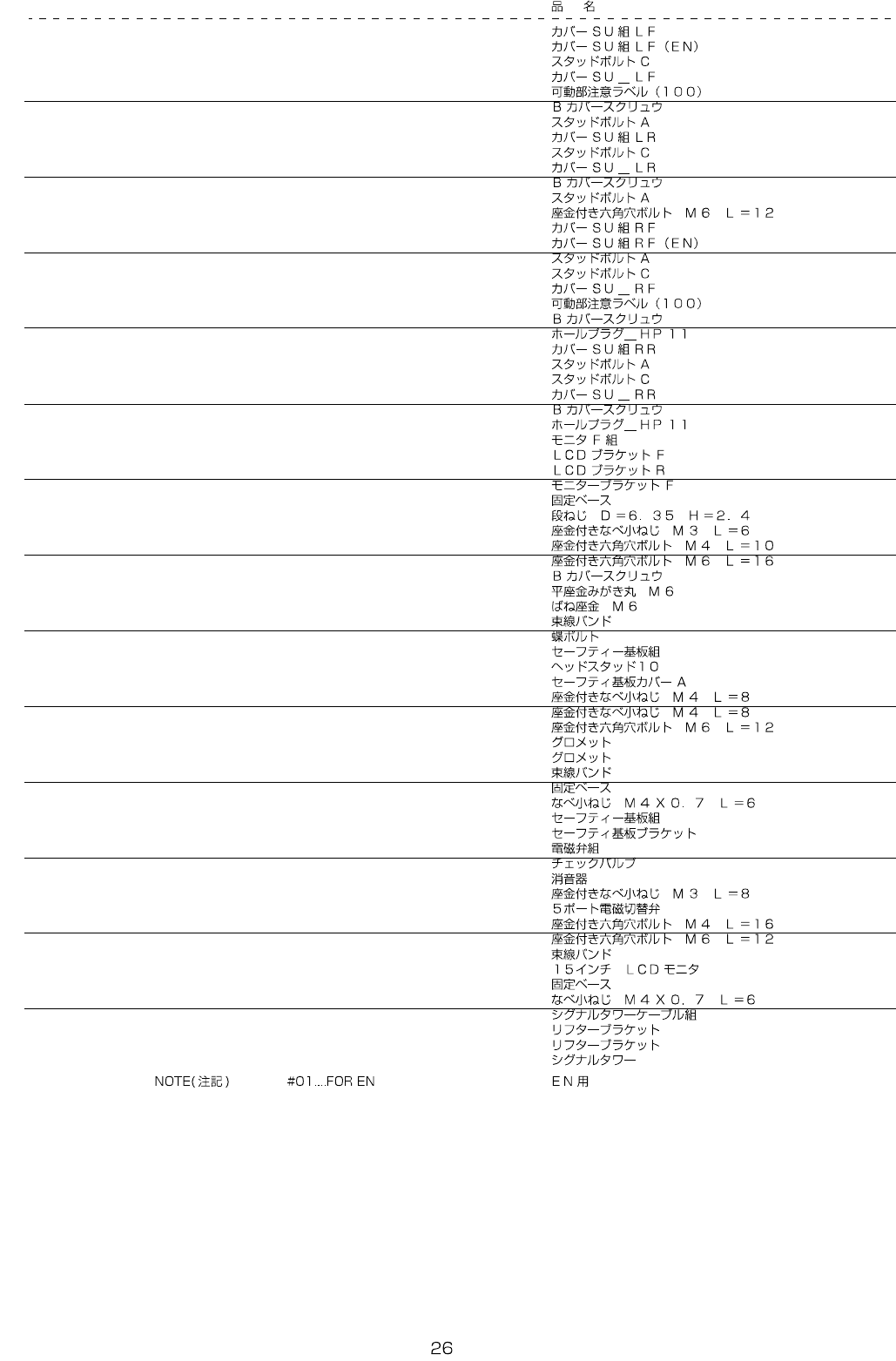

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28344 COVER_SU_ASM_LF 1
2
#01
401-28368 COVER_SU_ASM_LF(EN) 1
3 401-28273 STUD_BOLT_C (1)
4 401-28294 COVER_SU_LF (1)
5 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
6 400-81751 B_COVER_SCREW (15)
7 401-28271 STUD_BOLT_A (4)
8 401-28345 COVER_SU_ASM_LR 1
9 401-28273 STUD_BOLT_C (1)
10 401-28296 COVER_SU_LR (1)
11 400-81751 B_COVER_SCREW (15)
12 401-28271 STUD_BOLT_A (4)
13 SL-6061292-TN SCREW M6 L=12 4
14 401-28346 COVER_SU_ASM_RF 1
15
#01
401-28369 COVER_SU_ASM_RF(EN) 1
16 401-28271 STUD_BOLT_A (4)
17 401-28273 STUD_BOLT_C (1)
18 401-28295 COVER_SU_RF (1)
19 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
20 400-81751 B_COVER_SCREW (15)
21 400-93708 HOLE_PLUGS_HP11 (1)
22 401-28347 COVER_SU_ASM_RR 1
23 401-28271 STUD_BOLT_A (4)
24 401-28273 STUD_BOLT_C (1)
25 401-28297 COVER_SU_RR (1)
26 400-81751 B_COVER_SCREW (15)
27 400-93708 HOLE_PLUGS_HP11 (1)
28 401-28350 MONITOR_ASM_F 1
29 401-28308 LCD_BRACKET_F (1)
30 401-28309 LCD_BRACKET_R (1)
31 401-28313 MONITOR_BRACKET_F (1)
32 HX-0029400-00 FIXED BASE (2)
33 SD-0640246-SP SHOULDER SCREW D=6.35 H=2.4 (2)
34 SL-4030691-SC SCREW M3 L=6 (2)
35 SL-6041092-TN SCREW M4 L=10 (10)
36 SL-6061692-TN SCREW M6 L=16 (3)
37 400-81751 B_COVER_SCREW (2)
38 WP-0641601-SC WASHER M6 (1)
39 WS-0610002-KN SPRING WASHER M6 (1)
40 EA-9500B02-00 CABLE BAND (3)
41 161-87007 WING BOLT (1)
42 401-28351 PWB_SAFETY_ASM 1
43 400-46040 HEAD STUD 10 (6)
44 401-28303 SAFETY_PWB_COVER_A (1)
45 SL-4040881-SC SCREW M4 L=8 (6)
46 SL-4040891-SC SCREW M4X8 (2)
47 SL-6061292-TN SCREW M6 L=12 (2)
48 HX-0067100-0A GROMMET (0.07)
49 HX-0066900-0A GROMMET (0.14)
50 EA-9500B02-00 CABLE BAND (2)
51 HX-0029400-00 FIXED BASE (2)
52 SM-4040601-SC SCREW M4X0.7 L=6 (2)
53 401-28872 SAFETY PCB ASM (1)
54 401-28302 SAFETY_PWB_BRACKET (1)
55 401-28353 SOLENOID_ASM 2
56 400-46535 CHECK VALVE (1)
57 PX-0505010-00 SILENCER (2)
58 SL-4030891-SC SCREW M3 L=8 (2)
59 PV-1505380-00 5-PORT SOLENOID VALVE (1)
60 SL-6041692-TN SCREW M4 L=16 4
61 SL-6061292-TN SCREW M6 L=12 4
62 EA-9500B02-00 CABLE BAND 4
63 401-58158 15INCH LCD MONITOR 1
64 HX-0029400-00 FIXED BASE 3
65 SM-4040601-SC SCREW M4X0.7 L=6 3
66 401-29009 SIGNAL TOWER CABLE ASM 1
67 401-28158 LIFTER_BRACKET 2
68 401-28158 LIFTER_BRACKET 2
69
#01
400-48037 SIGNAL TOWER 1
